- CIRCUIT DIAGRAMS

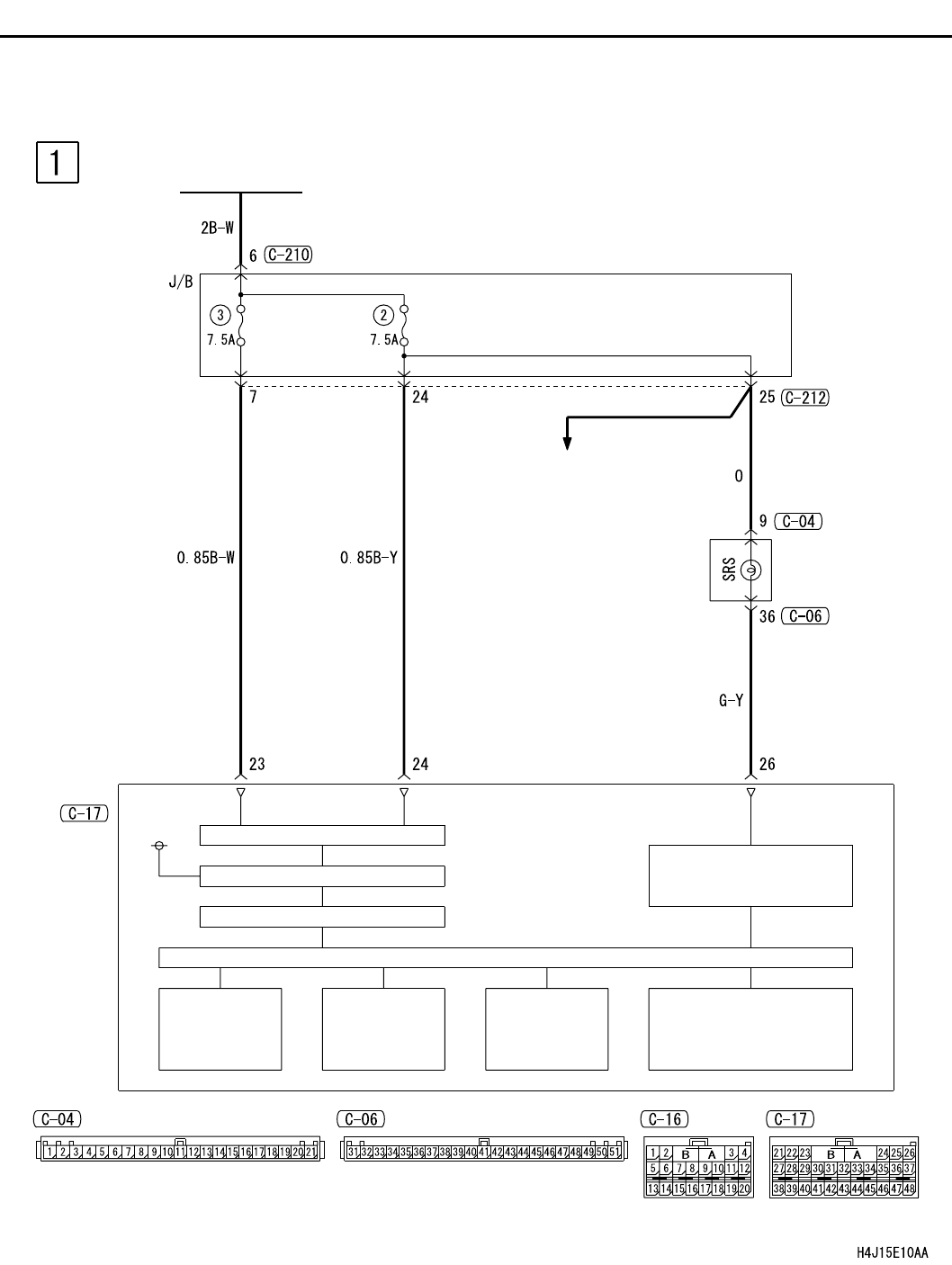

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) <LHD>
CIRCUIT DIAGRAMS
90-298
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) <LHD>
M1901009700877
IGNITION
SWITCH (IG1)
COMBINATION
METER
·FRONT FOG LAMP
·HEADLAMP
·HEADLAMP LEVELING SYSTEM
·HEADLAMP WASHER
·REAR FOG LAMP
·REAR WIPER AND
WASHER
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP AND
HAZARD WARNING LAMP
·WINDSHIELD WIPER
AND WASHER
POWER SOURCE
WARNING LAMP
DRIVE CIRCUIT
D.C.-D.C. CONVERTER
BACK-UP CAPACITOR
MICRO COMPUTER
FRONT
AIR BAG
ANALOGUE
G SENSOR
EEP ROM
FRONT AIR
BAG SAFING
G SENSOR
SIDE AIR BAG,
CARTAIN AIR BAG
SAFING G SENSOR
SRS-ECU
