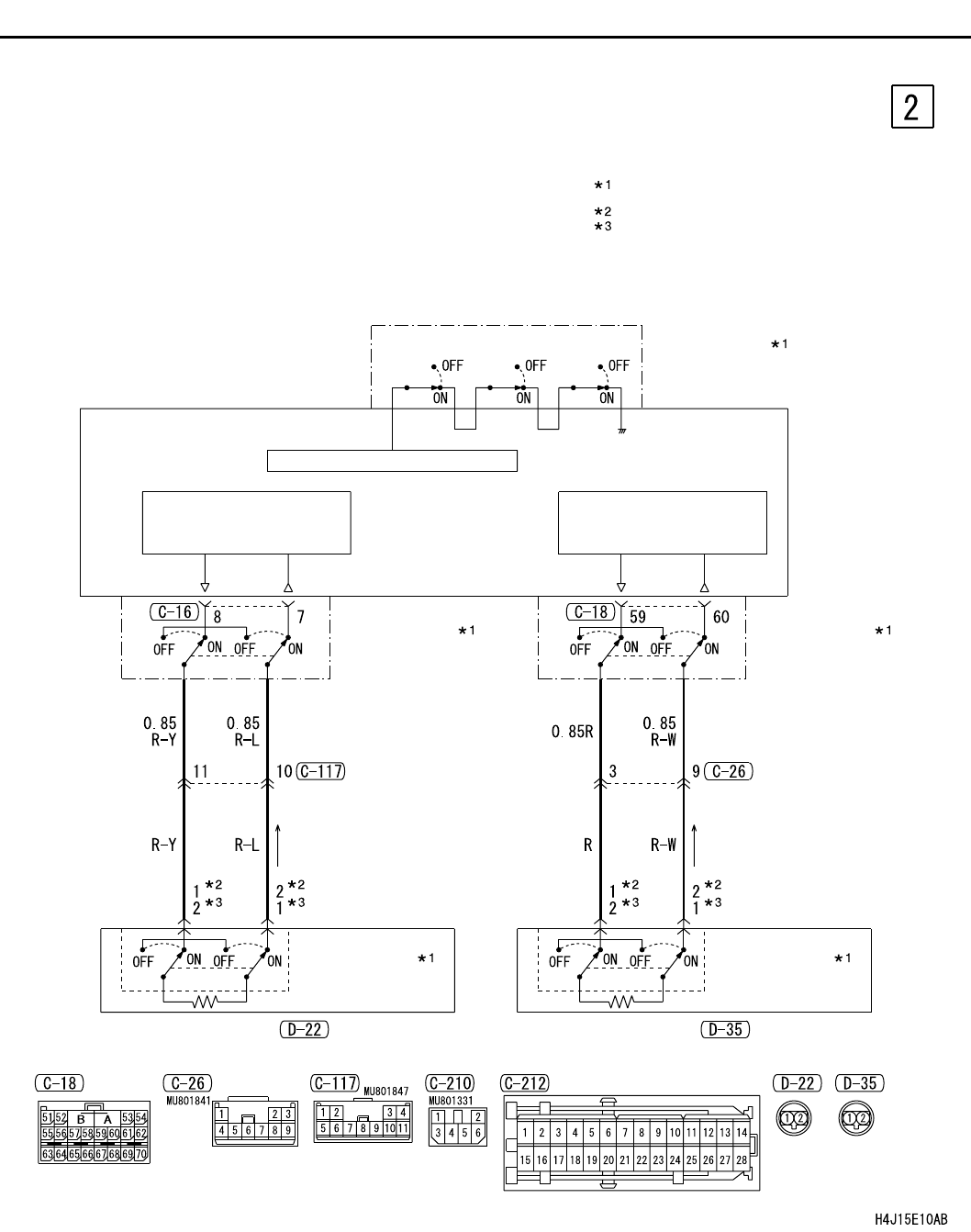

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) <LHD>
CIRCUIT DIAGRAMS
90-299
NOTE
: CONNECTOR COUPLED: ON
CONNECTOR UNCOUPLED: OFF
: SEDAN
: WAGON
SEAT BELT
PRE-TENSIONER
DRIVE CIRCUIT
SEAT BELT
PRE-TENSIONER
DRIVE CIRCUIT
MICRO COMPUTER
CONNECTOR
LOCK SWITCH
CONNECTOR
LOCK SWITCH
SEAT BELT
PRE-TENSIONER (LH)
CONNECTOR
LOCK SWITCH
CONNECTOR
LOCK SWITCH
SEAT BELT
PRE-TENSIONER (RH)
CONNECTOR
LOCK SWITCH
SRS-ECU
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet
