Wiring Circuit Diagrams

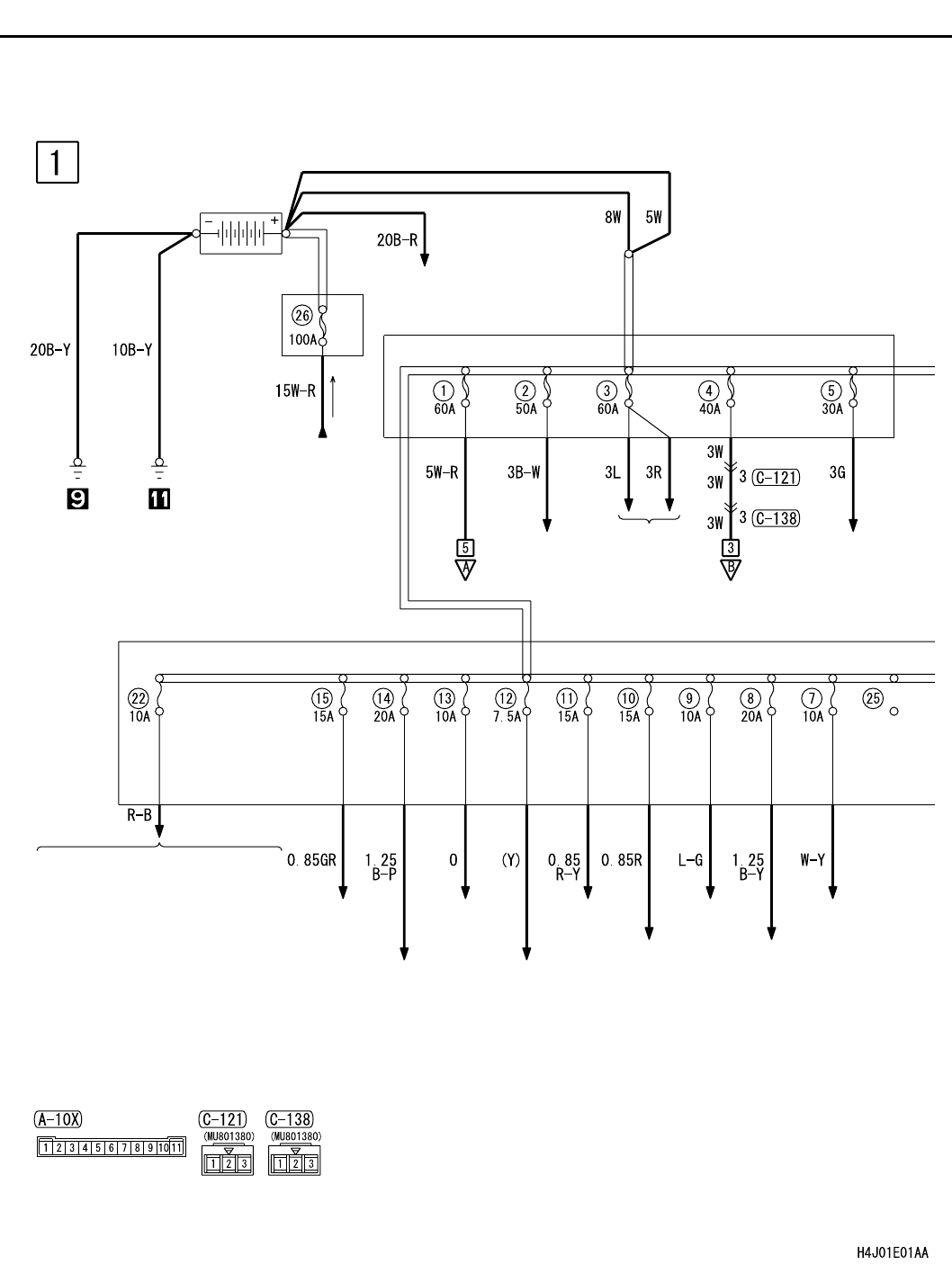

POWER DISTRIBUTION SYSTEM <RHD>
CIRCUIT DIAGRAMS
90-30
POWER DISTRIBUTION SYSTEM <RHD>
M1901000400686
·CENTRAL DOOR
LOCKING SYSTEM
·CLOCK
·FRONT FOG LAMP
·FUEL WARNING
LAMP
·HEADLAMP
·HEADLAMP
LEVELING SYSTEM
·INVECS-II 4A/T
·KEY REMINDER
BUZZER
·METER AND GAUGE
·POWER WINDOWS
·REAR FOG LAMP
·REAR WIPER AND
WASHER
·ROOM LAMP AND
LUGGAGE COM-
PARTMENT LAMP
·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP
·SPARE CONNECTOR
(FOR AUDIO)
·TAIL LAMP, POSITION
LAMP, LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD WIPER
AND WASHER
ENGINE
CONTROL
SYSTEM
INVECS-II
4A/T
TURN-SIGNAL
LAMP AND
HAZARD
WARNING LAMP
CHARGING
SYSTEM
ACCESSORY
SOCKET
·ABS
·INVECS-II
4A/T
·STOP LAMP
·HEATER
·MANUAL AIR
CONDITIONER
·COOLING
SYSTEM
·ENGINE
CONTROL
SYSTEM
·IGNITION SYSTEM
·IMMOBILIZER
SYSTEM
·INVECS-II 4A/T
HORN
·COOLING
SYSTEM
·MANUAL AIR
CONDITIONER
ABS
POWER
WINDOWS
CHARGING
SYSTEM
STARTING
SYSTEM
BATTERY
RELAY
BOX
FUSIBLE
LINK
RELAY
BOX
