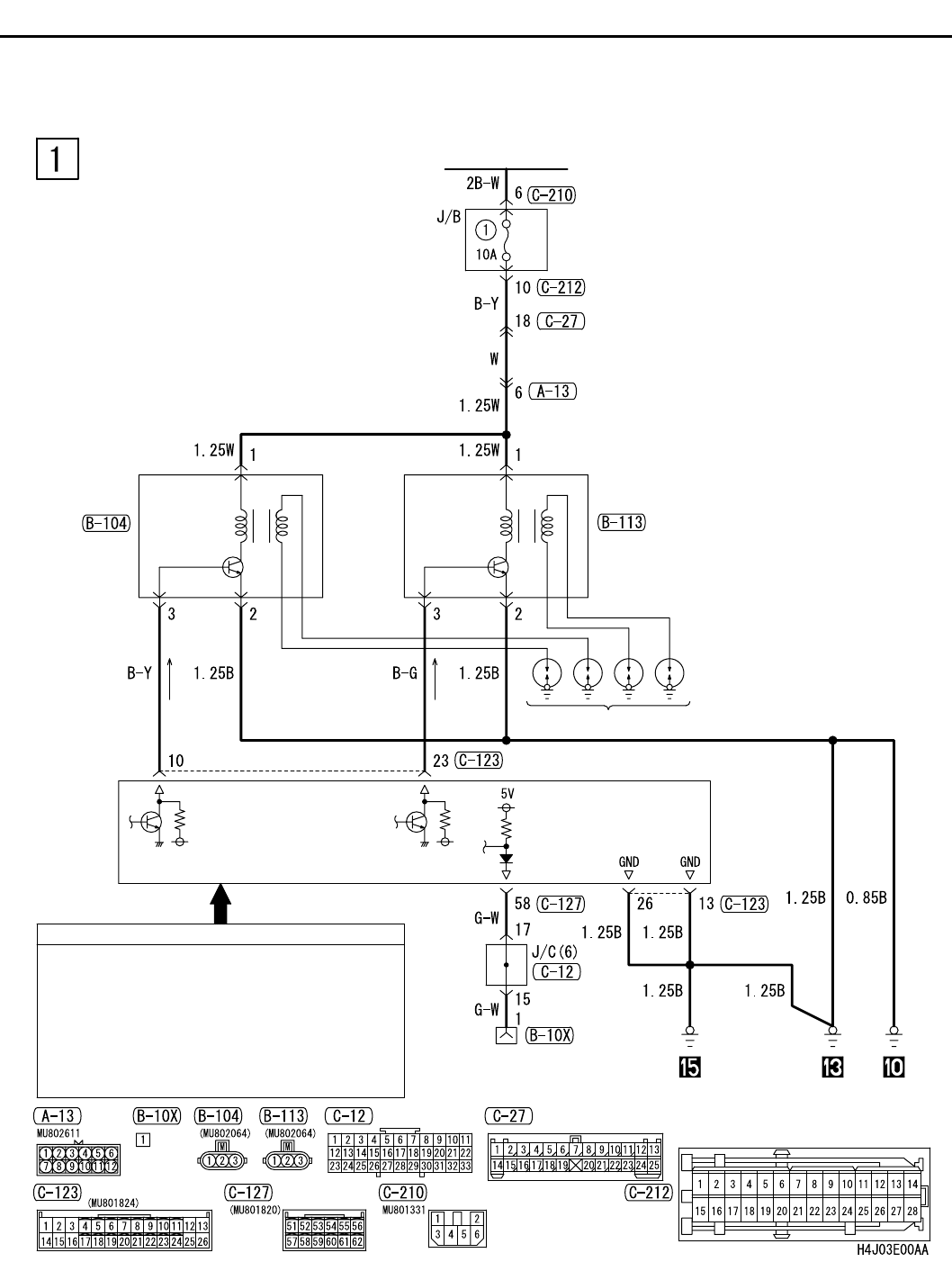

IGNITION SYSTEM <4G1-M/T (LHD)>
CIRCUIT DIAGRAMS
90-38
IGNITION SYSTEM <4G1-M/T (LHD)>
M1901000601218
IGNITION
SWITCH (IG1)
IGNITION
COIL (1)
IGNITION
COIL (2)
SPARK PLUG
ENGINE-ECU
ENGINE SPEED
DETECTION
CONNECTOR
INPUT SIGNAL
·ATMOSPHERIC
PRESSURE SENSOR
·CAMSHAFT
POSITION SENSOR
·ENGINE CRANK
ANGLE SENSOR
·WATER TEMPERATURE
SENSOR UNIT
·ENGINE CONTROL
DETONATION SENSOR
·FUEL PRESSURE SENSOR
·IGNITION SWITCH (ST)
·INTAKE AIR TEMPERATURE
SENSOR
·ENGINE CONTROL
OXYGEN SENSOR
·VEHICLE SPEED SENSOR
·THROTTLE BODY
THROTTLE SENSOR
