- CIRCUIT DIAGRAMS
J/B
CIRCUIT DIAGRAMS
90-4

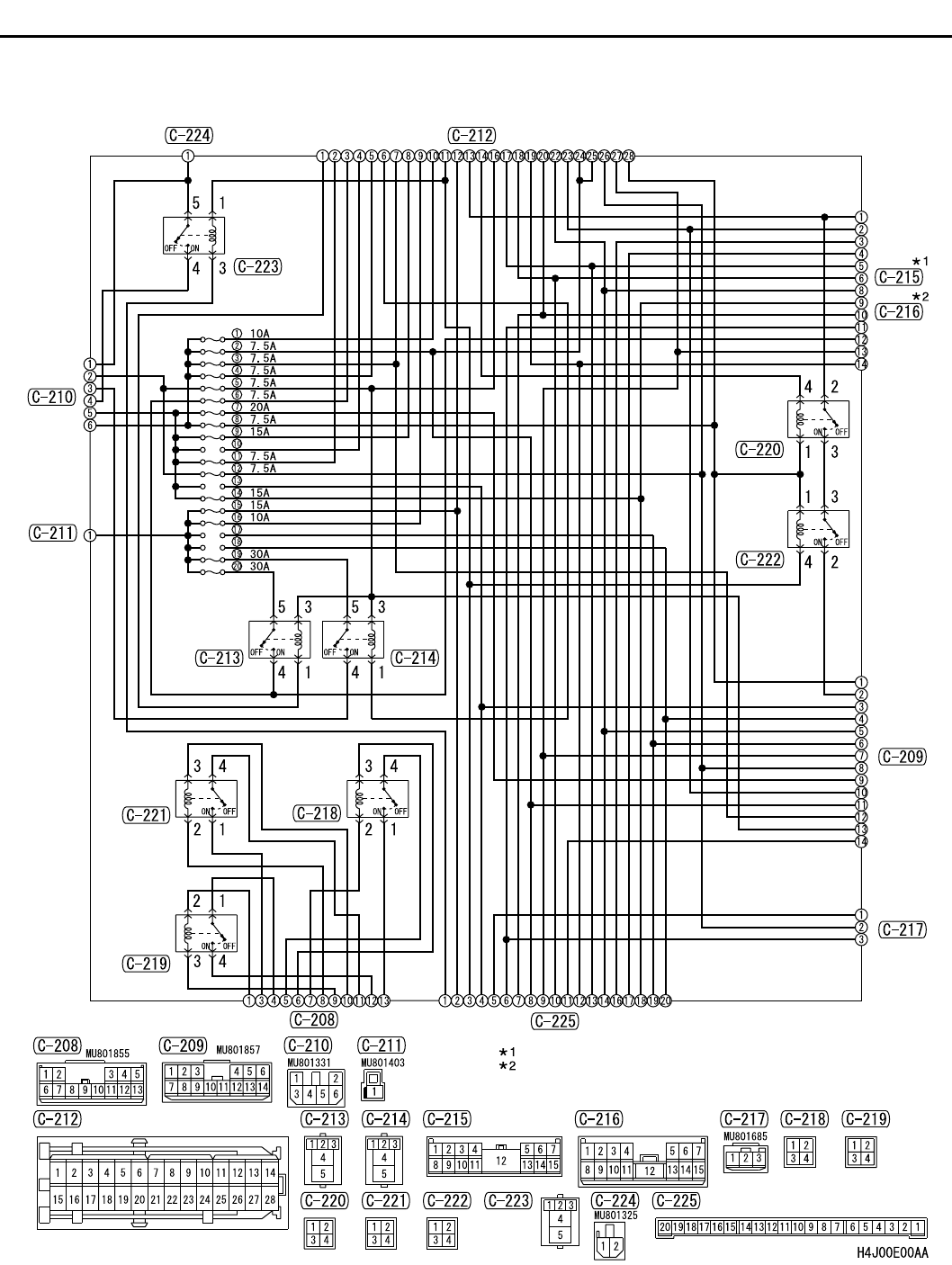

J/B
M1901000200660
: LHD
: RHD
CONNECTOR NUMBERS ARE KEYED TO THE CONFIGIRATION
DIAGRAM (DASH PANEL) AND EACH CIRCUIT DIAGRAM.
POWER
WINDOW
RELAY
FUEL
PUMP
RELAY (2)
FUEL
PUMP
RELAY (1)
REAR
WINDOW
DEFOGGER
RELAY
BLOWER
RELAY
REAR FOG
LAMP
RELAY
J/B SIDE
NOTE
·
·
·
HEATED
SEAT RELAY
ACCESSORY
SOCKET
RELAY
