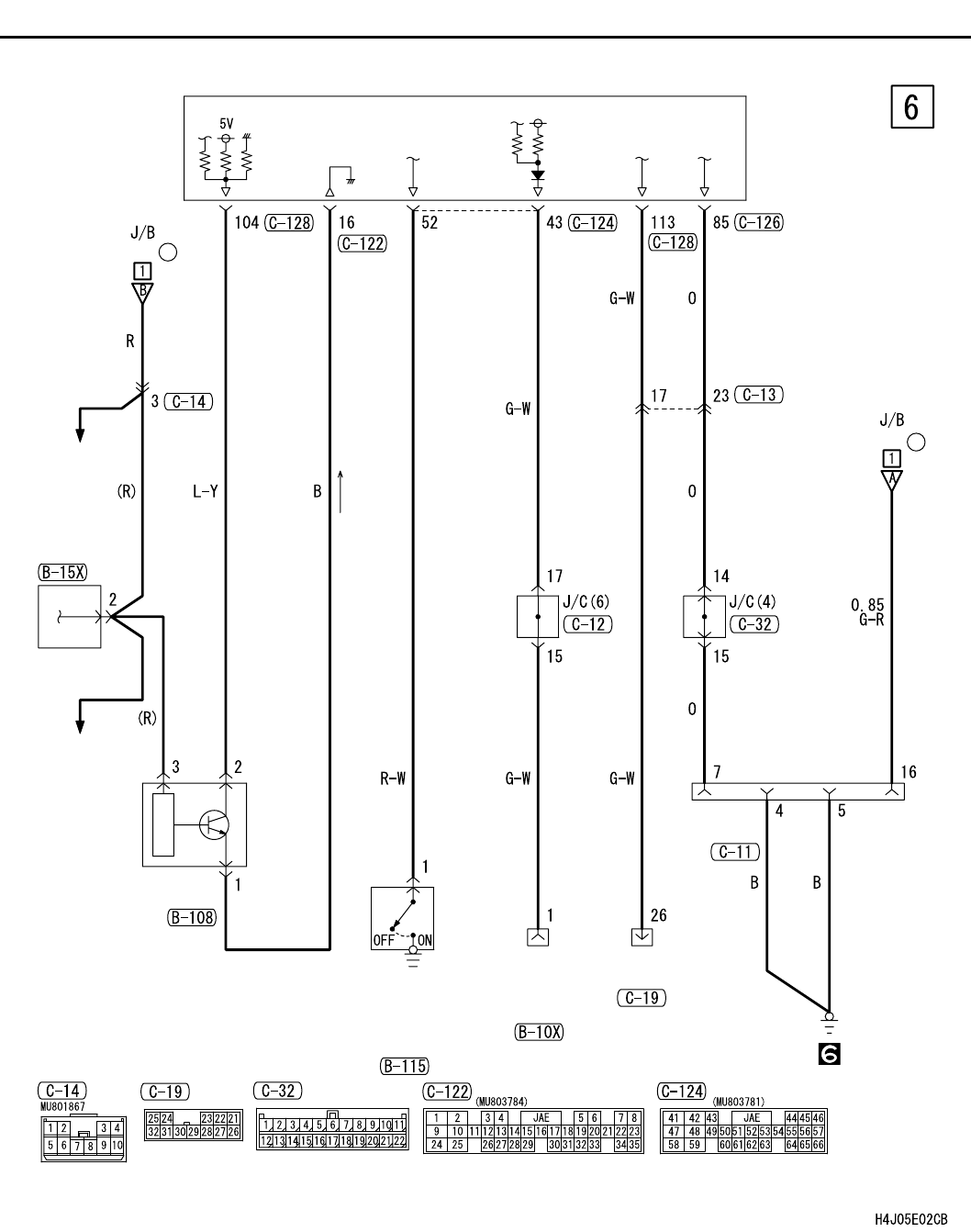

ENGINE CONTROL SYSTEM <4G1-A/T (LHD)>
CIRCUIT DIAGRAMS
90-63
FRONT
SIDE
ENGINE-A/T-
ECU
(FUSE )
3
(FUSE )
15
DIAGNOSIS
CONNECTOR
DIAGNOSIS
CONNECTOR
POWER
STEERING
FLUID
PRESSURE
SWITCH
ENGINE
SPEED
DETECTION
CONNECTOR
OUTPUT SHAFT
SPEED SENSOR
A/T
CONTROL
RELAY
INVECS-II
4A/T
INVECS-II
4A/T
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet
