- CIRCUIT DIAGRAMS

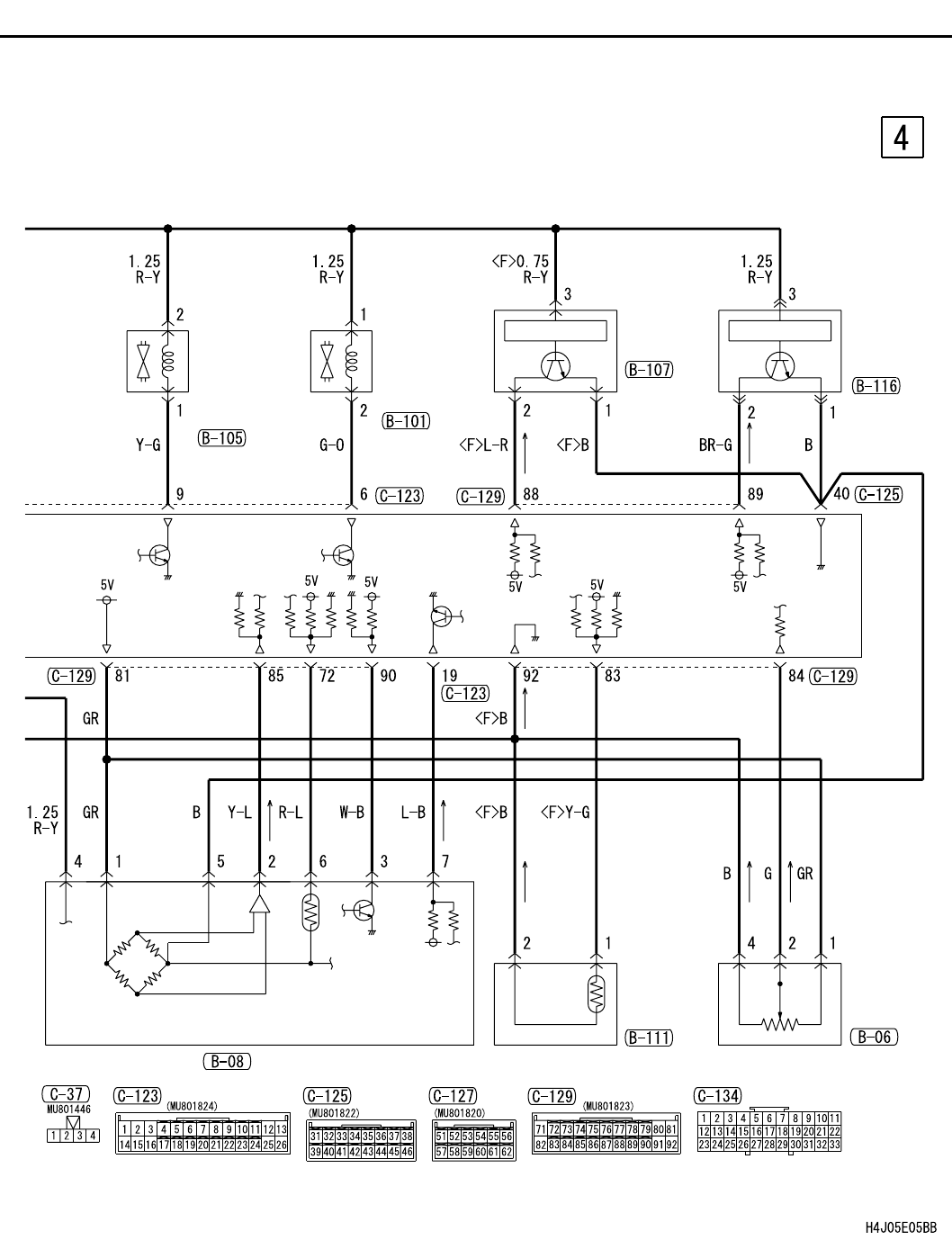

ENGINE CONTROL SYSTEM <4G6 (RHD)>
CIRCUIT DIAGRAMS
90-79
WATER
TEMPERA-
TURE
SENSOR
THROTTLE
BODY
THROTTLE
SENSOR
EMISSION
SOLENOID
VALVE
(PURGE
CONTROL
SYSTEM)
EMISSION
SOLENOID
VALVE
(EGR
SYSTEM)
CAMSHAFT
POSITION
SENSOR
ENGINE
CRANK
ANGLE
SENSOR
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet
INTAKE AIR
TEMPERATURE
SEMSOR
AIR
FLOW
SENSOR
BAROMETRIC
PRESSURE
SENSOR
AIR CLEANER
AIR FLOW SENSOR
