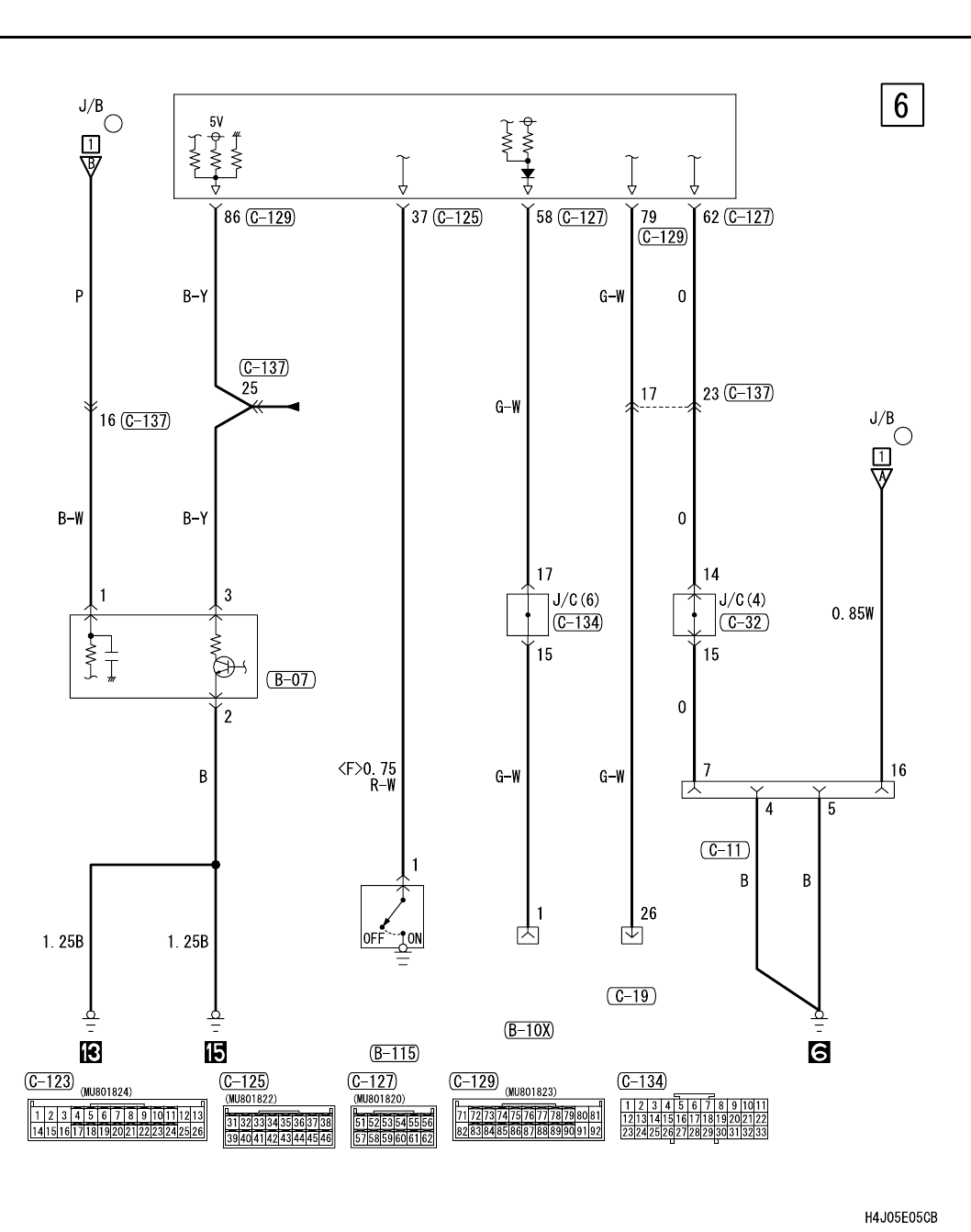

ENGINE CONTROL SYSTEM <4G6 (RHD)>
CIRCUIT DIAGRAMS
90-81
ENGINE-
ECU
(FUSE )
2
(FUSE )
15
DIAGNOSIS
CONNECTOR
DIAGNOSIS
CONNECTOR
POWER
STEERING
FLUID PRESSURE
SWITCH
ENGINE
SPEED
DETECTION
CONNECTOR
VEHICLE
SPEED
SENSOR
METER AND
GAUGE
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet
