Table Of Contents

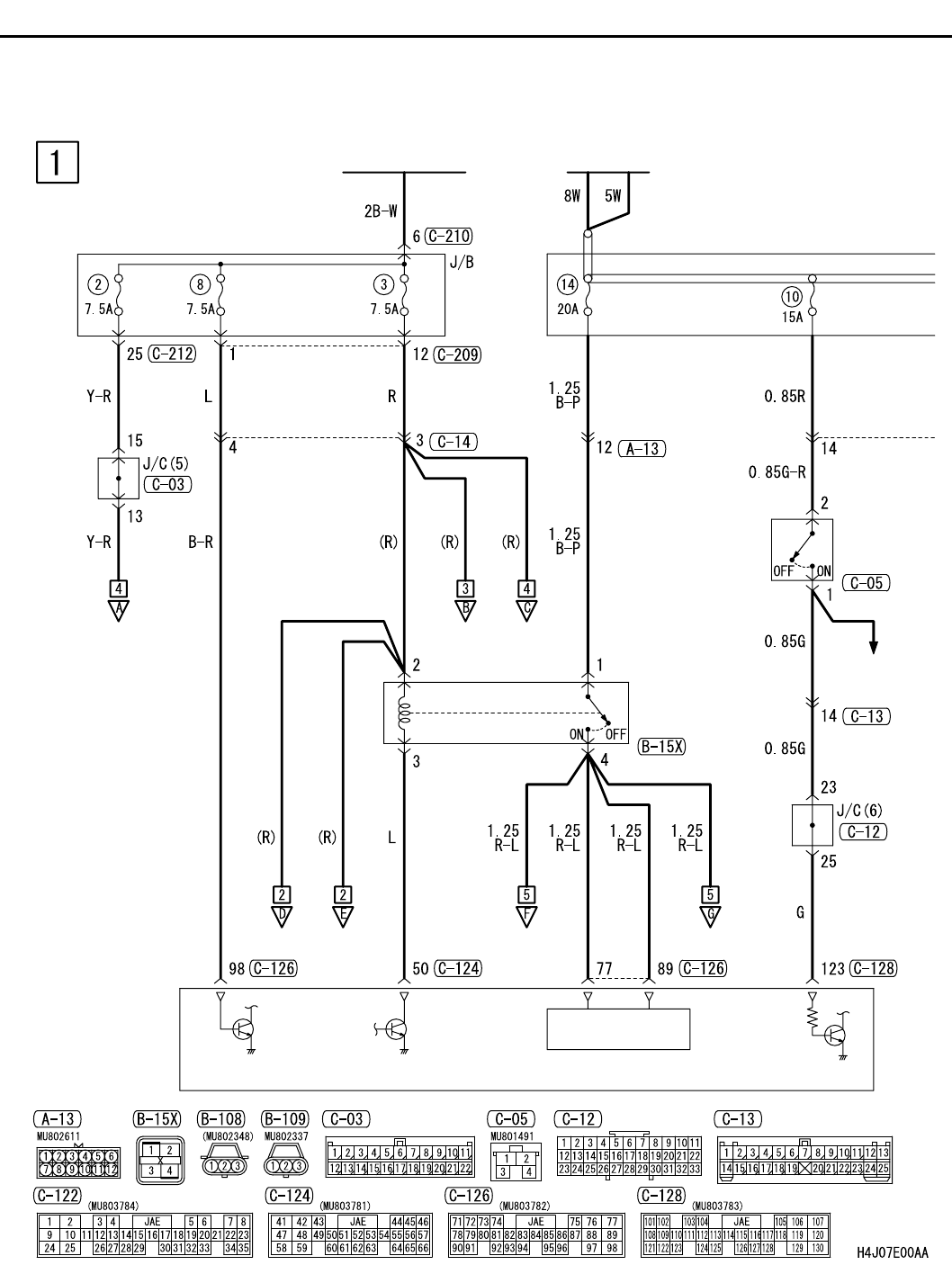

INVECS-II 4A/T <LHD>
CIRCUIT DIAGRAMS
90-84
INVECS-II 4A/T <LHD>
M1901016200830
IGNITION
SWITCH (IG1)
BATTERY
A/T
CONTROL
RELAY
STOP
LAMP
SWITCH
ENGINE-
A/T-ECU
SOLENOID VALVE
POWER SOURCE
STOP LAMP
