INVECS-II 4A/T <RHD>
CIRCUIT DIAGRAMS
90-92

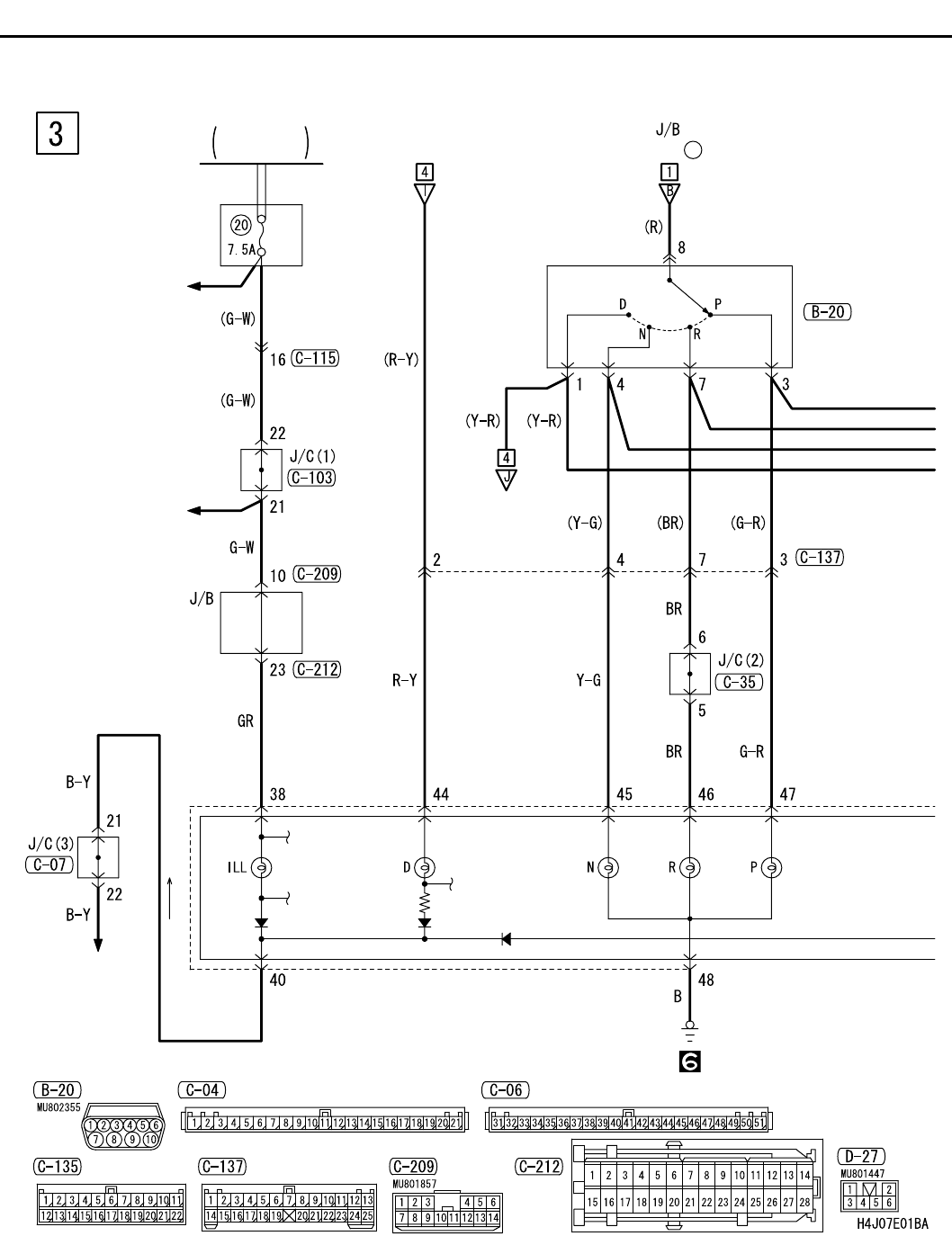

INVECS-II 4A/T <RHD> (CONTINUED)
RELAY
BOX
FUSE
3
()
SHIFT
SWITCH
ASSEMBLY
TAIL LAMP
RELAY
RHEOSTAT
INHIBITOR
SWITCH
FRONT-ECU
TAIL LAMP, POSITION
LAMP, LICENCE
PLATE LAMP AND
LIGHTING MONITOR
BUZZER
TAIL LAMP, POSITION
LAMP, LICENCE
PLATE LAMP AND
LIGHTING MONITOR
BUZZER
