DASH PANEL
CONFIGURATION DIAGRAMS
80-18

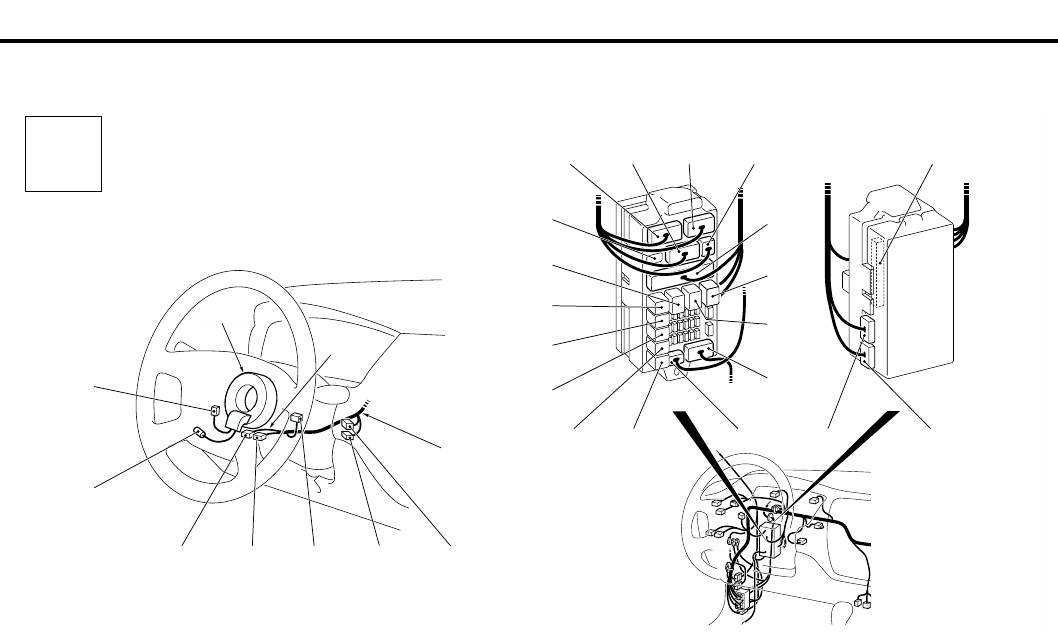

DASH PANEL <LHD> (CONTINUED)
AC304413
Connector
symbol
-201
thru
-227
C
STEERING COLUMN
C-207
C-206
C-201C-202C-203C-203C-204C-205
Instrument panel
wiring harness
Clock spring
Y
AB
(Front view)
(Rear view)
C-208 C-209 C-210 C-211
C-212
C-213
C-214
C-215
C-217C-218C-219
C-220
C-221
C-222
C-223
C-224
C-225
C-226C-227
JUNCTION BLOCK
C-201 (6) Ignition switch
C-202 (7) Key reminder switch
C-203 (10) Column switch
C-204 (6) Clock spring
C-205 (4-Y) Clock spring
C-206 (1) Horn switch
C-207 (2) Air bag module (squib) <Driver’s side>
C-208 (13) Instrument panel wiring harness and J/B
combination
C-209 (14) Instrument panel wiring harness and J/B
combination
C-210 (6) Instrument panel wiring harness and J/B
combination
C-211 (1-B) Instrument panel wiring harness and J/B
combination
C-212 (28) Instrument panel wiring harness and J/B
combination
C-213 (5) Rear window defogger relay
C-214 (5) Blower relay
C-215 (15) Floor wiring harness (LH) and J/B
combination
C-217 (3) Roof wiring harness and J/B combination
C-218 (4) Rear fog lamp relay
C-219 (4) Accessory socket relay
C-220 (4) Fuel pump relay (2)
C-221 (4) Heated seat relay
C-222 (4) Fuel pump relay (1)
C-223 (5) Power window relay
C-224 (2) No connection
C-225 (20) ETACS-ECU
C-226 (24) ETACS-ECU
C-227 (24-GR) ETACS-ECU
