4. INSTALLATION AND UNINSTALLATION

4.1.4 Upgrading the USB drivers

In Windows Vista

or Windows

7, if MELSOFT incompatible with each operating

system has been installed when MELSOFT compatible with each operating system is

installed, upgrading the USB drivers is required.

The USB driver has the following two types:

x USB driver for CPU module connection

x USB driver for GOT connection (used for the GOT transparent mode.)

(1) Procedure for upgrading the USB driver for CPU module connection

(a) Check method

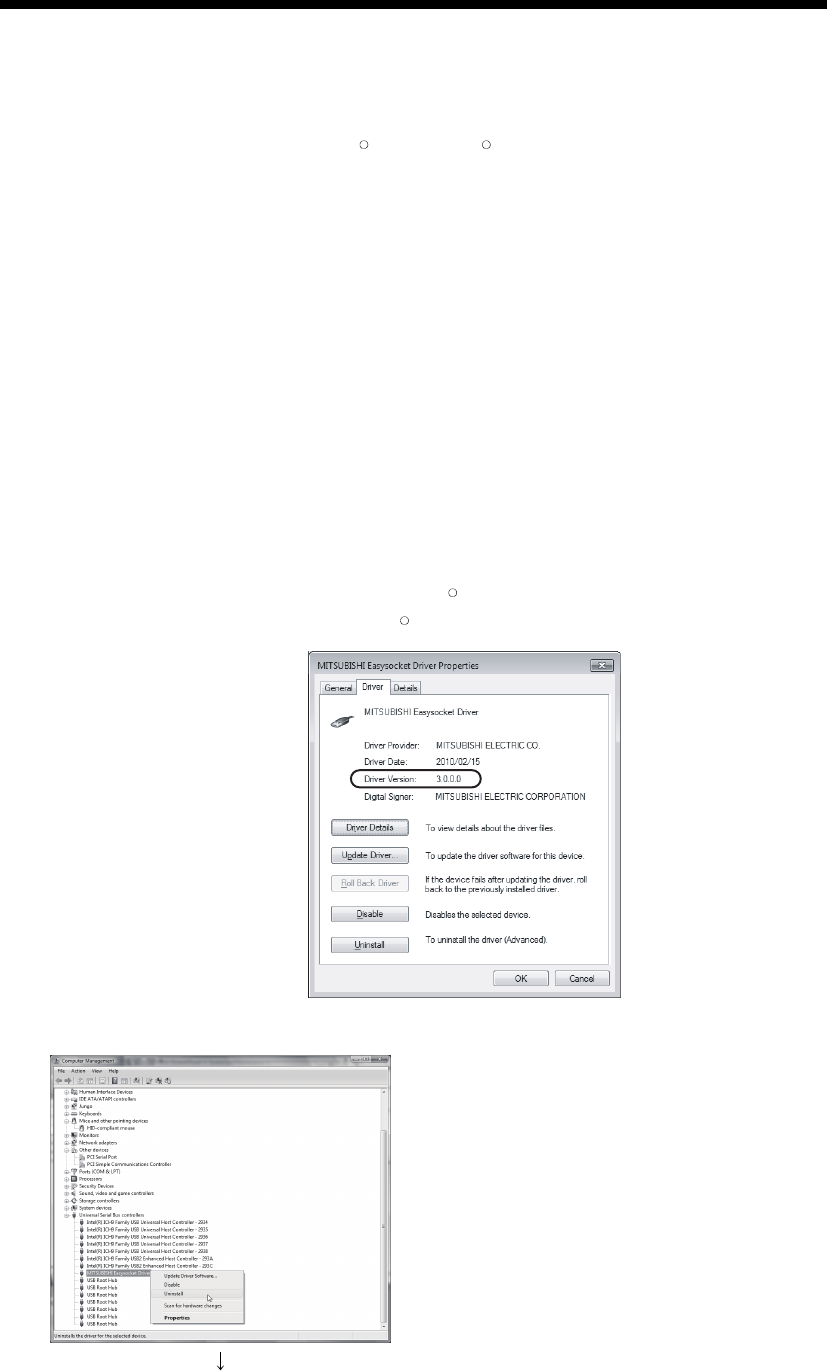

Whether upgrade of the USB driver is required or not can be checked by

the USB driver version.

Start the Windows Device Manager while the personal computer is

connected to the CPU module with USB, right-click "MITSUBISHI

Easysocket Driver" and select "Properties".

Update is necessary if the version shown in the<<Driver>> tab of the

properties screen is the following.

x Windows Vista

: "2.0.0.0" or earlier

x Windows

7 : "3.0.0.0" or earlier

(b) Upgrade procedure

1) Connect the personal computer to the CPU module with

USB cable.

2) Start the Windows Device Manager, right-click

"MITSUBISHI Easysocket Driver", and select "Uninstall".

(To the next page)
