2.4 Camera Housing and Connectors of the MOBOTIX M22M
The MOBOTIX M22M consists of two main components, the camera itself and the
SecureFlex wall mount. Like the M12/D12 models, the MOBOTIX M22M also features
an integrated microphone and a speaker.
2.4.1 Connectors
• 10BaseT (Ethernet network)
• USB connector (MOBOTIX expansion modules)
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [e-mail]
25/76
M22M Camera Manual Part 1

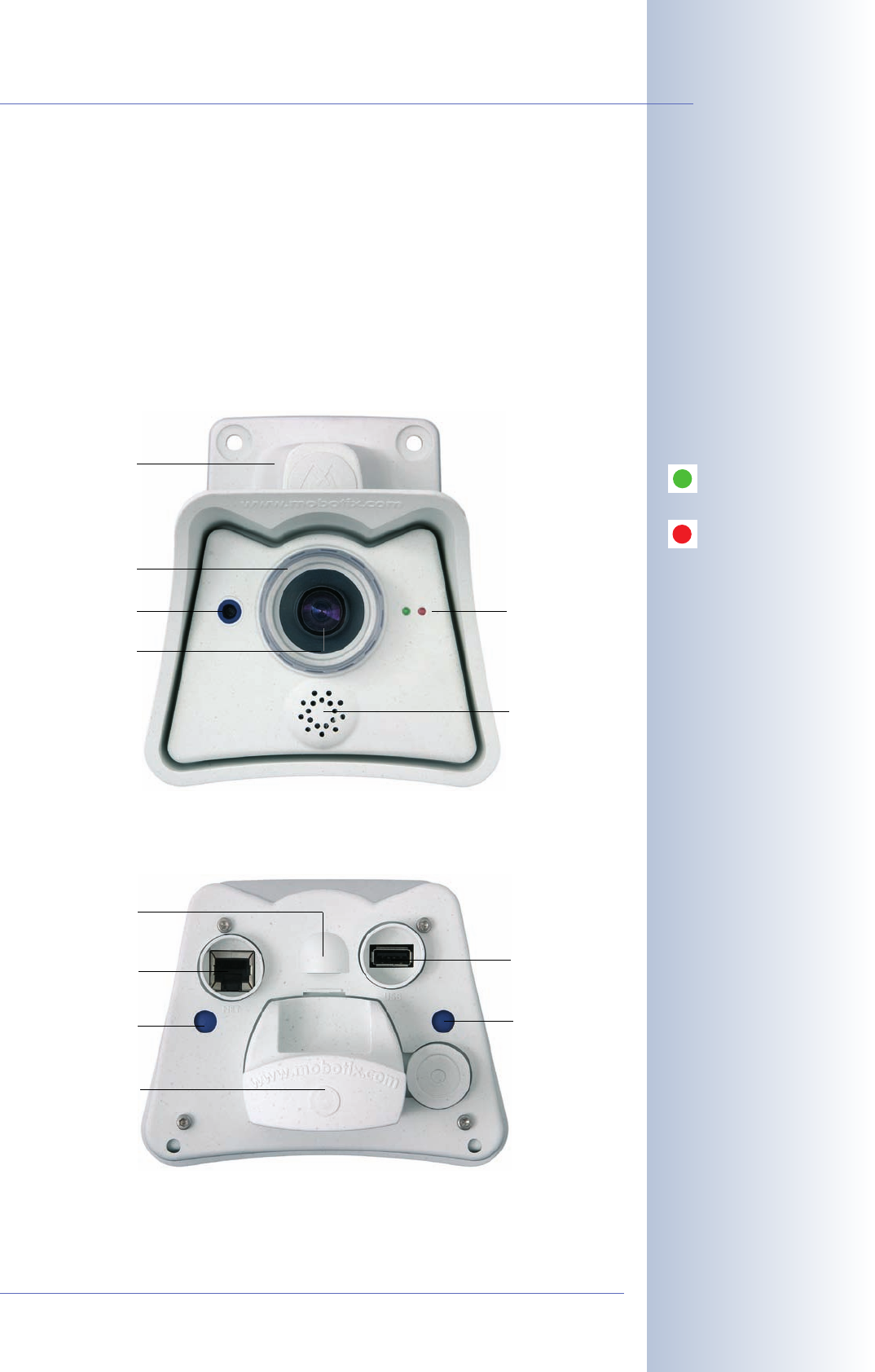

LED signals:
Power / Ethernet
Event / Recording
CF cards will be suppor-
ted in a future software
update
Wall mount
Lens cover
Microphone
Ethernet 10/100 (LAN)
"L" key
2 CF slots
(only installed at
the factory)
"R" key
USB (MOBOTIX
extension
modules)
Speaker
2 LEDs
Vent
Lens
