2.5 Mounting Options and Positioning
Tilting (ceiling mount)
Tilting (wall mount)
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [e-mail]
26/76
M22M Camera Manual Part 1

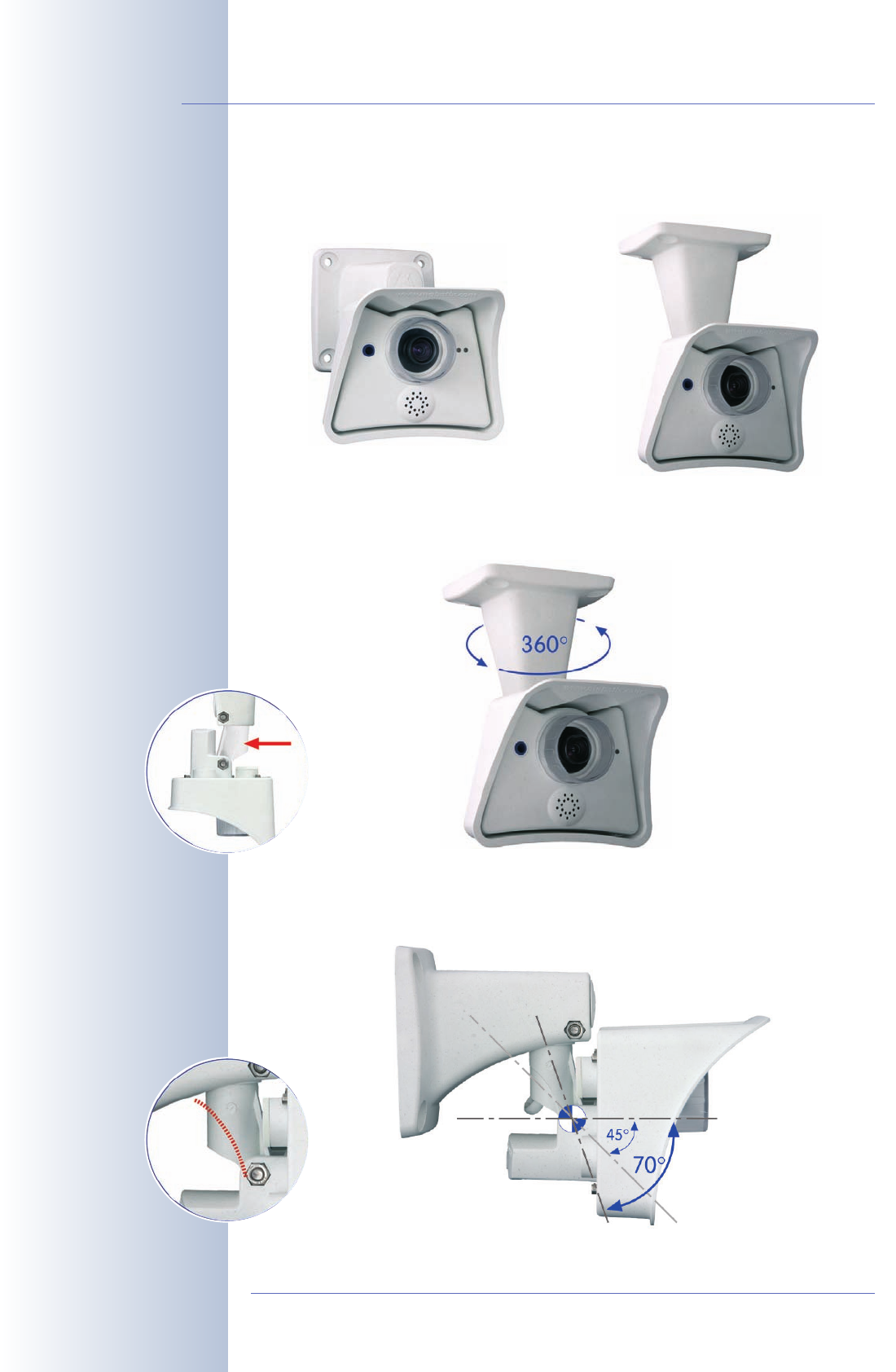

Mounting to a ceiling or
wall
To increase the tilt of the
camera, the vertical
tilt joint can be
turned around
180 degrees
(see red
arrow!)
To increase the tilt to 70°
when mounting the
camera to a wall,
the vertical tilt
joint can be
shortened (see
dotted red
line!)
Mounting to a wall
Mounting to a ceiling
• horizontally: 360°
• vertically: 90°
Foot
• horizontally: 180°
• vertically: 70°
