Using Uninterruptible Power Supplies (UPS)
In order to maintain a continuous power supply even when utility power fails, you should
install an uninterruptible power supply (UPS). These devices also provide full protection
against electrical surges and voltage fluctuations and thus enhance the reliability of the
system as a whole.
When using a more powerful 19" rack-mounted UPS, you can also protect all other network
components (e.g. switches, routers, PoE switches, etc.).
Since MOBOTIX cameras do not require any heating (even during winter), the average
power consumption of approximately 3 watts is very low. This in turn means that you can
centralize the UPS-protected power supply by injecting power into the network cables
(max. 100 m). This kind of protected power supply can be used either with MOBOTIX
PoE products (MX-NPA-PoE + Universal Power Supply) or with PoE-compliant switches
according to IEEE 802.3af.
Preparing The Camera Connections, Wall Outlets2.1.�
Once the camera position, the position of the cable outlets and the method of power sup-
ply have been decided upon, the cabling can be installed. Before mounting the MOBOTIX
Q24M, you should make sure that the network connections have been properly tested to
ensure that the camera functions correctly when it is installed.
MOBOTIX NPR or
PoE switch
PC/Server
RAID
UPS
UPS not only protect
the camera against
power failures, they also
protect all other con-
nected network devices
against damage from
voltage peaks and lows

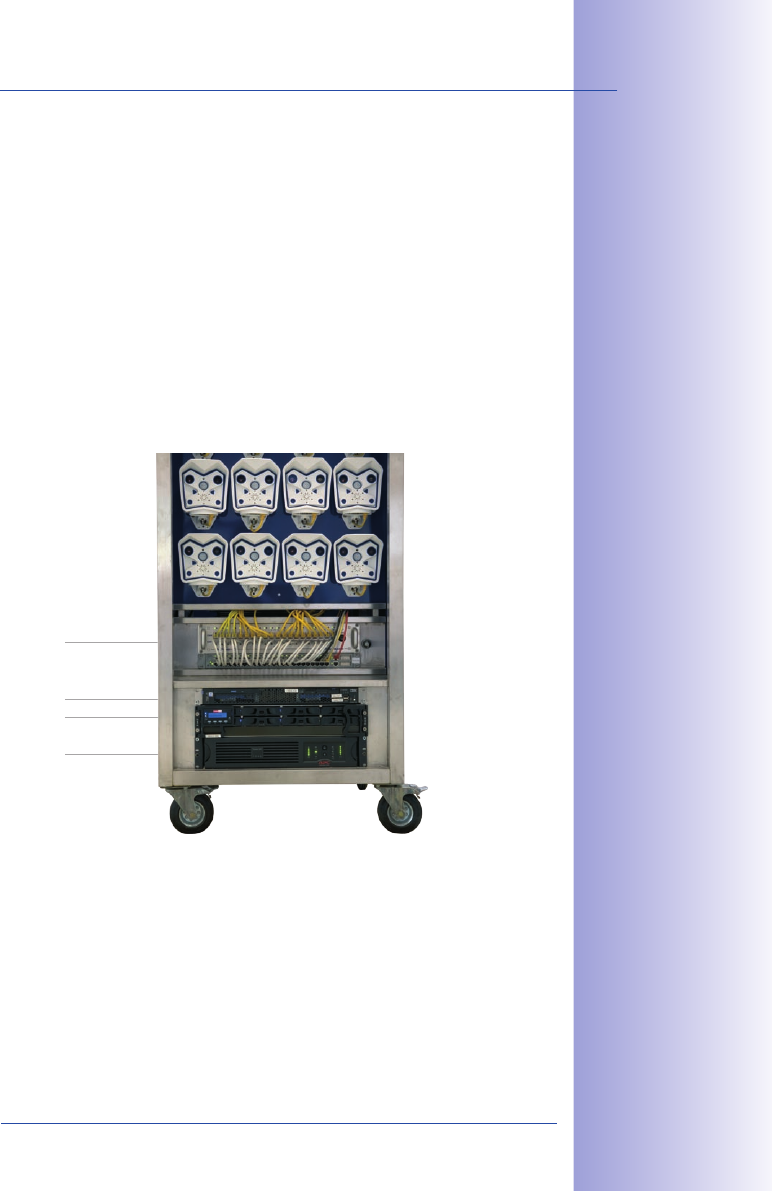

19" system with UPS
Camera power supply
using PoE enables cen-
tralized UPS via network
(increased security)
