Q24M Camera Manual: INSTALLATION
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [e-mail]
Mounting The Camera Without Accessories2.4
Mounting Instructions2.4.1
The Q24M, being an overview camera, is primarily designed for installation on walls
or ceilings. Direct installation of the camera without any accessories is, in general, always
possible, however - due to elevation of the rear casing of the camera where connections
and their holders are - a flush-mounted wall outlet should be installed first.
The drilling template also includes a blue circle marking the minimum size and position
of this wall outlet, in addition to the drilling holes. To guarantee maximum coverage of
the room by the camera, the Q24M should be positioned on the wall or ceiling as close
to the middle of the room as possible.

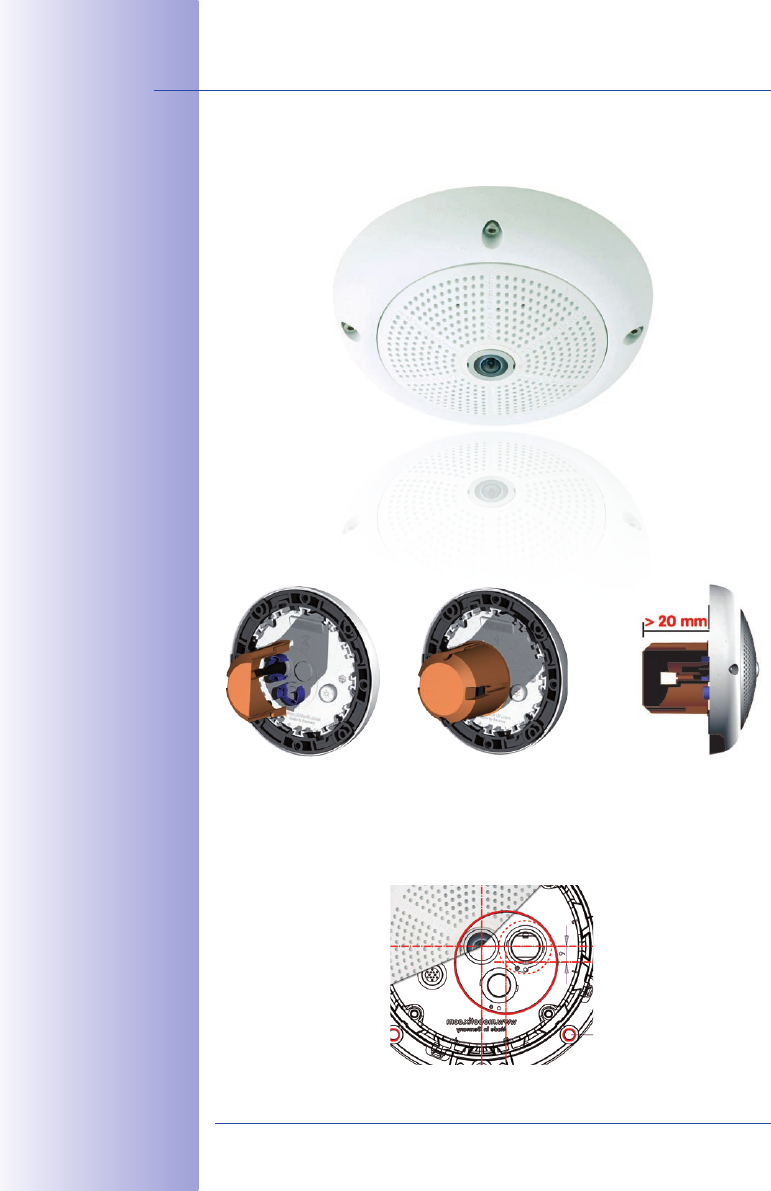

Installation over a
standard ush-mounted
wall outlet (minimum
installation depth 20 mm)
