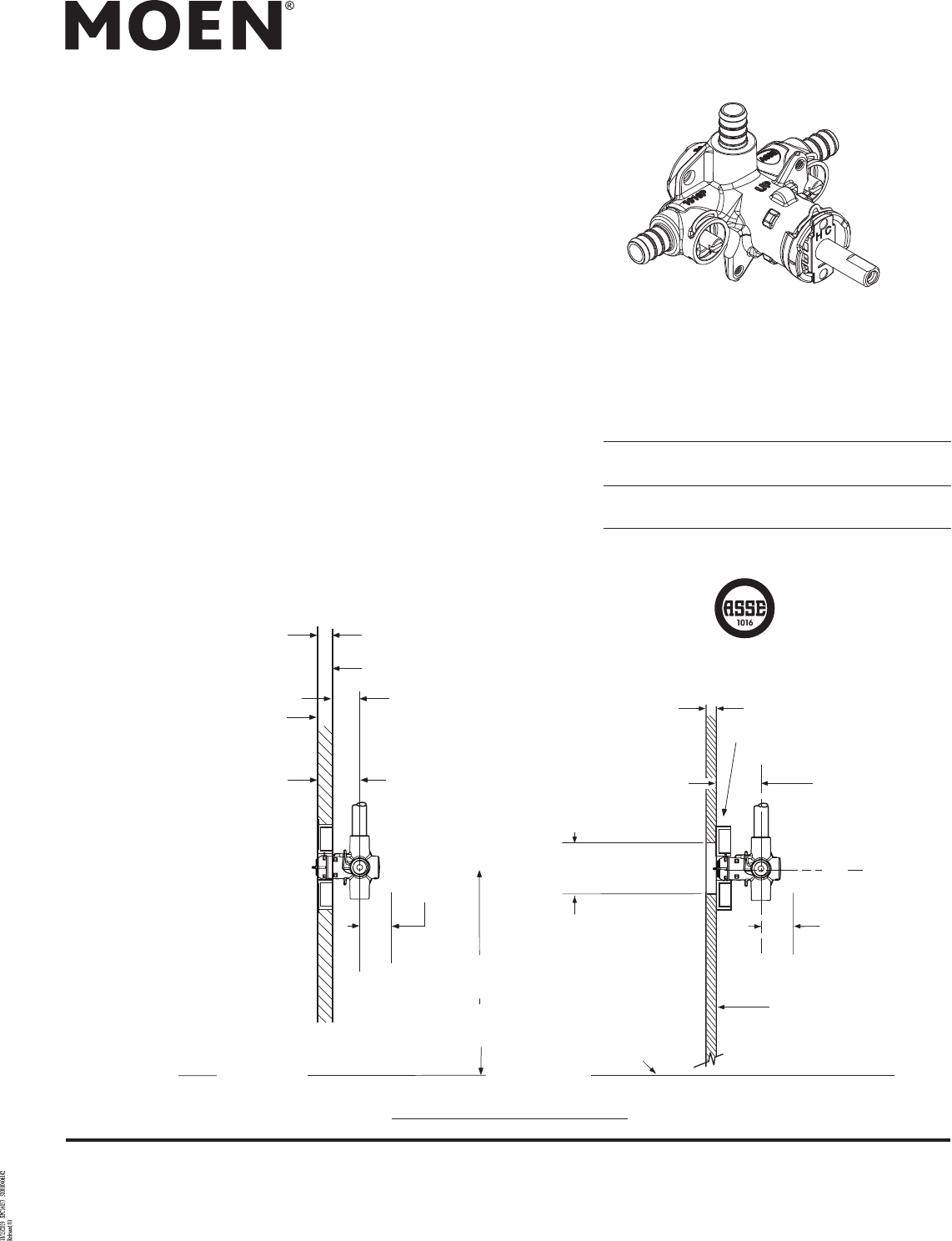

Specification Sheet

CRITICAL DIMENSIONS
(DO NOT SCALE)
Spec i fi ca tions
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
DESCRIPTION
• Brass Construction
• Pressure balancing valve design with 1/2” PEX or CPEX connections
• All inlets match outlets
OPERATION
• Adjustable temperature limit stop to control maximum hot
water temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 3˚
CARTRIDGE
• 1222 cartridge design
• Accommodates back to back installations
STANDARDS
• Third party certied to meet ASME A112.18.1/CSA B125.1,
ASSE 1016, and all applicable requirements referenced therein
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations
POSI-TEMP® VALVE
Pressure-Balancing Valve
Models: 2326PF / FP62326PF (bulk) 3 Port Posi PEX
with stops
2328PF / FP62328PF (bulk) 3 Port Posi CPEX
with stops
FP62325PF (bulk) 3 Port Posi PEX
blk pk
FP62327PF (bulk) 3 Port Posi CPEX
blk pk
FLOOR
2" (51mm)
MAX WALL
FINISHED WALL LINE
FACE OF STUD
32" (813mm) - SHOWER
45" (1143mm)/
48" (1219mm) - SHOWER
2 1/2" MAX.
(63mm)
1/2" MIN. (13mm)
1 3/8"
(35mm)
FLOOR LINE
1 3/8"
(35mm)
L
C
1 1/2"
(38mm)
3/16" (typ) (5mm)
PLASTER GROUND
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
PLASTIC
SHOWER
SURROUND
DIAMETER
WALL
OPENING
10/19
