Installation Guide

4-11/16"
(119mm)
2-11/16"
(68mm)
6-15/16"
(176mm)
4-1/16"
(103mm)
4"
(102mm)
4"
(102mm)
6-1/4"
(159mm)
(63mm)
2-1/2"
1/4" (6mm) MIN. Deck Thickness
1-3/16" (30mm) MAX. Deck Thickness
5-1/4"
(133mm)
2-1/2" (64mm)
Min. to backsplash
recommended for
lift rod operation
Specifications
DESCRIPTION
• Metal construction with nish identied by sux
• 1/2" IPS connections for exible hoses only; not for use with rigid or
semi-rigid supply risers (3/8" Copper or Pex) with coupling nuts
• Installation through 3 holes, 1" min. diameter, and 4" on center
• Includes pop-up type waste assembly
OPERATION
• Lever handles
• Maximum handle rotation angle is 90° to full on
• Hot side counterclockwise to open (clockwise to close)
• Cold side clockwise to open (counterclockwise to close)
• Rotating spout
FLOW
• Water usage is limited to these maximum ow rates as indicated
by the corresponding product markings
° 1.2 gpm max (4.5L/min) at 60 psi
CARTRIDGE
• 1224 cartridge
• Nonmetallic and stainless steel material
STANDARDS
• Third party certied to WaterSense®, ASME A112.18.1/CSA B125.1 and all
applicable requirements referenced therein including NSF 61/9 & 372
• Products marked with 1.2 gpm are compliant with California
water eciency regulations
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
• ADA for lever handles
WARRANTY
• Lifetime limited warranty against leaks, drips and nish defects to
the original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations
OPTIONS (See Illustrated Parts page)
• Thin and thick deck mounting hardware kits available
IDORA®
Two-Handle 4" Centerset Lavatory Faucet
Models: 84115 series includes pop-up waste
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com

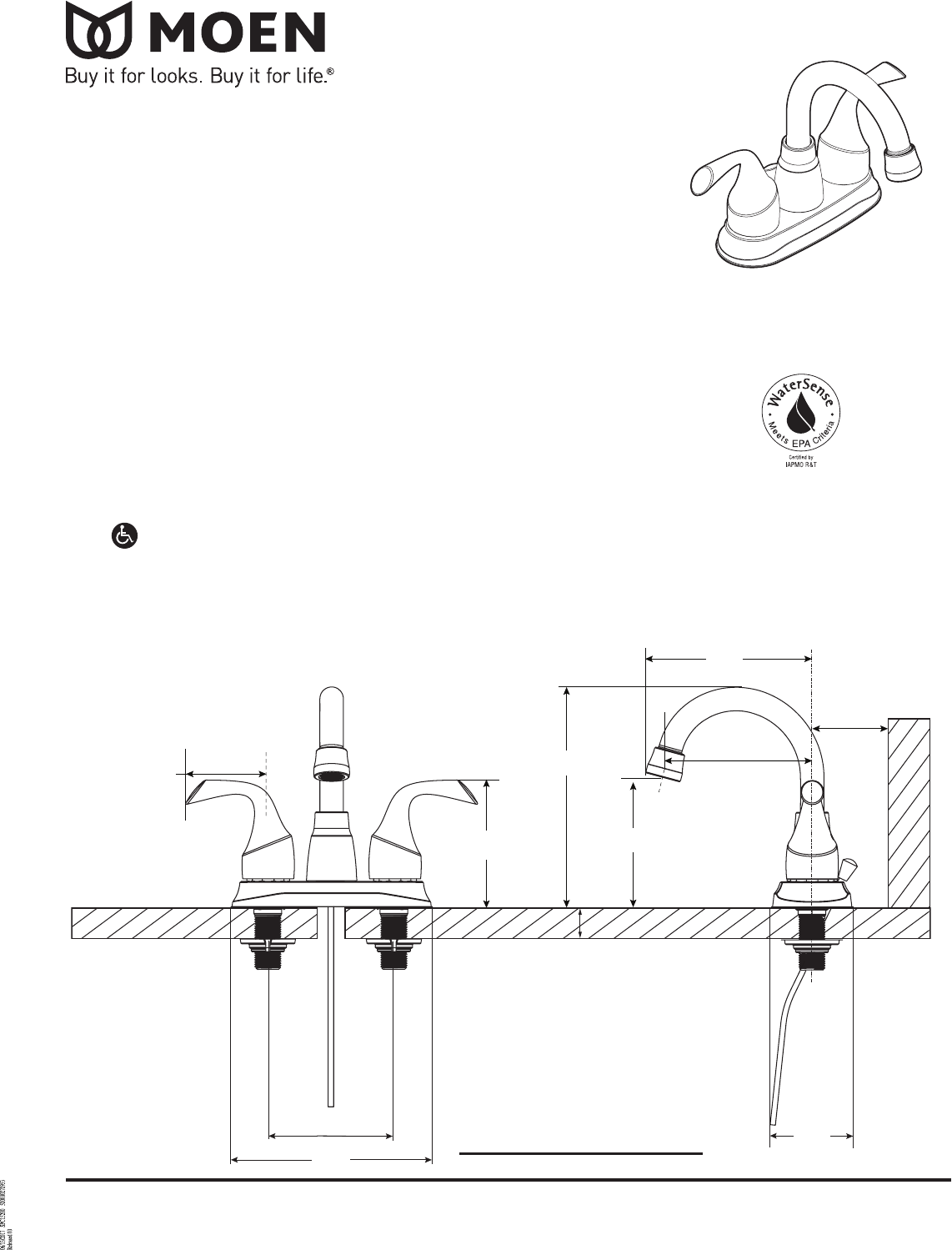

CRITICAL DIMENSIONS
(DO NOT SCALE)
