How to Guide

Escutcheon & Gasket Kit

141002SRS Spot Resist Stainless

TO ORDER PARTS CALL: 1-800-BUY-MOEN

www.moen.com

Deck Gasket

143338 Clear

143338BL Black

Installation Tool

118305

Cartridge Nut

140998

Mounting

Hardware

113173

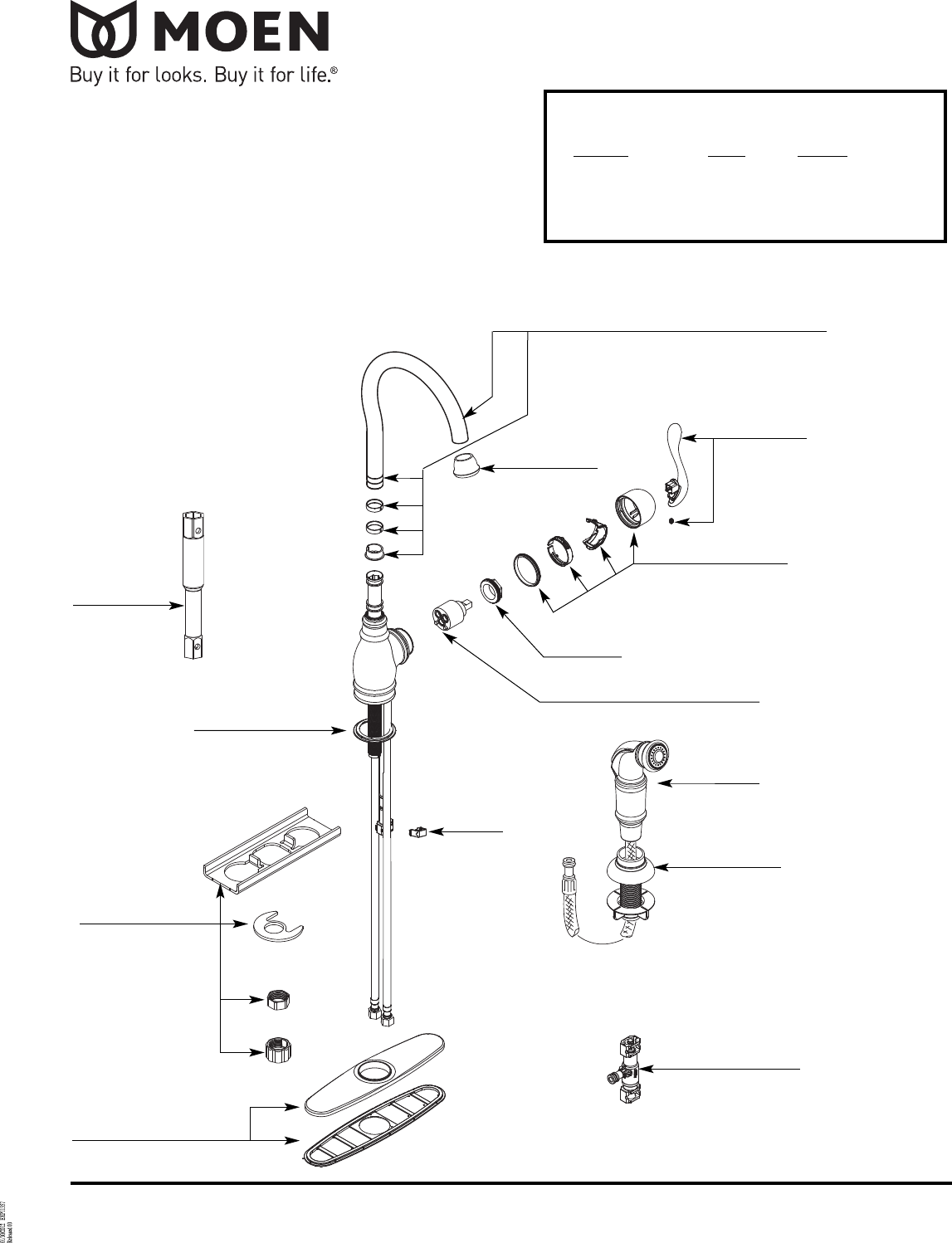

I l l u s t r a t e d P a r t s

Order by Part Number

MODEL TYPE FINISH

87650SRS Lever Spot Resist Stainless

Single-Handle Kitchen Faucet

4/11

Dome Kit

141797SRS Spot Resist Stainless

Handle Kit

143336SRS Spot Resist Stainless

Spout Tube Kit

157321SRS Spot Resist Stainless

Clip

152767

Aerator Kit

157322SRS

Replacement Cartridge

4000

Diverter Housing Kit

144578

Hose & Spray

144474SRS Spot Resist Stainless

Spray Escutcheon

132364SRS Spot Resist Stainless

PAGE 1
I l l u s t r a t e d Pa r t s Single-Handle Kitchen Faucet n Order by Part Number MODEL 87650SRS TYPE Lever FINISH Spot Resist Stainless Spout Tube Kit 157321SRS Spot Resist Stainless Handle Kit 143336SRS Spot Resist Stainless Aerator Kit 157322SRS Dome Kit 141797SRS Spot Resist Stainless Installation Tool 118305 Cartridge Nut 140998 Replacement Cartridge 4000 Deck Gasket 143338 Clear 143338BL Black Hose & Spray 144474SRS Spot Resist Stainless Clip 152767 Spray Escutcheon 132364SRS Spot Resist S
