Specification

Specifications
DESCRIPTION
• Digital thermostatic shower valve design with 3/4" CC inlet connections and ½" CC outlet
connections
OPERATION
• Must be used with the TS3304TB digital shower controller
• Smart phone app available for iOS and Android that provides increased user personalization
of the shower
• Factory default maximum temperature setting of 115°F (46° C) with adjustability through
the app up to 120°F (49° C)
• Valve must be installed in an area that has an access panel
• GFCI electrical outlet with continuous power (120V/60Hz) required
FLOW
• Designed to deliver 14 gpm (53 L/min) at 45 psi unrestricted total ow through all outlets
• Designed to deliver 6 gpm (22.7 L/min) at 45 psi unrestricted on any one outlet
• Flow rates applicable when installed on a pressure balanced dedicated supply
• Water supply minimum incoming pressure of 20 psi
STANDARDS
• Valve and Controller system third party certied by IAPMO (cUPC) to meet ASSE 1016/ASME
A112.1016/CSA B125.16, ASME A112.18.1/CSA B125.1, UL 1951, CSA C22.2 Nos. 14 and 68
• Third party certied to meet FCC part 15 Class B
• Third party certied to meet Industry Canada RSS-210
WARRANTY
• Lifetime limited warranty against leaks and drips to the original homeowner
• 10 year limited warranty against leaks and drips when used in a multifamily installation
• 5 year limited warranty against leaks and drips when used in a commercial installation
• 5 year limited warranty against electronic operation defects to the original homeowner or when used in a multifamily installation
• 1 year limited warranty against electronic operation defects when used in a commercial installation
INSTALLATION
• Install product following the Installation Guide
• Power supply and valve must not be installed where the ambient temperature can exceed 104°F (40° C) or where freezing may occur
• Valve ts between 2 X 4 studs spaced at 16" (406 mm) or 24" (610 mm)
• 30' (9.1 m) data cable connects the valve to the controller
U by Moen™
4-Outlet Digital Thermostatic Shower Valve
Model: S3104
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com

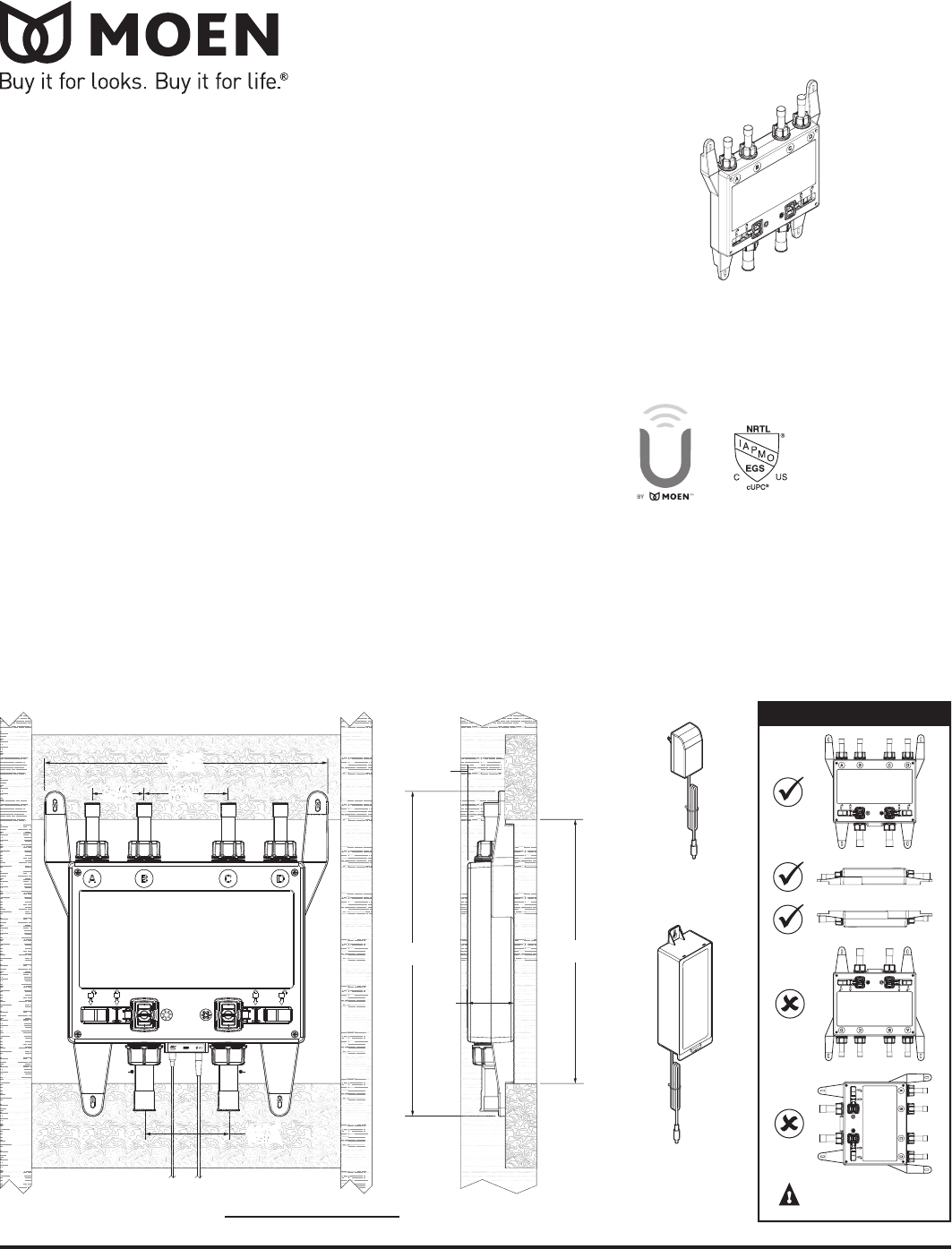

CRITICAL DIMENSIONS
(DO NOT SCALE)
Rev. 1/17
Caution:
Risk of Product Damage
VALVE MOUNTING ORIENTATIONS
13 ± 1/4"
330mm ± 6mm
Hot Cold
15-3/4"
400mm
4-1/16"
103mm
1-13/16"
46mm
2-1/2"
63mm
13-3/4"
349mm
2-7/32"
56mm
4-1/16"
103mm
Valve and
Co
ntroller System
Optional
Battery Backup Kit
#179573
(Sold Separately)
Cable: 4' (1.2m)
AC Adapter
(Included)
Cable: 6' (1.8m)
