Dimensions Guide
Specifications
DESCRIPTION
• Metal construction with various nishes identied by sux
OPERATION
• Handle operates counterclockwise through a 270° arc with
o at 6 o’clock and maximum hot at the 9 o’clock position.
Shut o in clockwise direction
• Adjustable temperature limit stop to control maximum hot
water temperature
• Pressure balancing mechanism maintains selected dis-
charge temperature to ± 3°
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certied to meet ASME A112.18.1/CSA B125.1
and all applicable requirements referenced therein
• ADA
for lever handles
WARRANTY
• Lifetime limited warranty against leaks, drips and nish
defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
Brantford™ POSI-TEMP®
Single-Handle Tub/Shower
Trim Kit
Models: T2150 series - valve trim only
Valves: 62300 series
2500 series
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com

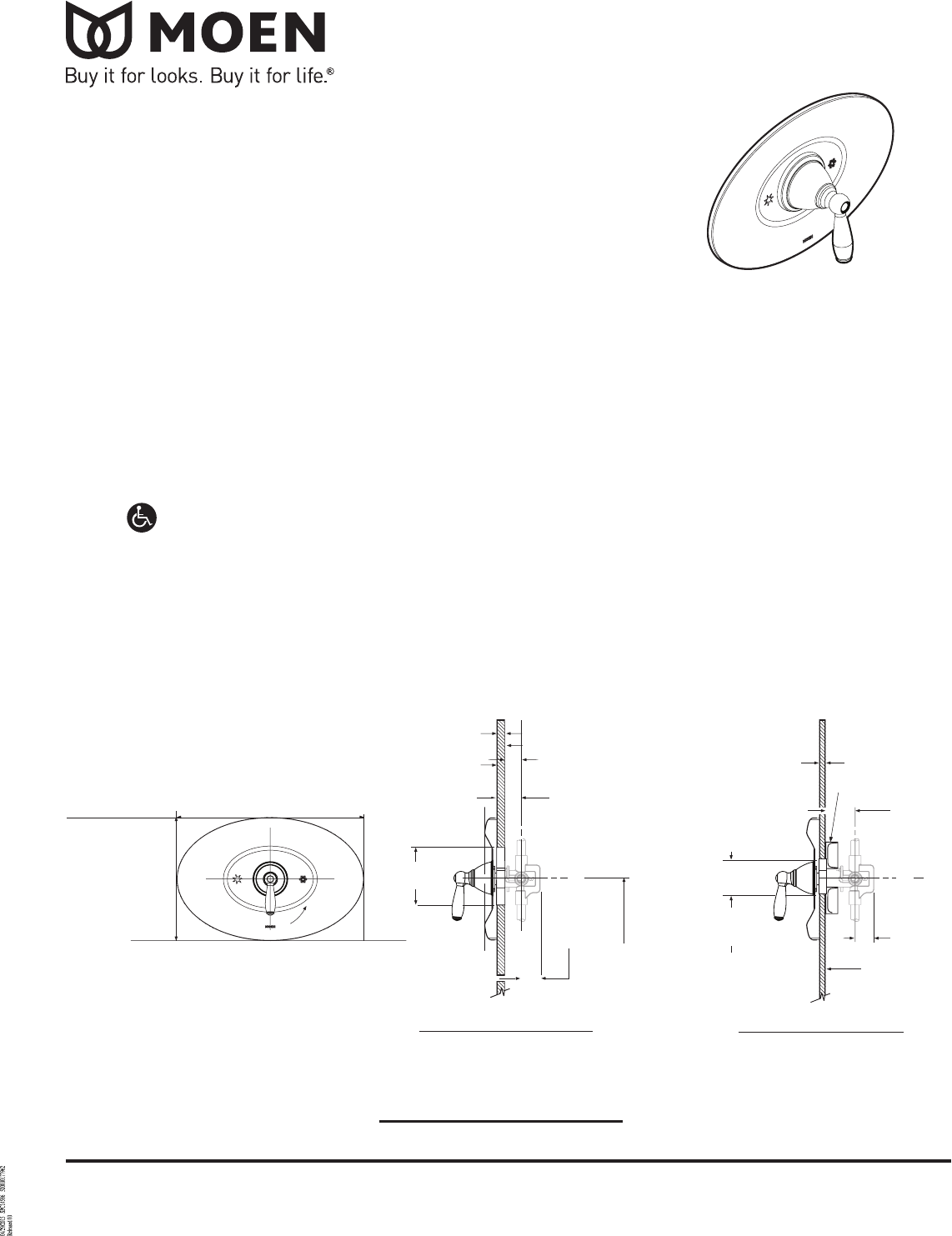

CRITICAL DIMENSIONS
(DO NOT SCALE)
2 1/2" MAX. (63mm)
FINISHED WALL LINE
FACE OF STUD
2"CC (51mm)
1 7/8" IPS (48mm)
MAX WALL
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
12-13/16" (325mm
)
DIRECTION
OF HANDLE
ROTATION
4-1/2" (114mm)
WALL OPENING
C
L
1-3/8" (35mm)
1 3/8"
(35mm)
3/16"(typ) (5mm)
L
C
1 1/2" MAX.
(38mm)
PLASTER GROUND
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
DIAMETER
WALL
OPENING
PLASTIC
TUB/SHOWER
SURROUND
8-1/2"
(216mm)
THIN WALL APPLICATION
THICK WALL APPLICATION
3/15
