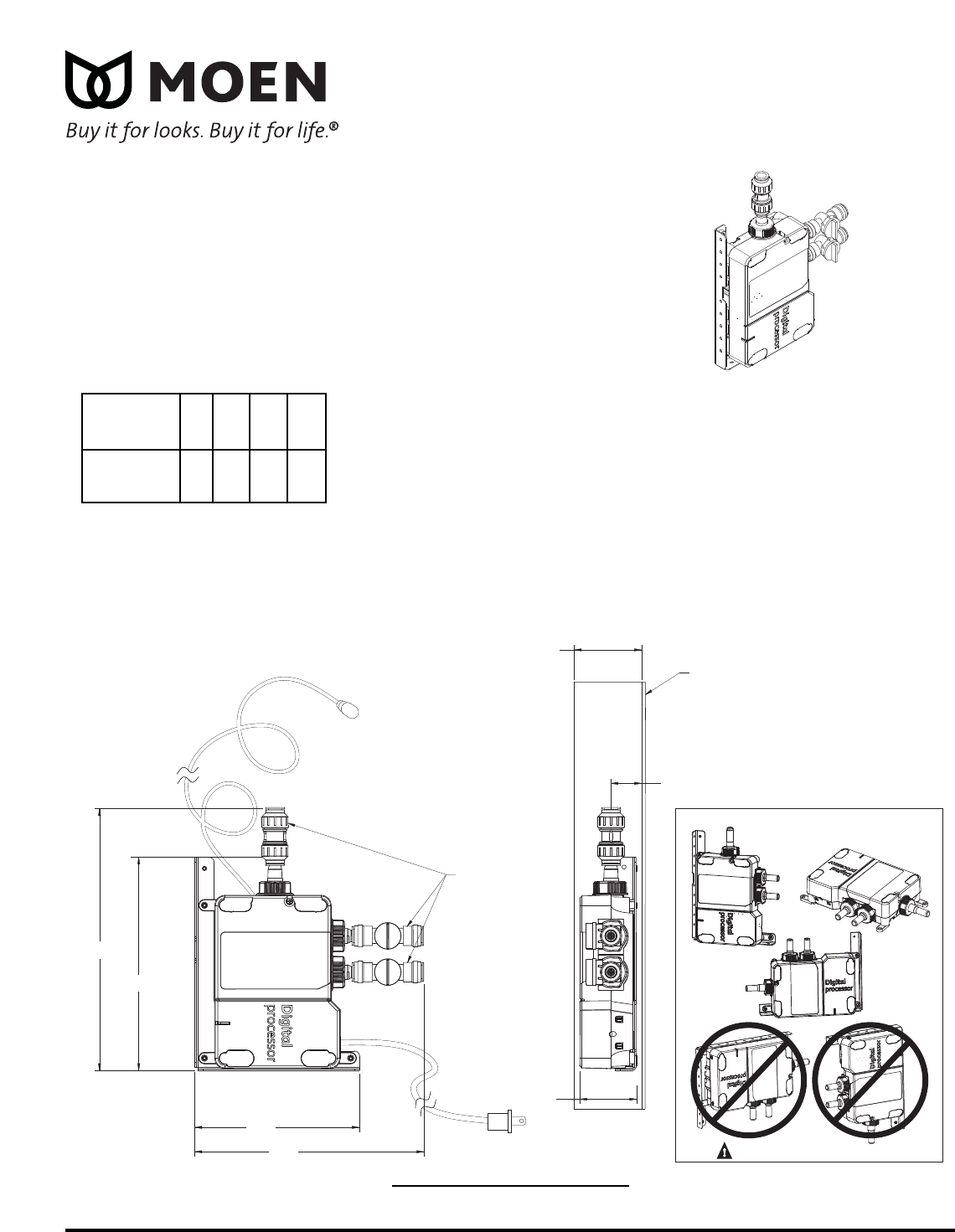

Operating Guide

PUSH FIT CONNECTORS
TO BE USED WITH
COPPER, PEX, OR CPVC
3"
( 76 mm )
1-5/8" ( 41 mm )
MIN FROM INSIDE WALL
FINISHED WALL LINE
8-1/2"
( 216 mm )
12"
( 305 mm )
11"
( 279 mm )
14"
( 356 mm )
STUD
DATA CABLE ( 30' ) ( 9.2 m )
POWER CABLE ( 10' ) ( 3 m )
ioDIGITAL
™
Roman Tub Valve
Model: 4994
CRITICAL DIMENSIONS
(DO NOT SCALE)
Specifications
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Rev. 5/09
◊ Caution: Risk of Product Damage
Valve Mounting Orientations
DESCRIPTION
• Digital thermostatic valve design with integral checkstops
and 1/2"push fit connections
OPERATION
•Temperature range adjustment from 60 degrees F to 120 degrees F (16
degrees C to 49 degrees C). Factory maximum setting is 115 degrees (46
degrees C)
• Must be used with interface T3490 series
• Valve must be installed in an area that has an access panel
FLOW
• Designed to deliver 11.5 gpm at 45 psi unrestricted flow (43.5L/min)
• Minimum flow 2.4gpm (9.1 L/min)
STANDARDS
• Third party certified to meet ASME A112.18.1/CSA B-125.1, CSA B125.3,
ASSE1070 and all applicable requirements referenced therein
• Third party certified to meet UL1951
• Third party certified to meet FCC part 15
WARRANTY
• 5 year warranty against leaks, drips and operation defects to the
original consumer purchaser
• 1 year warranty if used in commercial installations
Pressure Dierential- psi (KPa)
Pressure
psi
KPa
10
69
20
138
40
276
45
310
Flow
gpm
L/min
5.6
21.2
7.8
29.5
11.0
41.6
11.5
43.5
