Specification Sheet

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com

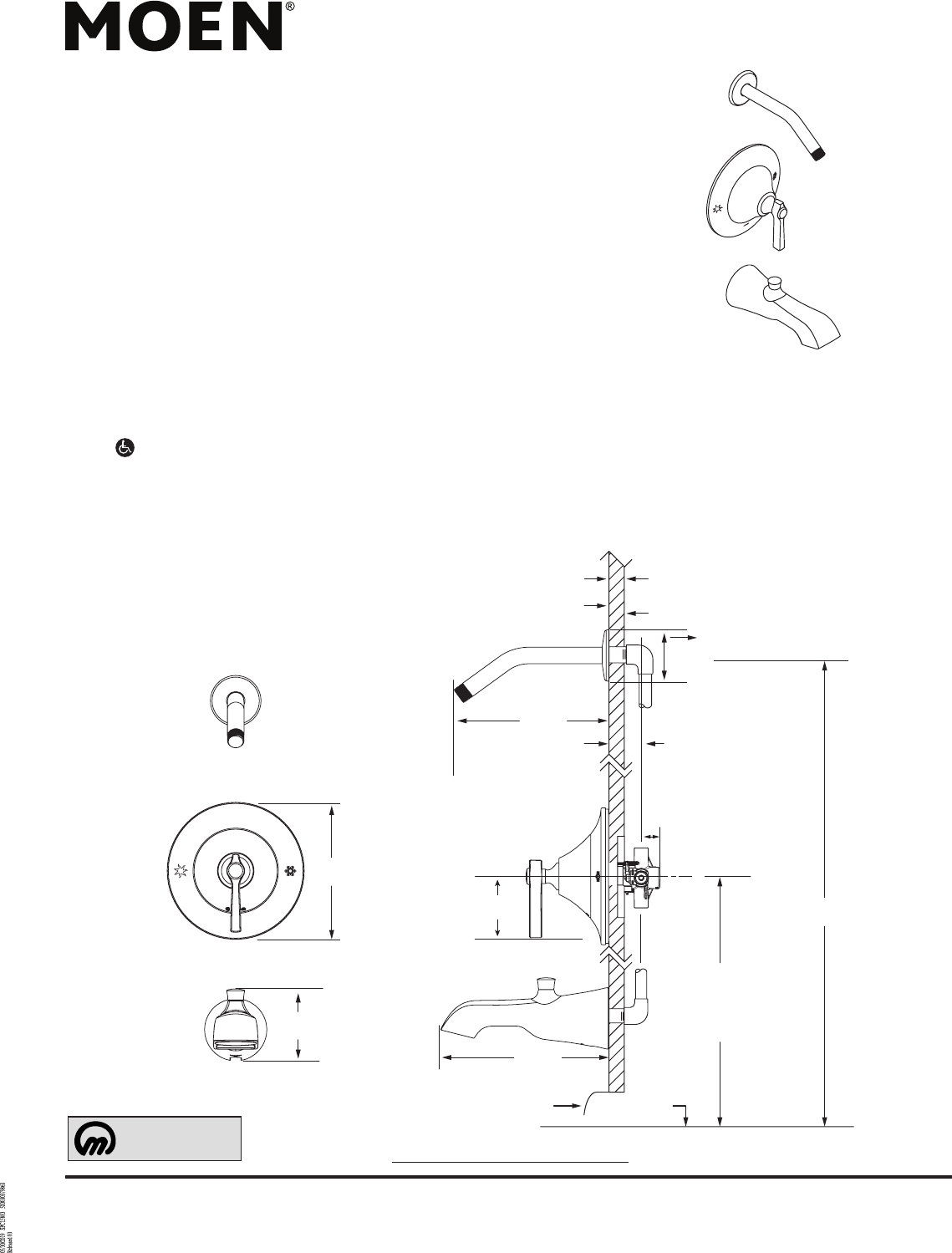

CRITICAL DIMENSIONS
(DO NOT SCALE)
Spec i fi ca tions
4/19
FLARA™ MOENTROL®
Single-Handle Tub/Shower Trim Only
Models: TS3911 series - valve only trim
TS3912NH series - shower only trim
TS3913NH series - tub/shower trim
Valves: 3510, 3520, 3570 Series
6-5/8"
(168 mm)
3-1/2"
(90 mm)
Shower
45" (1143 mm) Min.
48" (1219 mm) Max.
Tub only &
Tub/Shower
32" (813 mm)
6' 6"
(1981 mm)
L
C
2 1/2"
(64 mm)
1 3/8"
(35 mm)
Tub Rim
Finished wall line
Face of stud
Floor
2 1/16" Max. (52mm)
1 7/16" Max. (16mm)
2" CC
1 7/8" IPS (48 mm)
Max Wall.
1/2" Min. CC (13mm)
5/8" Min. IPS (16 mm)
7-1/2"
(191mm)
8-1/8"
(197 mm)
3-5/8”
(93 mm)
FAUCET DESCRIPTION
• Metal construction with varoius finishes idenditfied by suffix
OPERATION
• Lever style handle with temperature indicator on the
escutcheon, pull-on/push-off operation
• Temperature operates through an 180° arc of handle
travel (full cold to full hot)
• Adjustable temperature limit stop to control maximum
hot water temperature
• Pressure balancing mechanism maintains selected
discharge temperature to ± 2°
FLOW
• NH Suffix models contain no showerhead
CARTRIDGE
• 1225® cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to ASME A112.18.1/CSA B-125-1,
and all applicable requirements referenced therein
• ADA
for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and nish defects to the
original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations
M•pact System
