Dimensions Guide

ManualsBrandsMoen ManualsBathroom Sink FaucetsWSL84533

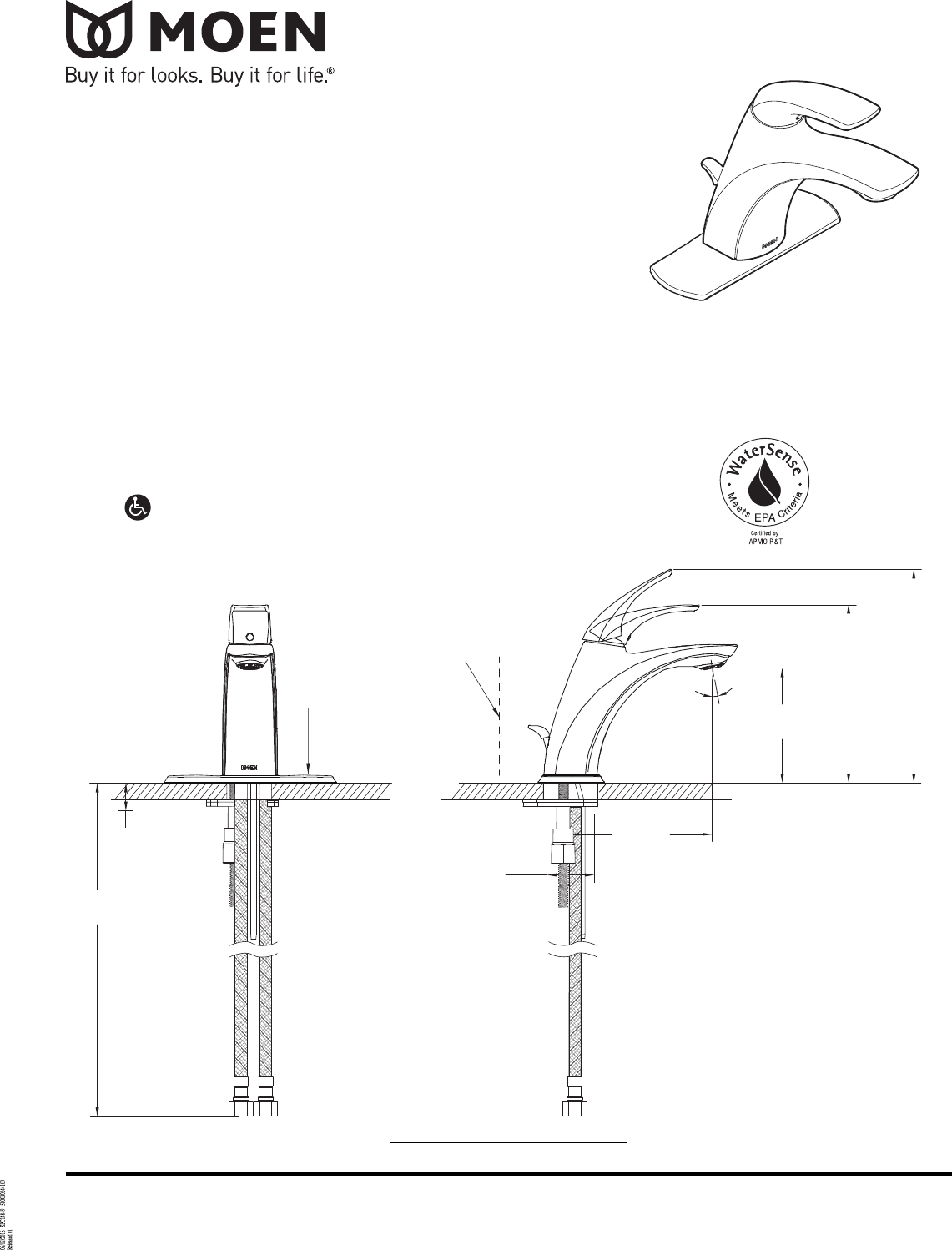

4.00"

(101mm)

6.33"

(161mm)

7.65"

(194mm)

5.26"

(134mm)

11"

(279mm)

30"

(762mm)

2.00"

(51mm)

2.50"

(64mm)

MAX.

Back

Splash

2.50" min.

for lift rod

operation

Includes

optional

3 hole

escutcheon

Zarina™

Single-Handle Lavatory Faucet

Model: WSL84533

NOTE: THIS FAUCET IS DESIGNED TO BE

INSTALLED THRU 1 HOLE, 1-1/8" MIN. DIA.

DESCRIPTION

• Metal construction with various finishes identified by suffix

• Includes metal pop-up type waste assembly

• Includes optional 3 hole deck plate (escutcheon)

• Flexible supplies with 3/8” compression fittings

OPERATION

• Pivot action lever style handle

• Temperature controlled by 100° arc of handle travel

FLOW

• Water usage is limited to these maximum flow rates as indicated by

the corresponding product markings

° 1.2 gpm max (4.5L/min) at 60 psi

CARTRIDGE

• 1255™ Duralast™ cartridge for Single-Handle Faucets

STANDARDS

• Third party certified to WaterSense,® ASME A112.18.1/CSA B125.1,

and all applicable requirements referenced therein

• Certified to NSF 61/9 & 372

• Products marked with 1.2 gpm are compliant with California water

efficiency regulations

• Complies with California Proposition 65 and with the Federal Safe

Drinking Water Act

• ADA for lever handle

WARRANTY

• Lifetime limited warranty against leaks, drips and finish defects

to the original consumer purchaser

• 5 year warranty if used in commercial installations

CRITICAL DIMENSIONS

(DO NOT SCALE)

S p e c i f i c a t i o n s

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

Rev. 5/16
