Quick Specification

Product Specication Revised 2/20
HELPFUL TIPS
For questions about your
appliance, please call 1-800-626-2000.
STANDARD INSTALLATION
PAGE 5 OF 17

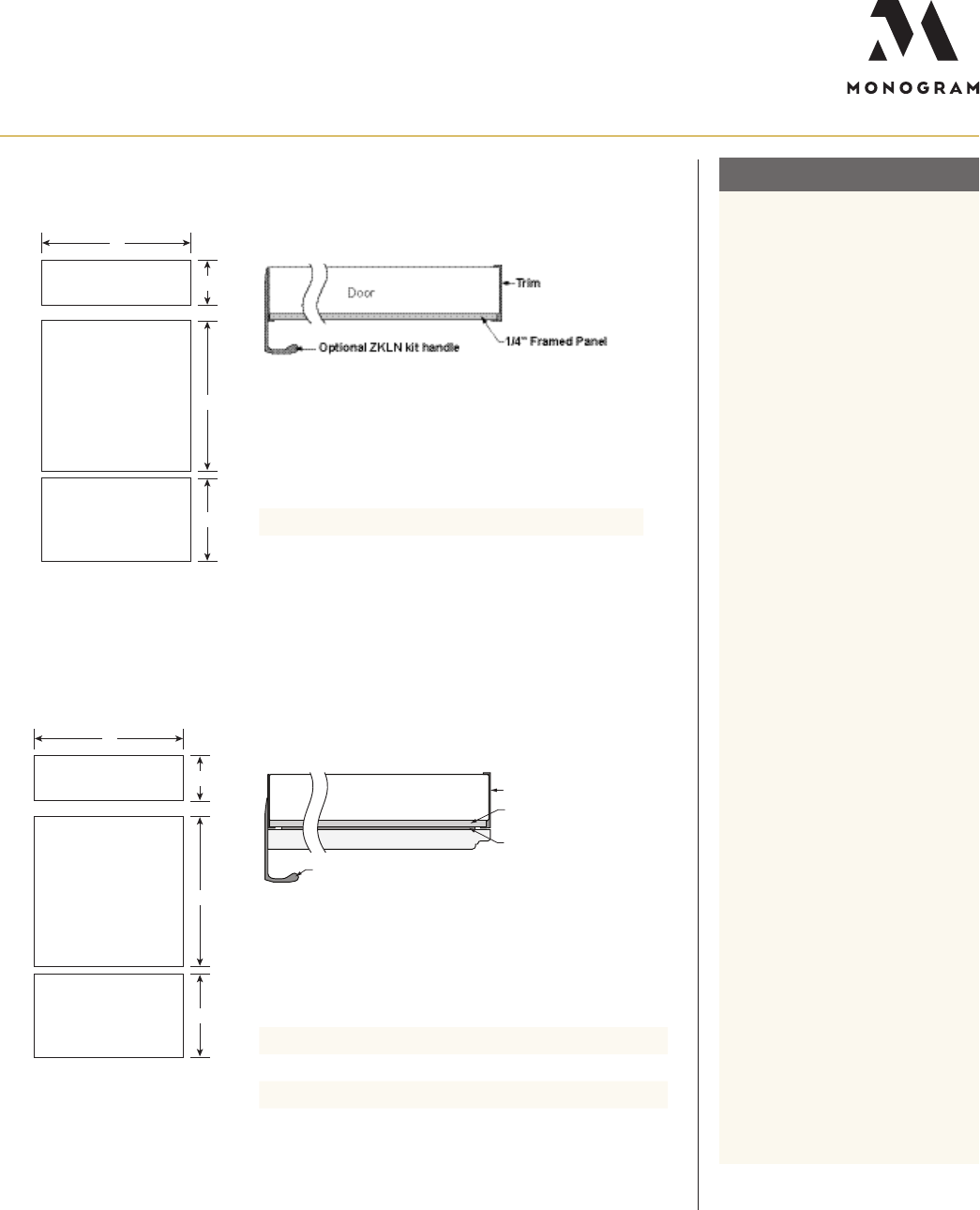

PANEL ASSEMBLY CROSS SECTION
PANEL ASSEMBLY CROSS SECTION
PANEL DIMENSIONS
PANEL DIMENSIONS
STANDARD 3/4" OVERLAY PANEL DIMENSIONS SINGLE INSTALLATION
STANDARD 1/4" FRAMED PANEL DIMENSIONS SINGLE INSTALLATION
A B C D
1/4" Framed Panel 33 7/8" 8 7/8" 46 1/16" 21 7/8"
Grille Panel
Fresh
Food
Panel
Freezer Drawer Panel
A
B
C
D
A B C D
1/4" Backer Panel 33 7/8" 8 7/8" 46 1/16" 21 7/8"
.10" Spacer Panel 32 1/2" 7 5/8" 44 11/16" 20 1/2"
3/4" Overlay Panel 34 1/8" 9" 46 5/16" 22"
Grille Panel
Fresh
Food
Panel
Freezer Drawer Panel
A
B
C
D
Door
1/4" Backer Panel
.10" Spacer Panel
Optional ZKLN kit handle
Trim
3/4" Overlay Panel
3/4" OVERLAY PANELS:
e decorative panels slide into
the trim. e overlay panel must be
secured to a 1/4"-thick backer panel
which slides into the trim. A spacer
panel 0.10" thick must be placed
between the overlay and backer panels.
Center each panel over the other.
Assemble the panels with glue and
screws. Screws must be countersunk
into the backer panel.
NOTE: Left-to-right offset is not
always equal to top-to-bottom offset.
MAXIMUM TOTAL PANEL
WEIGHT:
• Fresh food door panel – 58 lbs.
• Freezer drawer panel – 28 lbs.
• Grille panel – 11 lbs.
DOOR HANDLES:
Door panels not included. Custom
handles supplied by your cabinet
maker may be used
Optional visor handle kit ZKLN
available.
Trimmed refrigerators are designed
to be customized with decorative
panels. Field-installed custom door
and grille panels are required.
1/4" FRAMED PANELS:
For 1/4" thick custom panels ordered
from your cabinet maker. e
decorative panels slide into the trim.
MAXIMUM TOTAL PANEL
WEIGHT:
• Fresh food door panel – 58 lbs.
• Freezer drawer panel – 28 lbs.
• Grille panel – 11 lbs.
.25" + .10" + .75" = 1.10" Total Panel Thickness
