Canopy T1/E1MultiplexerSeptember2004
T1/E1MultiplexerFPGAVersion3.4
Page60 of 73
3. Click Browse to find the new FPGA firmware that your authorized Canopy
distributor or reseller provided.
4. Select the file to download.
NOTE: Typically the filename has the format Vx_y.bin (for example,
V3_4.bin).
5. Click Download.
RESULT: The status bar indicates the progress of the download process.
IMPORTANT!
During the download process, do not interrupt the download process.
6. Wait until the download is complete.
7. Reset the T1/E1 Multiplexer according to Procedure 26 on 56.
RESULT: The upgrade process is complete.
8. From the main menu of the EMS, select Help→About Canopy T1/E1 Mux.
9. Verify that the intended firmware version is indicated on the screen that results,
as shown in Figure 25.

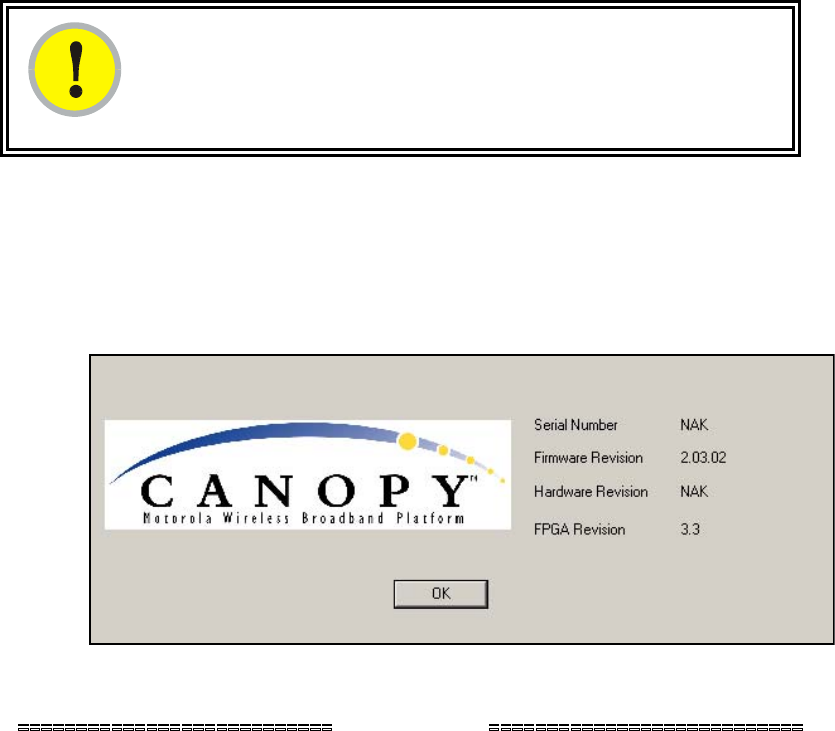

Figure 25: FPGA revision details screen
end of procedure
