User's Manual

10
The beacon n°1 is placed
as far as possible from the
robot
Setting up the beacons
The watch is located by the beacons thanks to triangulation techniques which is why the beacons are essential
both INDOOR and OUTDOOR.
Afterscrewingthebeaconsonthemini-tripods,switchONeachbeaconbypressingits button until the
greenlightturnsON.

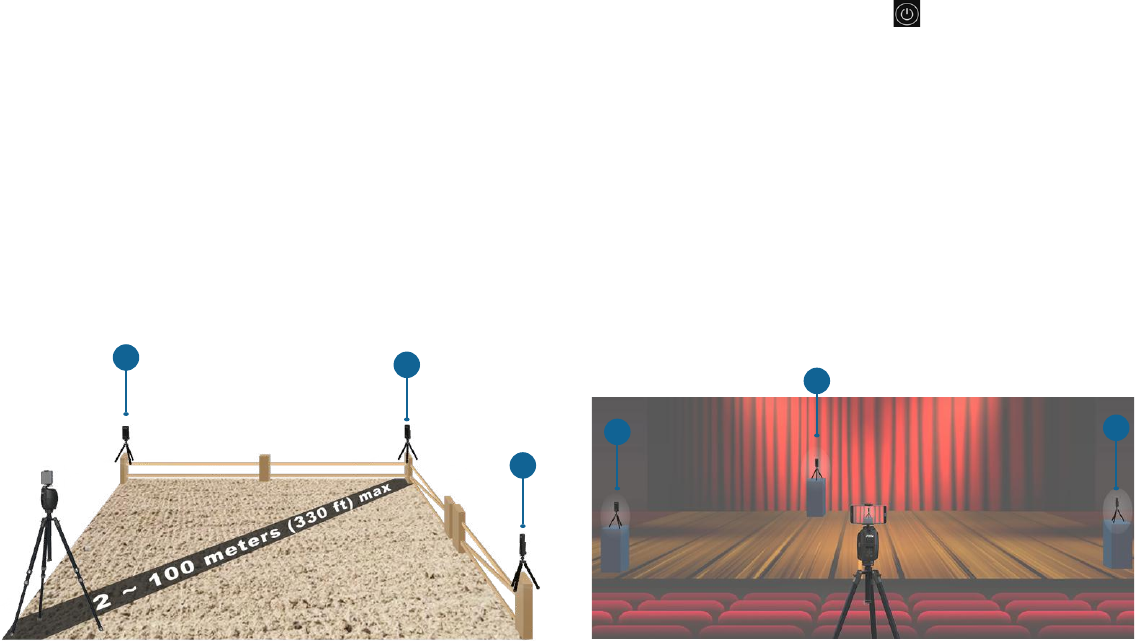

PlacethePIXEMrobotandthe3beaconsaroundtheareayouwanttolmfollowingtheseinstructions:
 -Place the beacon n°1 as far as possible from the robot(butnotmorethan330ftor100m).Itwillimprove
theleft-rightaccuracyofthetracking(beacon numbers are written at the back of each beacon).
 -Place the beacons n°2 on the left of the beacon n°1, as seen from the robot.
 -Thebeaconn°3canbeplacedontheleftorontherightofotherbeacons.
2
3
1
The beacon n°2 is on the
left of the beacon n°1, as
seen from the robot
2
3
1
