Datasheet

TB-F9
DIN-Rail mountable DB9 female to 9-pin terminal block
wiring terminal
CI-132
CP-132
Multiport Serial Board Solutions
e-mail:[e-mail] www.moxa.com

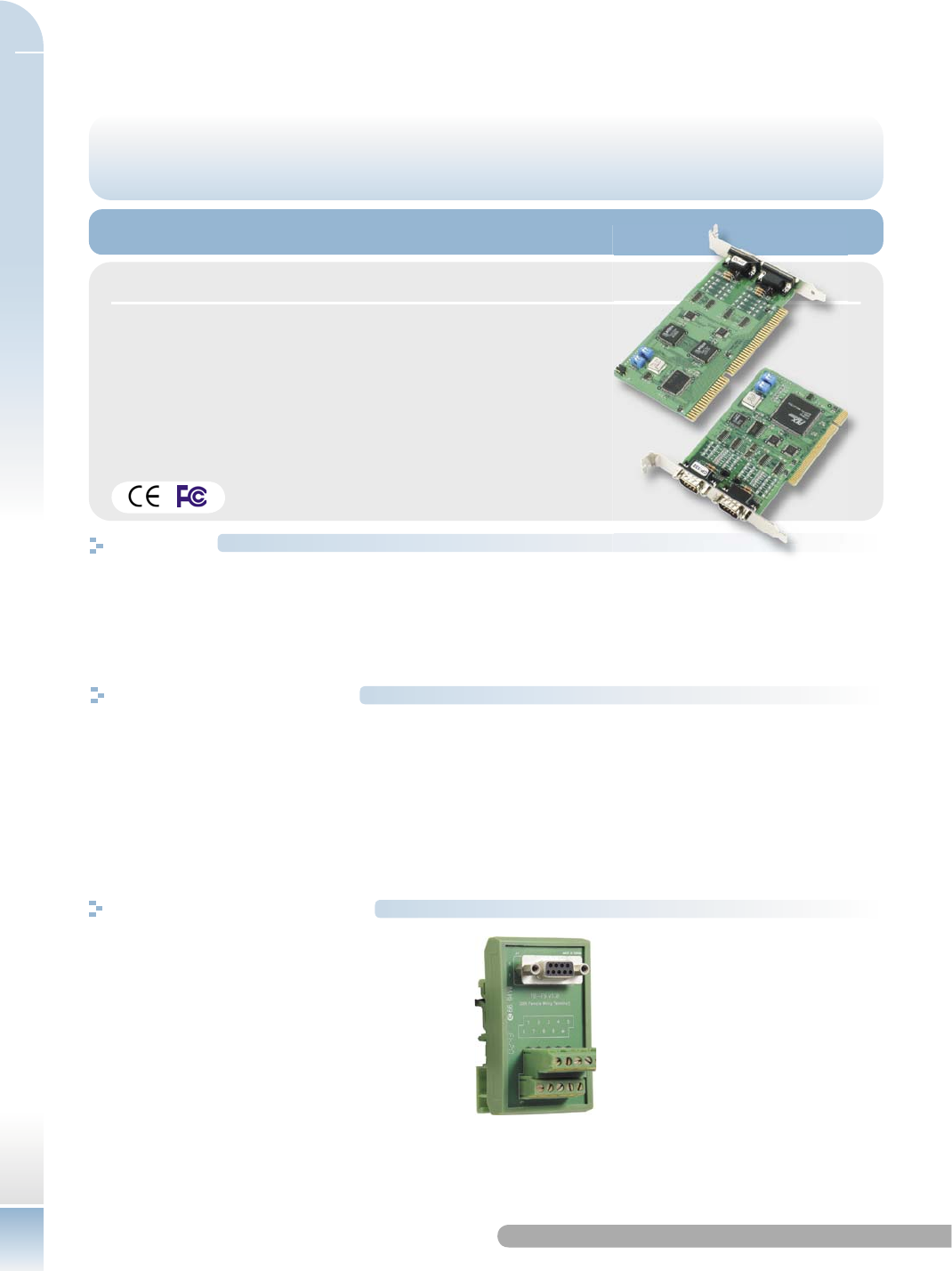

CP-132/CI-132 Series
2-Port RS-422/485 PCI/ISA Boards
CP-132/CI-132 Series
Features
• 2-port RS-422/485 High Speed Communication Board
• Compact PCI/ISA board size
• Versatile OS driver support
• Various connection options
• Data transmission speed up to 921.6 Kbps
• On-chip hardware flow control
• Easy configuration without switches or jumpers
MOXA’s CP-132/CI-132 series offers 2 independent RS-422/
485 serial ports for connecting data acquisition equipment
and many other serial devices to a PC, and provides a reliable
communication link (RS-422/485) over a longer distance
(up to 4000 ft). And with its optional surge protection
and isolation, these products are well suited for industrial
environments. Connections with point-to-point full-duplex
or multidrop half-duplex are available to meet users’ varied
needs.
Overview
Ordering Information
Optional Wiring Termial
PCI Solution
CP-132: PCI bus, 2-port RS-422/485 serial board
CP-132S: CP-132 w/ 25 KV ESD Surge Protecion
CP-132I: PCI bus, 2-port RS-422/485 serial board w/ 2 KV
Isolation
CP-132IS: w/ 25 KV ESD Surge Protection and 2 KV Isolation
ISA Solution
CI-132: ISA bus, 2-port RS-422/485 serial board
CI-132I: ISA bus, 2-port RS-422/485 serial board
w/ 2 KV Isolation
CI-132IS: w/ 25 KV ESD Surge Protection and 2 KV Isolation
* All items include: MOXA Software CD-ROM, User’s Manual
4-22
