Serial Media Converters
DB9 female
connector
5 4 3 2 1
9 8 7 6
Pin RS-232
1 –
2 RxD
3 TxD
4 –
5 GND
6 –
7 –
8 –
Pin Assignment
Physical Characteristics
Housing: Aluminum (1 mm)
Dimensions: 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
Environmental Limits
Operating Temperature:
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Operating Humidity: 5 to 95% RH
Storage Temperature: -40 to 85°C (-40 to 185°F)
Power Requirements
Input Voltage: 12 to 48 VDC
Power Consumption:
ICF-1150: 127 mA @ 12 V
ICF-1150I: 163 mA @ 12 V
Voltage Reversal Protection: Protects against V+/V- reversal
Over Current Protection: 1.1 A (protects against two signals shorted
together)
Regulatory Approvals
CE: Class B
FCC: Part 15 sub Class B
Safety: UL 508
EMI: EN55022 2006, Class B
EMS:
EN61000-4-2 (ESD), Criteria A, Level 4
EN61000-4-3 (RS), Criteria A, Level 2
EN61000-4-4 (EFT), Criteria A, Level 4
EN61000-4-5 (Surge), Criteria A, Level 3
EN61000-4-6 (CS), Criteria A, Level 2
EN61000-4-8 (PFMF), Criteria A, Level 3
ATEX: Class 1, Zone 2, EEx nC IIC
Hazardous Location: UL/cUL Class 1, Div. 2, Group A, B, C and D
Freefall: IEC 60068-2-32
Water and Dust Proof: IP30
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty

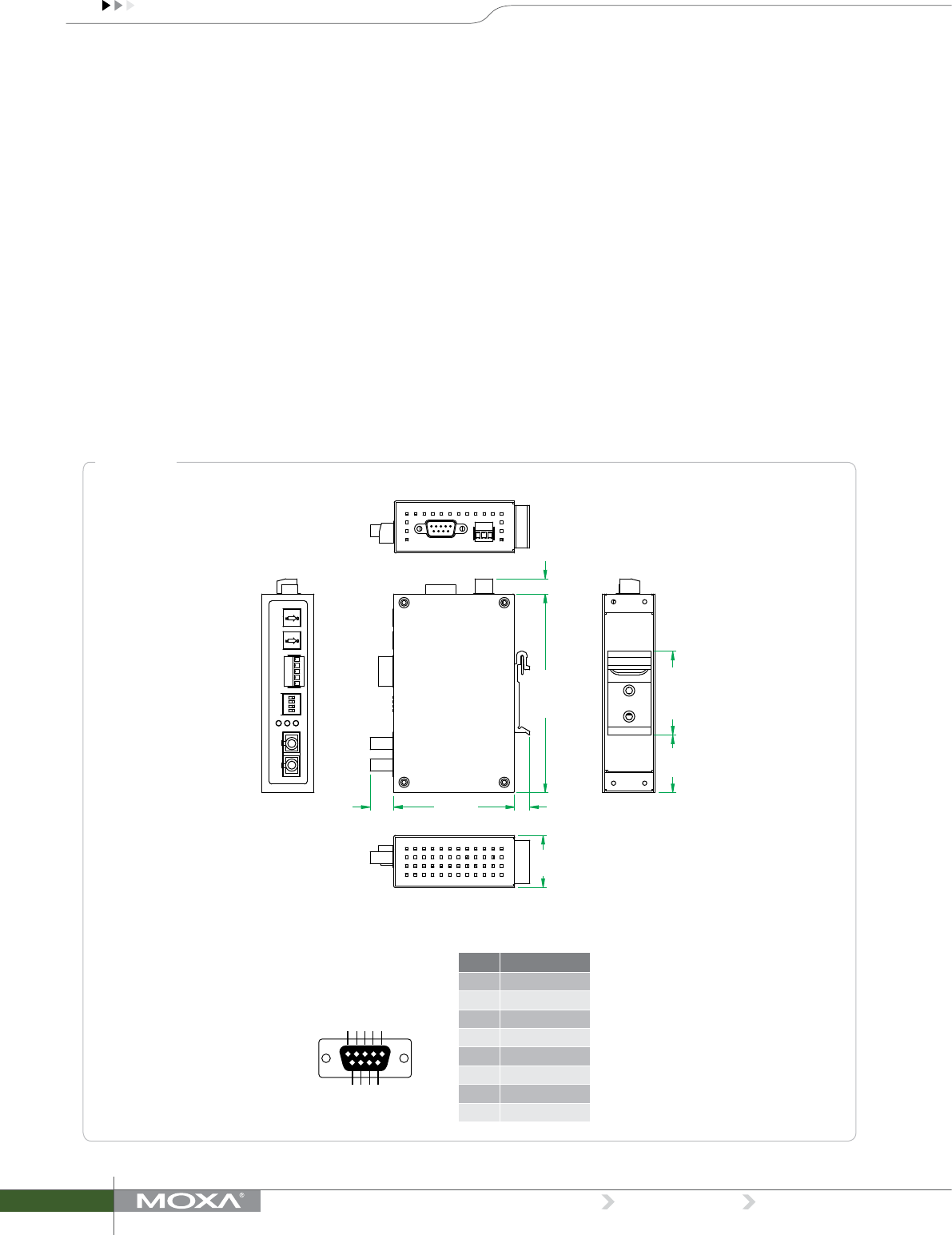

Dimensions
33.41 mm (1.32 in)
48.39 mm (1.91 in)
8.8 mm
(0.35 in)
70 mm (2.76 in)
115 mm (4.53 in)
8.8 mm (0.35 in)
13.66 mm
(0.54 in)
30.3 mm (1.20 in)
