Installation guide

ManualsBrandsMoxa ManualsNetworkingINJ-24

1

2

3

4

5

6

7

- 4 -

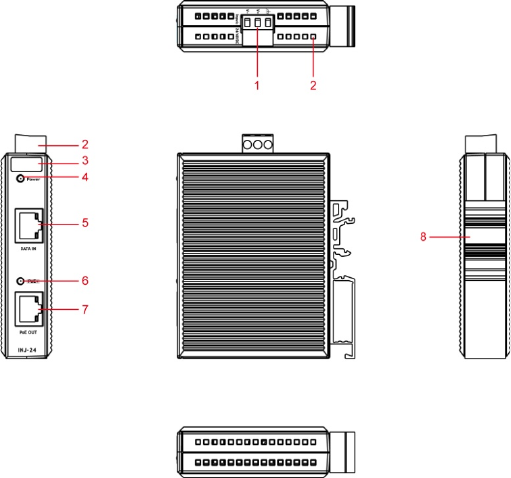

Panel Layout

1. Heat dissipation orifices

2. Terminal block for power input and grounding

3. Moxa Logo

4. Power LED

5. Data input port

6. PoE LED

7. PoE output port

8. DIN-Rail
