OnCell 5000 Series Getting Started
2-4
DIN-Rail and Rack Mounting
Wall or Cabinet Mounting

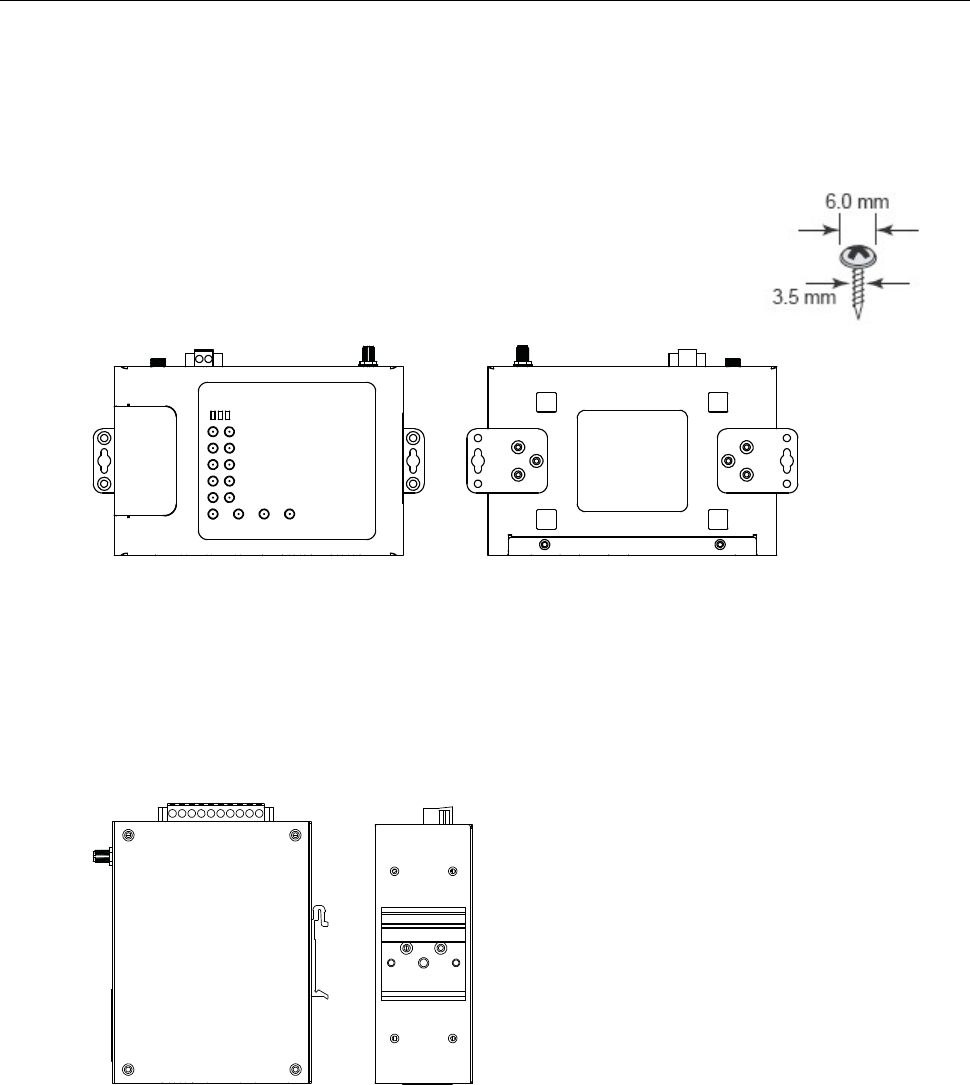

The OnCell 5004, OnCell 5004-HSDPA, and OnCell 5004-HSDPA-JPS device servers
have built-in “ears” for attaching the device server to a wall or the inside of a cabinet.
We suggest using two screws per ear to attach the device servers to a wall or the
inside of a cabinet. The heads of the screws should be less than 6.0 mm in diameter,
and the shafts should be less than 3.5 mm in diameter, as shown in the figure at the
right.
DIN-Rail Mounting
DIN-rail attachments can be purchased separately to attach the OnCell 5104, OnCell 5104-HSDPA, and OnCell
5104-HSDPA-JPS to a DIN-Rail. When snapping the attachments to the DIN-Rail, make sure that the stiff metal
springs are at the top.
Connecting the Hardware
This section describes how to connect the OnCell 5000 cellular IP-modem to a host PC or Ethernet devices for
first time testing purposes. We cover SIM card Installation, Connecting the Power, Connecting the I/O Port,
Connecting to the Network, LED Indicators, and Reset Button.
Back View
Right Side
