OnCell G3111/G3151/G3211/G3251 Series User’s Manual Configuring OnCell Central Software
10-26
Item
Description
Status
Show the status for User Data Port.
Closed: this mean the port is not connected
Registered: this mean the port is in the registering state
Connected: this mean the port is connected, and ready to use
Device MAC
Each Device has unique MAC ID that you can find on the
device lable or web/telnet/serial console
User Data Port
The port number is allowed host to establish the serial data
connection to OnCell Central which is mapping to OnCell
device
User Command Port
The port number is allowed host to establish the command
connection to OnCell Central which is mapping to OnCell
device
User Telnet Port
The port number is allowed host to establish the telnet
connection to OnCell Central which is mapping to OnCell
device

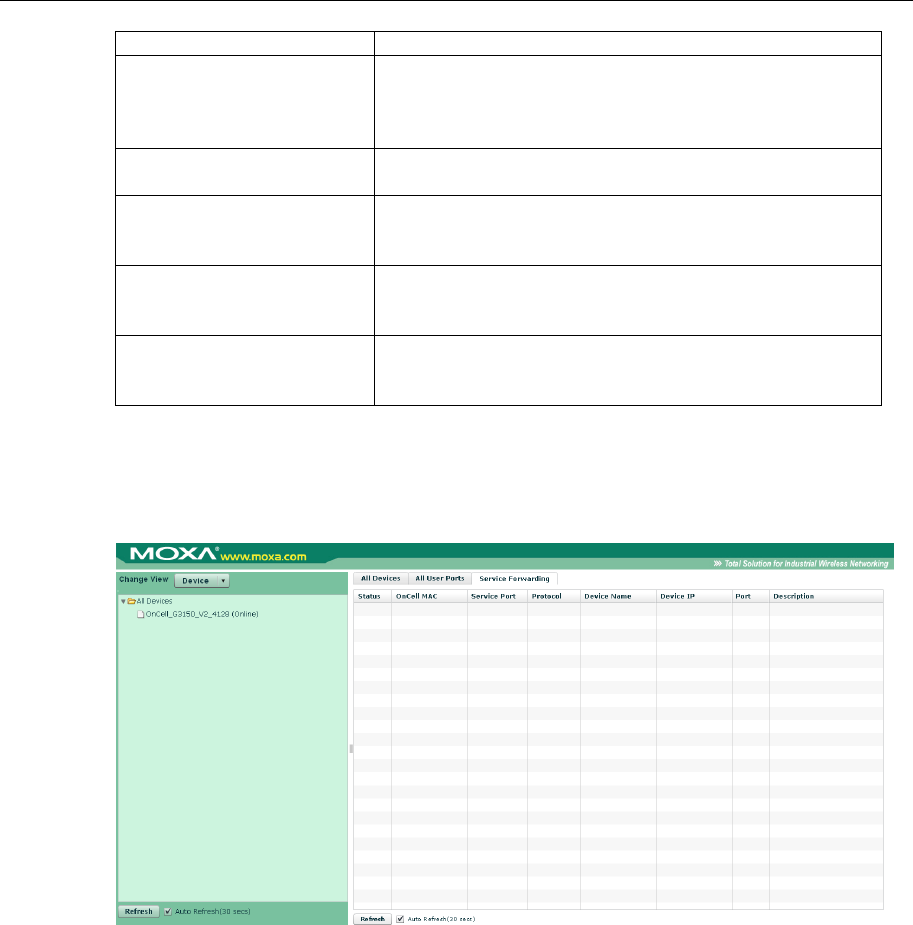

Service Forwarding (not available with G3111/G3151/G3211/G3251)
The list shows the Service Forwarding which host is established the Ethernet connection to
OnCell Central Server, and corresponding to the OnCell device.
