OnCell G3111/G3151/G3211/G3251 Series User’s Manual Configuring OnCell Central Software

10-30

Del selected record: you are able to delete the device information under service forwarding that

you highlight.

Reset connection: This is used for drop out the occupy connection, maybe this connection is no

longer in the connected line.

Maintenance

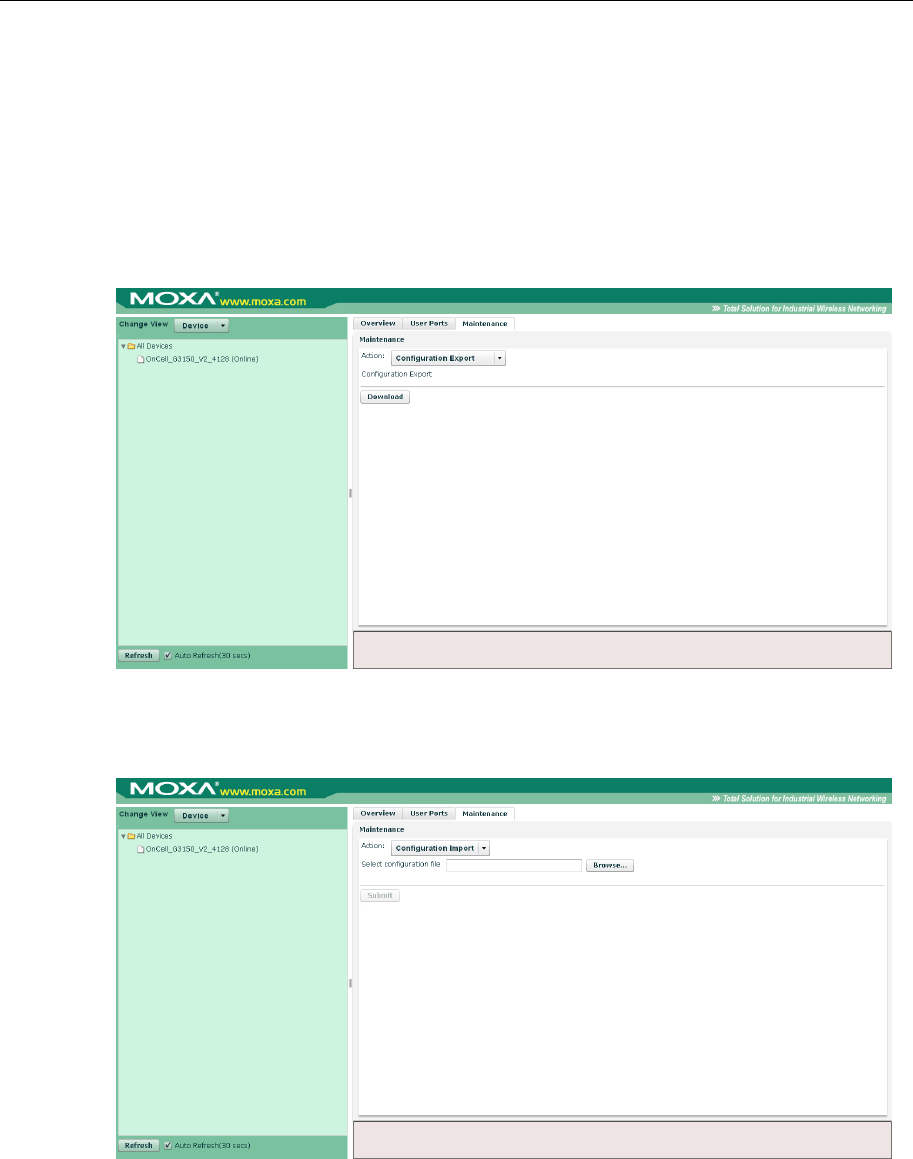

Configuration Export

To save all the configurations to a xml file format. Select Configuration Export and then click

Download.

Configuration Import

You will be able to import this configuration file to another host and use the same OnCell Central

settings in the other host.
