OnCell G3111/G3151/G3211/G3251 Series User’s Manual System Management Settings

12-12

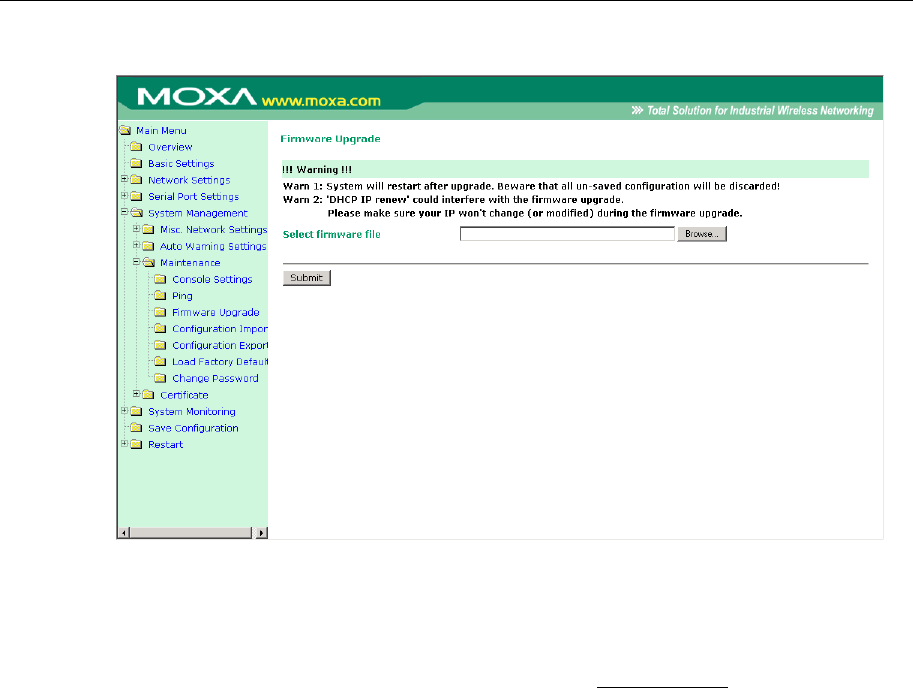

Firmware Upgrade

The OnCell G3111/G3151/G3211/G3251’s firmware can be upgraded though the web console,

serial console, or through OnCell Search Utility. If you have made any changes to your

configuration, remember to save the configuration first before upgrading the firmware. Please refer

to Save Configuration later in this chapter for more information. Any unsaved changes will be

discarded when the firmware is upgraded. To upgrade the firmware, simply enter the file name and

click Submit. The latest firmware can be downloaded from www.moxa.com
