OnCell G3111/G3151/G3211/G3251 Series User’s Manual System Management Settings

12-21

Routing

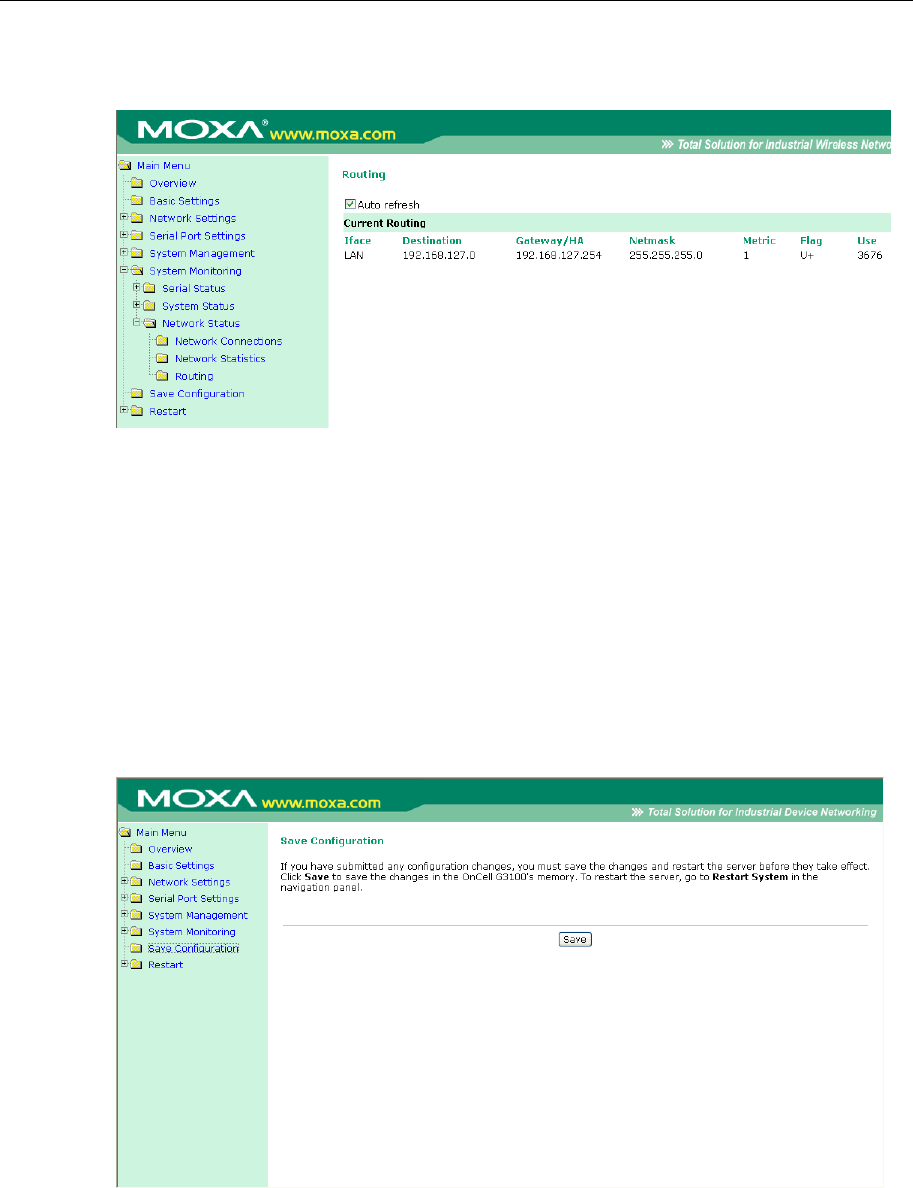

Go to Routing under System Status to display the routing information.

Possible flags include:

U: route is up

D: route is down

G: use gateway

+: default gateway

T: static route

H: target is a host

Save Configuration

Go to Save Configuration and then click Save to save your submitted configuration changes to the

OnCell G3111/G3151/G3211/G3251’s flash memory. The configuration changes will be effective

when the OnCell G3111/G3151/G3211/G3251 is restarted. If you do not save your changes before

restarting, they will be discarded.
