OnCell G3111/G3151/G3211/G3251 Series User’s Manual Software Installation/Configuration

13-7

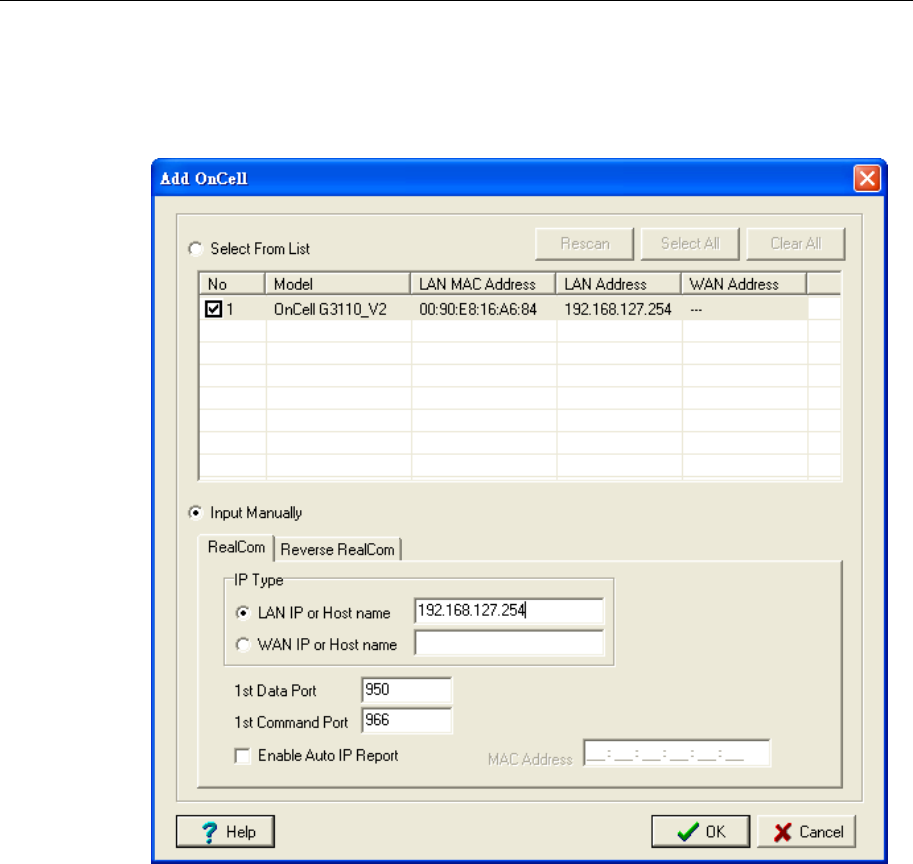

Alternatively, for Real COM mode, you can select Input Manually and then manually enter the

OnCell G3111/G3151/G3211/G3251’s IP Type. To do this, select LAN type, followed by 1st

Data Port, and 1st Command Port for the COM ports that will be mapped to. Click OK to

proceed to the next step. Note that the Add OnCell page supports FQDN (Fully Qualified

Domain Name), in which case the IP address will be filled in automatically.
