OnCell G3111/G3151/G3211/G3251 Series User’s Manual Software Installation/Configuration
13-12

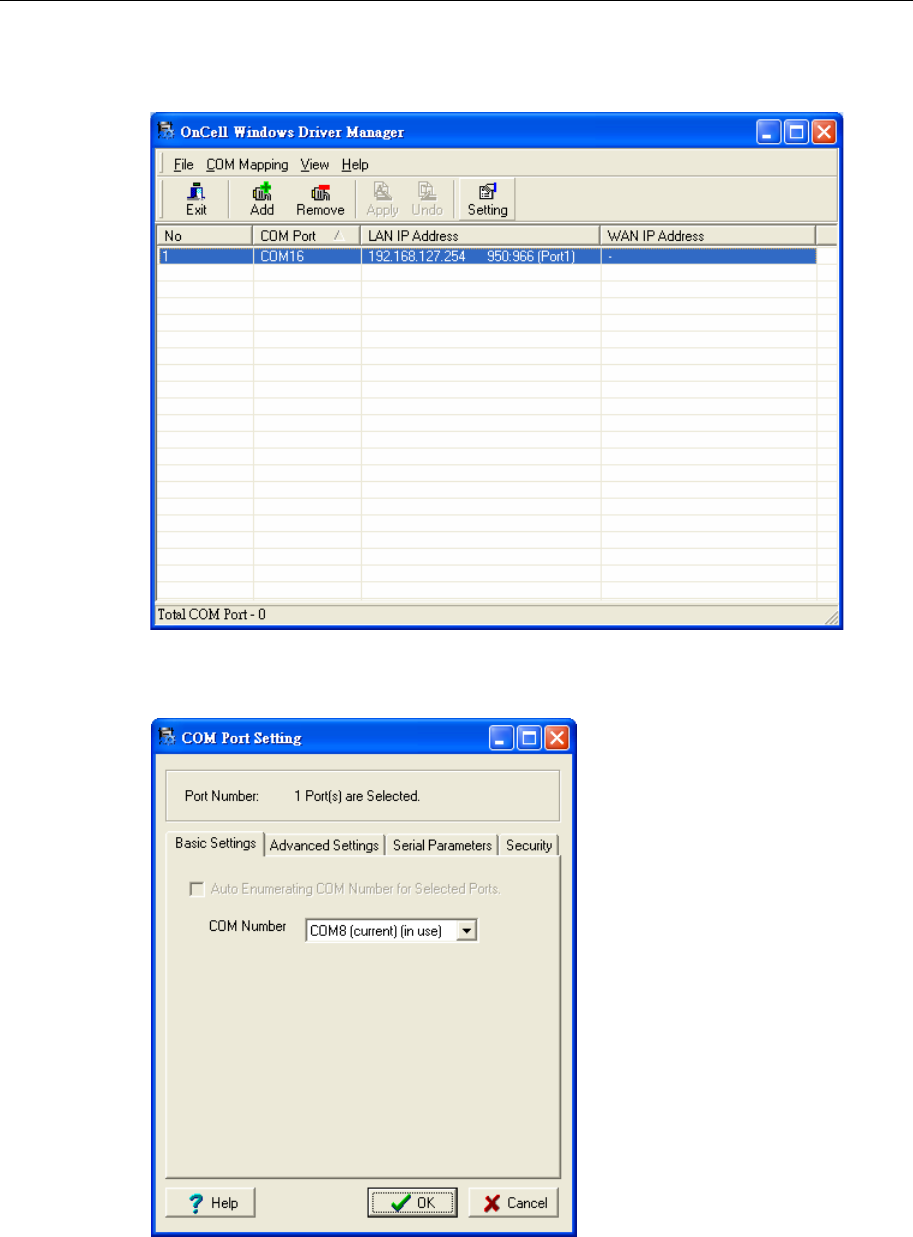

To re-configure the settings for a particular serial port on the OnCell
G3111/G3151/G3211/G3251, select the row corresponding to the desired port, and then click
the Setting icon.
7. On the Basic Setting page, use the COM Number drop-down list to select a COM number to
be assigned to the OnCell G3111/G3151/G3211/G3251’s serial port that is being configured.
Note that ports that are “in use” will be labeled accordingly.
