OnCell G3111/G3151/G3211/G3251 Series User’s Manual Software Installation/Configuration

13-23

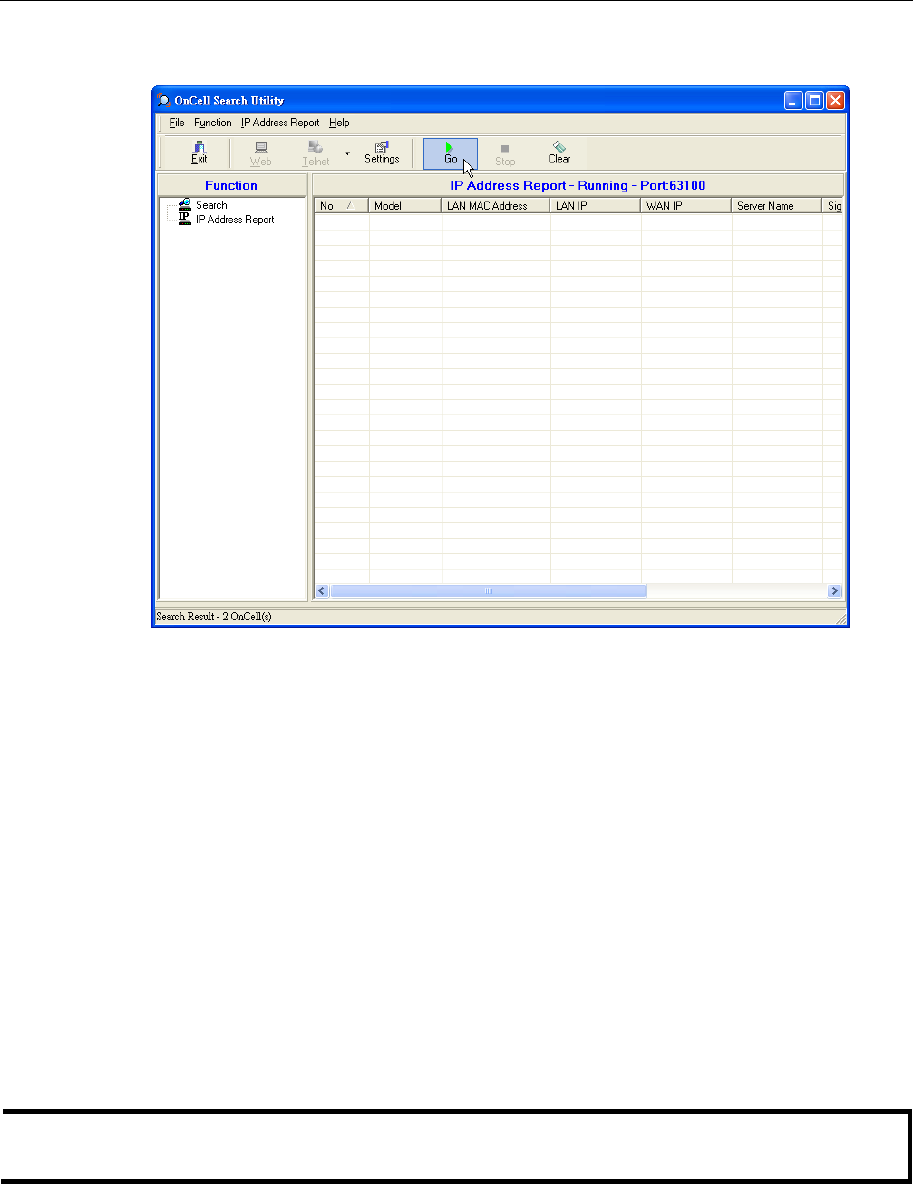

5. Click the Go icon to complete the configuration. Please refer to Chapter 5, Using the Web

Console, for information on how to use the IP Address Report.

Moxa OnCell Linux Real TTY Driver

Basic Procedure

To map an OnCell G3111/G3151/G3211/G3251 serial port to a Linux host’s tty port, follow these

instructions:

1. Set up the OnCell G3111/G3151/G3211/G3251. After verifying that the IP configuration works

and you can access the OnCell G3111/G3151/G3211/G3251 (by using ping, telnet, etc.),

configure the desired serial port on the OnCell G3111/G3151/G3211/G3251 to Real COM

mode.

2. Install the Linux Real TTY driver files on the host.

3. Map the OnCell serial port to the host’s tty port.

Hardware Setup

Before proceeding with the software installation, make sure you have completed the hardware

installation. Note that the default IP address for the LAN interface of OnCell

G3111/G3151/G3211/G3251 is 192.168.127.254.

NOTE

After installing the hardware, you must configure the operation mode of the serial port on your

OnCell G3111/G3151/G3211/G3251 to Real COM mode.
