OnCell G3111/G3151/G3211/G3251 Series User’s Manual Configuring OnCell Central Software
10-13

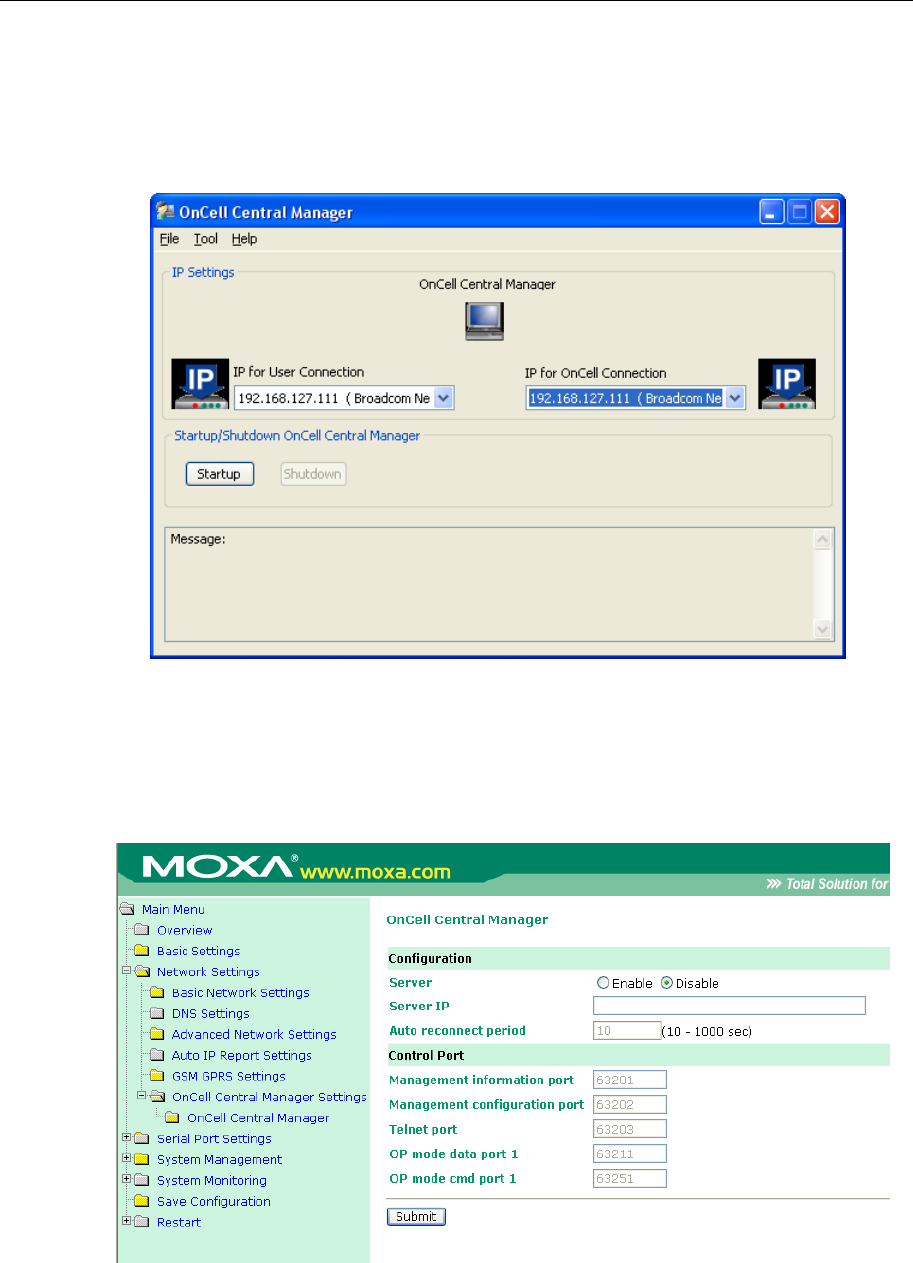

9. When all the configurations have been completed, return to the OnCell central main page. If
your OnCell Central Server has two LAN cards, you may need to select the IP that needs to
pass through the OnCell Connection and User Connection, and then click Startup.
For security reasons, we use 2 LAN cards for the server, one for the private IP domain in User
Connection, and another for the public IP domain in OnCell Connection. (OnCell Central must
be accessible from the public IP domain)
Step 2: OnCell Device Web Console Settings
OnCell Central Settings
From the left navigation panel, click Network Settings OnCell Central Settings OnCell
Central Server to configure the OnCell Central Settings. The configuration items are shown
below:
