Specification Guide

1
www.moxa.com
[e-mail]
Industrial Ethernet Solutions
Interface
Ethernet Ports: 1
Connectors: Duplex LC Connector or Simplex LC Connector (WDM-type only)
Note: WDM-type SFP modules must be used in pairs (e.g., SFP-1GXXALC and SFP-1GXXBLC)
Optical Fiber
Environmental Limits
Operating Temperature:
Standard Models: 0 to 60°C (32 to 140°F)
Wide Operating Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Regulatory Approvals
Safety: UL, TÜV
Warranty
Warranty Period: 3 years
Details: See www.moxa.com/warranty

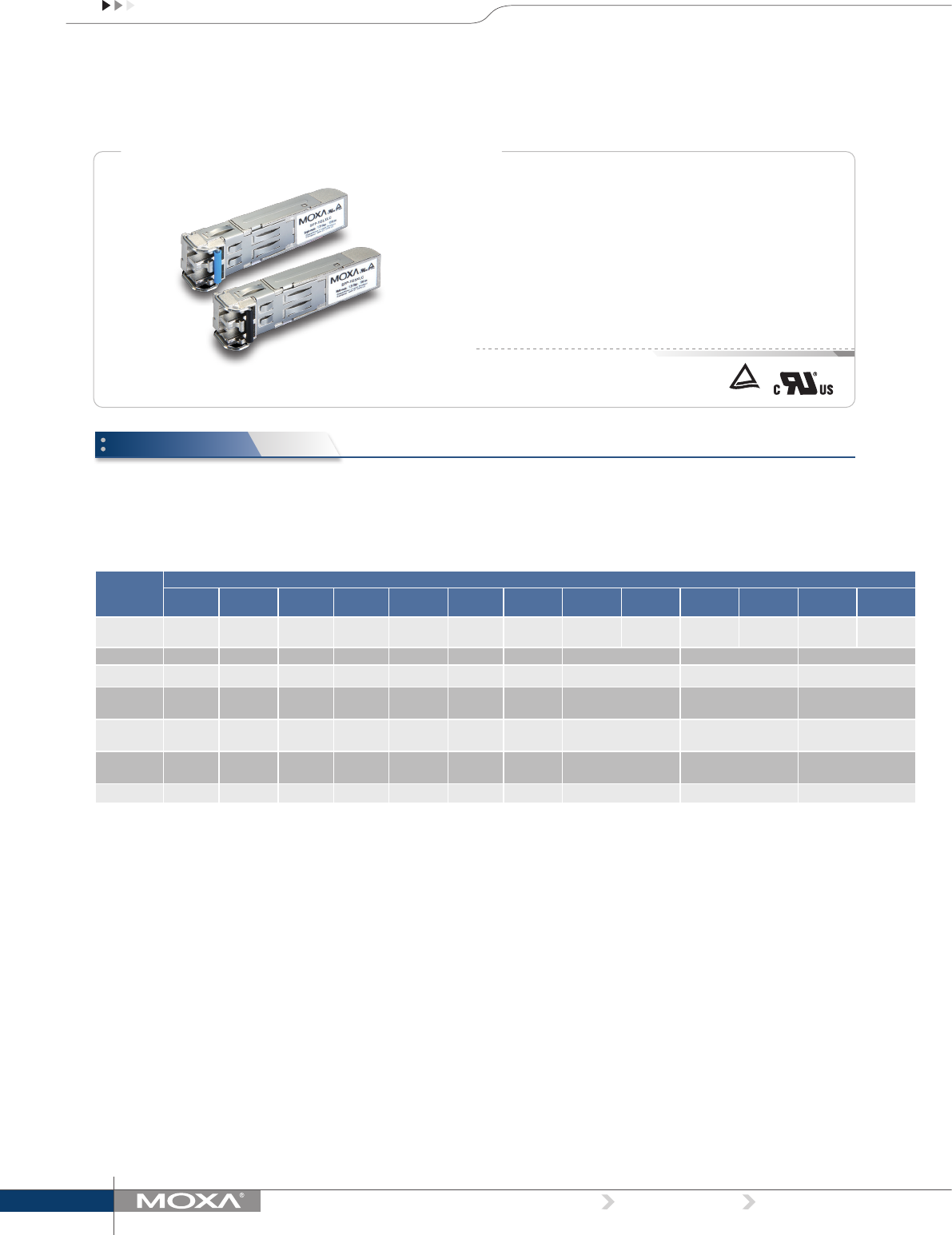

SFP-1G Series
Specifications
Compliant with IEEE 802.3z ›
Differential LVPECL inputs and outputs ›
Single 3.3 V power supply ›
TTL signal detect indicator ›
Hot pluggable ›
Class 1 laser product, complies with EN60825-1 ›
EN : 60825
Gigabit Ethernet
SFP-SX SFP-LSX SFP-LX SFP-LH SFP-LHX SFP-ZX SFP-EZX SFP-10A SFP-10B SFP-20A SFP-20B SFP-40A SFP-40B
Wave-
length
850 nm 1310 nm 1310 nm 1310 nm 1310 nm 1550 nm 1550 nm
TX 1310 nm,
RX 1550 nm
TX 1550 nm,
RX 1310 nm
TX 1310 nm,
RX 1550 nm
TX 1550 nm,
RX 1310 nm
TX 1310 nm,
RX 1550 nm
TX 1550 nm,
RX 1310 nm
Max. TX
-4 dBm -1 dBm -3 dBm -2 dBm 1 dBm 5 dBm 5 dBm -3 dBm -2 dBm 2 dBm
Min. TX
-9.5 dBm -9 dBm -9.5 dBm -8 dBm -4 dBm 0 dBm 0 dBm -9 dBm -8 dBm -3 dBm
RX
Sensitivity
-18 dBm -19 dBm -20 dBm -23 dBm -24 dBm -24 dBm -30 dBm -21 dBm -23 dBm -23 dBm
Link
Budget
8.5 dB 10 dB 10.5 dB 15 dB 20 dB 24 dB 30 dB 12 dB 15 dB 20 dB
Typical
Distance
550 m
a
2 km
b
10 km
c
30 km
c
40 km
c
80 km
c
110 km
c
10 km
c
20 km
c
40 km
c
Saturation
0 dBm -3 dBm -3 dBm -3 dBm -3 dBm -3 dBm -3 dBm -1 dBm -1 dBm -1 dBm
1G-port Gigabit Ethernet SFP modules
a. 50/125 μm, 400 MHz * km or 62.5/125 μm, 500 MHz * km @ 850 nm multi-mode fiber optic cable
b. 62.5/125 μm, 750 MHz * km @ 1310 nm multi-mode fiber optic cable
c. 9/125 μm single-mode fiber optic cable
