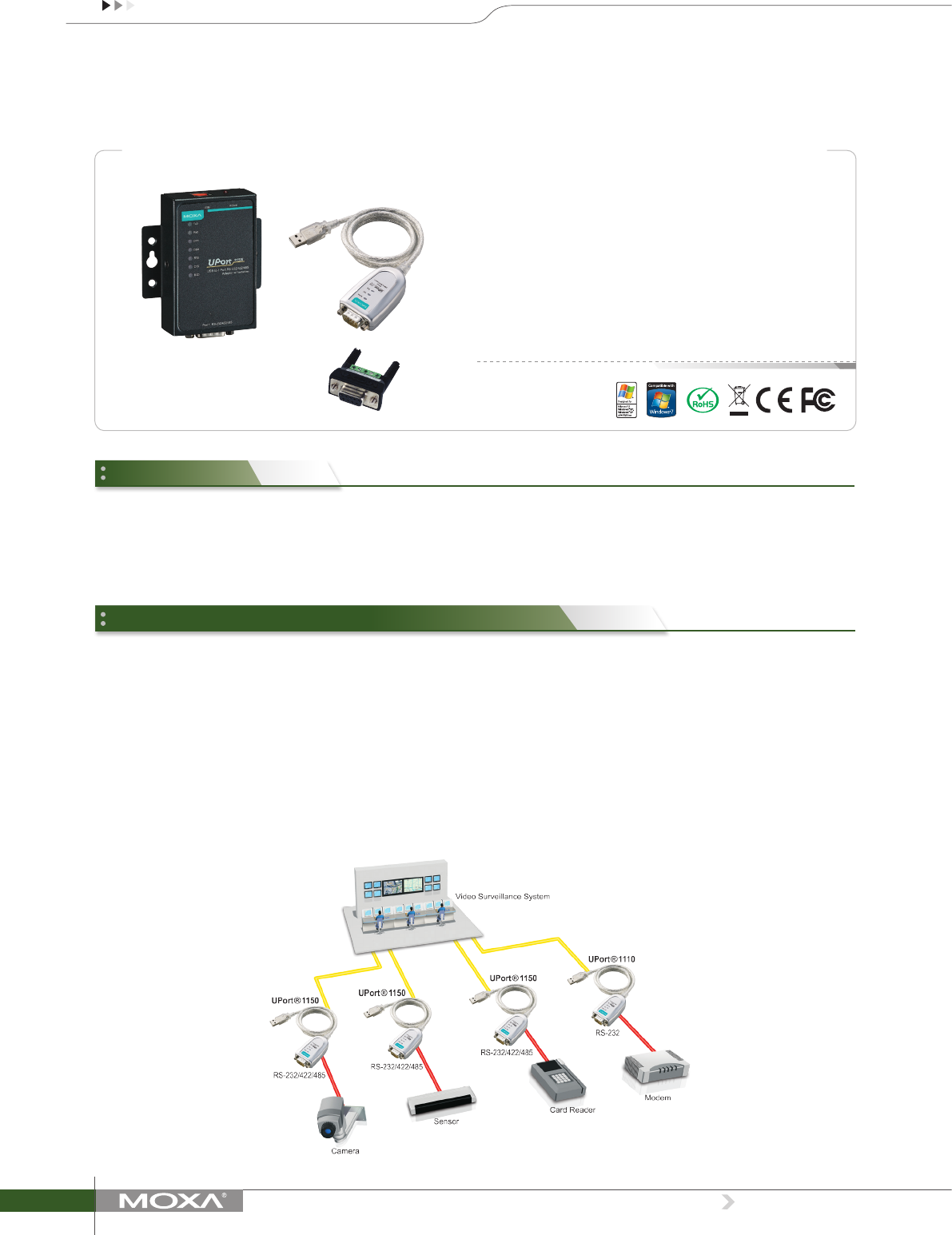

Datasheet

Industrial USB
1
www.moxa.com
UPort
®
1100 Series
1-port RS-232, RS-422/485, and RS-232/422/485 USB-to-serial converters
Terminal Block Adapter for the
UPort® 1130/1130I/1150/1150I
The UPort® 1100 series USB-to-serial converters are the perfect
accessory for laptop computers that do not have a serial port, and they
are essential for engineers who need to connect different serial devices
in the field or separate interface converters for devices without a
standard COM port or DB9 connector. The UPort® 1110 converts from
USB to RS-232, the UPort® 1130/1130I from USB to RS-422/485, and
the UPort® 1150/1150I from USB to RS-232/422/485. All products
are compatible with new and legacy serial devices, and can be used
with mobile, instrumentation, and point-of-sale applications.
The most basic video surveillance setup consists of a single camera
connected directly to a monitor and recording device. However, many
businesses require video surveillance on a larger scale requiring
a dedicated management system. Existing management systems
often lack device-port versatility, making converters a necessity
when connecting different devices. Management systems that need
USB-to-serial converters for serial devices such as card readers,
modems, video cameras, and sensors, now have a simple solution.
Moxa’s UPort® 1100 converters provide plug-and-play serial device
connectivity without having to install new adapter boards, which
usually requires opening of computer/server chassis. Also, a unique
driver allows the UPort® 1100 to retain COM port numbers when they
have been unplugged and then reconnected again, even into a new
USB port.
UPort® 1100 convenient characteristics include:
• USB 2.0 compatibility
• RS-232 or RS-422/485 interface
• Stability and reliability
• Cost-effective
• Plug-and-play
• Easy to use
Overview
Typical Application—Surveillance Monitoring System
› Compatible with USB 2.0
› 12 Mbps USB data rate
› 921.6 kbps maximum baudrate for super fast data transmission
› Drivers provided for Windows, WinCE, and Linux
› Mini DB9 female to terminal block adapter for easy wiring
› LEDs for indicating USB and TxD/RxD activity
› 2 kV electrical isolation (UPort 1130I and 1150I)
