Software Features
Protocols ICMP, IP, TCP, UDP, DHCP, Telnet, DNS, SNMP, HTTP,
SMTP, SNTP, SSH, SSL, HTTPS
Utilities Windows utility for Windows 98/ME/2000/XP/2003
Configuration Web browser, serial/telnet console, or Windows utility
Power Requirements
Power Input 12-48 VDC
Power Consumption 685 mA @ 12V; 184 mA @ 24V, 340 mA @ 24V
Mechanical Specifications
Material SECC sheet metal (1 mm)
Environmental
Operating Temperature 0 to 60°C (32 to 140°F), 5 to 95%RH
Storage Temperature -20 to 85°C (-4 to 185°F), 5 to 95%RH
Regulatory Approvals
EMC FCC Class A, CE Class A
Safety UL, CUL, TÜV
Serial Port Pin Assignments

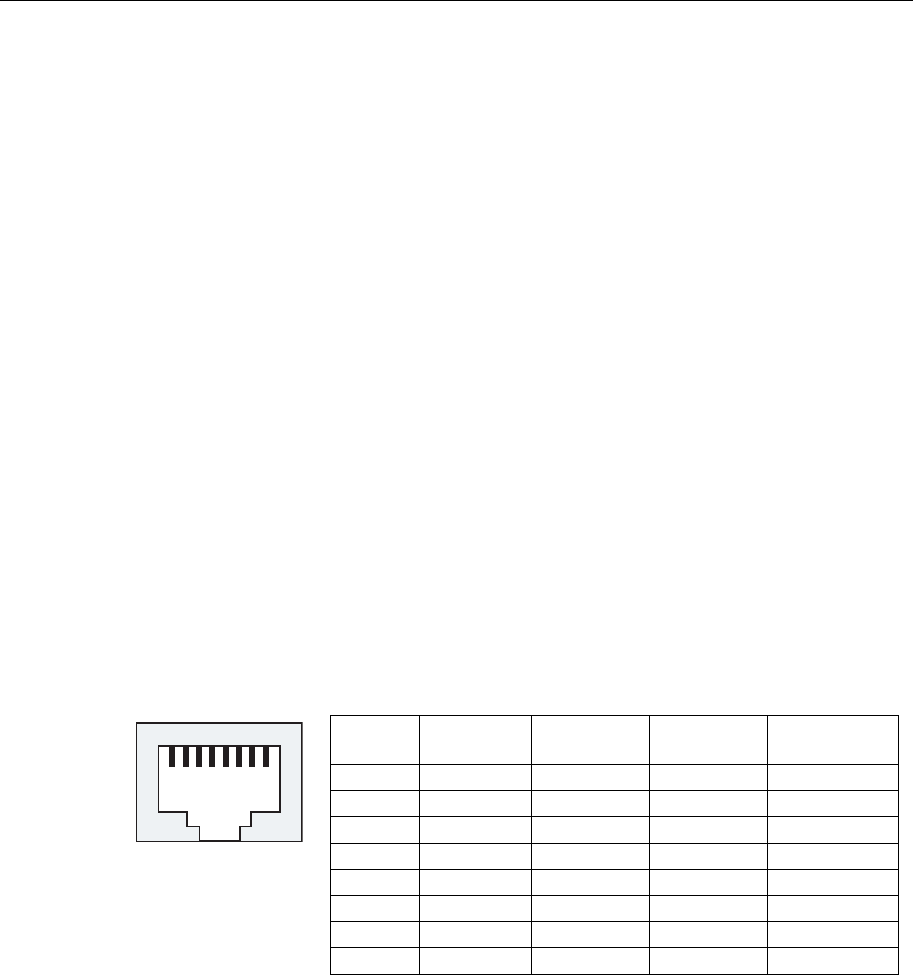

8-pin RJ45 Port RS-232/422/485 Pinouts
1 8
Pin RS-232 RS-422
RS-485
(4-wire)
RS-485
(2-wire)
1 DSR --- --- ---
2 RTS TxD+ TxD+ ---
3 GND GND GND GND
4 TxD TxD- TxD- ---
5 RxD RxD+ RxD+ Data+
6 DCD RxD- RxD- Data-
7 CTS --- --- ---
8 DTR --- --- ---
