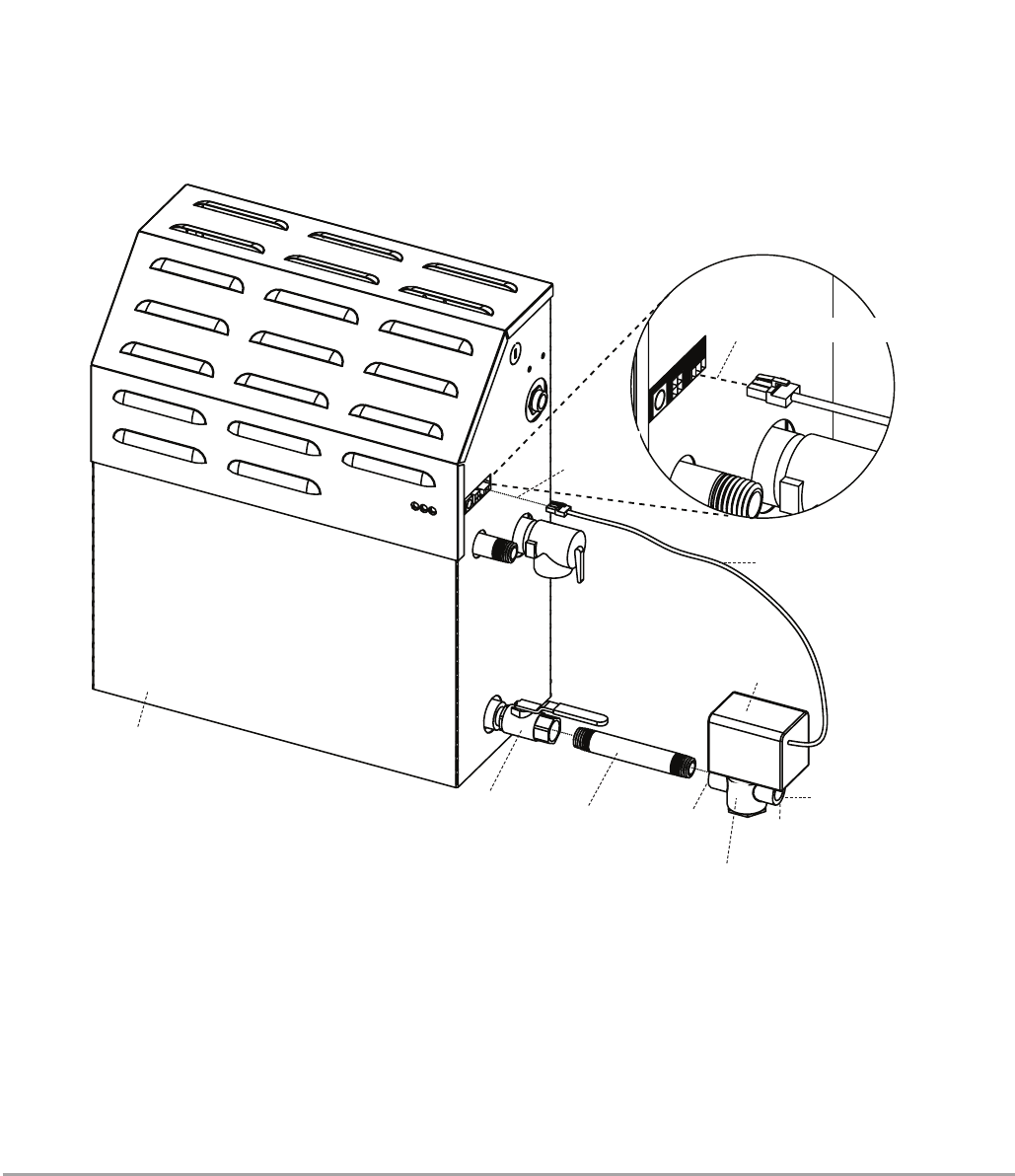

Autoflush Installation Sheet

AutoFlush Cord
AutoFlush Valve
3 Pin Connector for AutoFlush
AutoFlush
Cord
Connector
Drain Valve
(shown in the correct open position)
DO NOT REMOVE THIS DRAIN VALVE
Steam Generator
Nipple copper or
brass nipple
1/2" NPT x 90mm or
1/2" NPT x 3-1/2"or
longer
(not supplied)
End "B"
End "A"
Plumb to
Drain Line
Arrow indicates correct
direction of flow
PUR 100200 Rev 10.15
OPERATION
The optional AutoFlush
®
System feature automatically drains the Mr.Steam
®
system following each use. A time delay allows the water to cool down
(about two hours) before it drains resulting in a safe and gentle operation.
BOX CONTENTS:
• AutoFlush System Valve with Cord
• Installation Instructions.
ASSEMBLY OF OPTIONAL AUTOFLUSH
®
SYSTEM
mr
.
steam
®
Optional Autoflush
®
System
