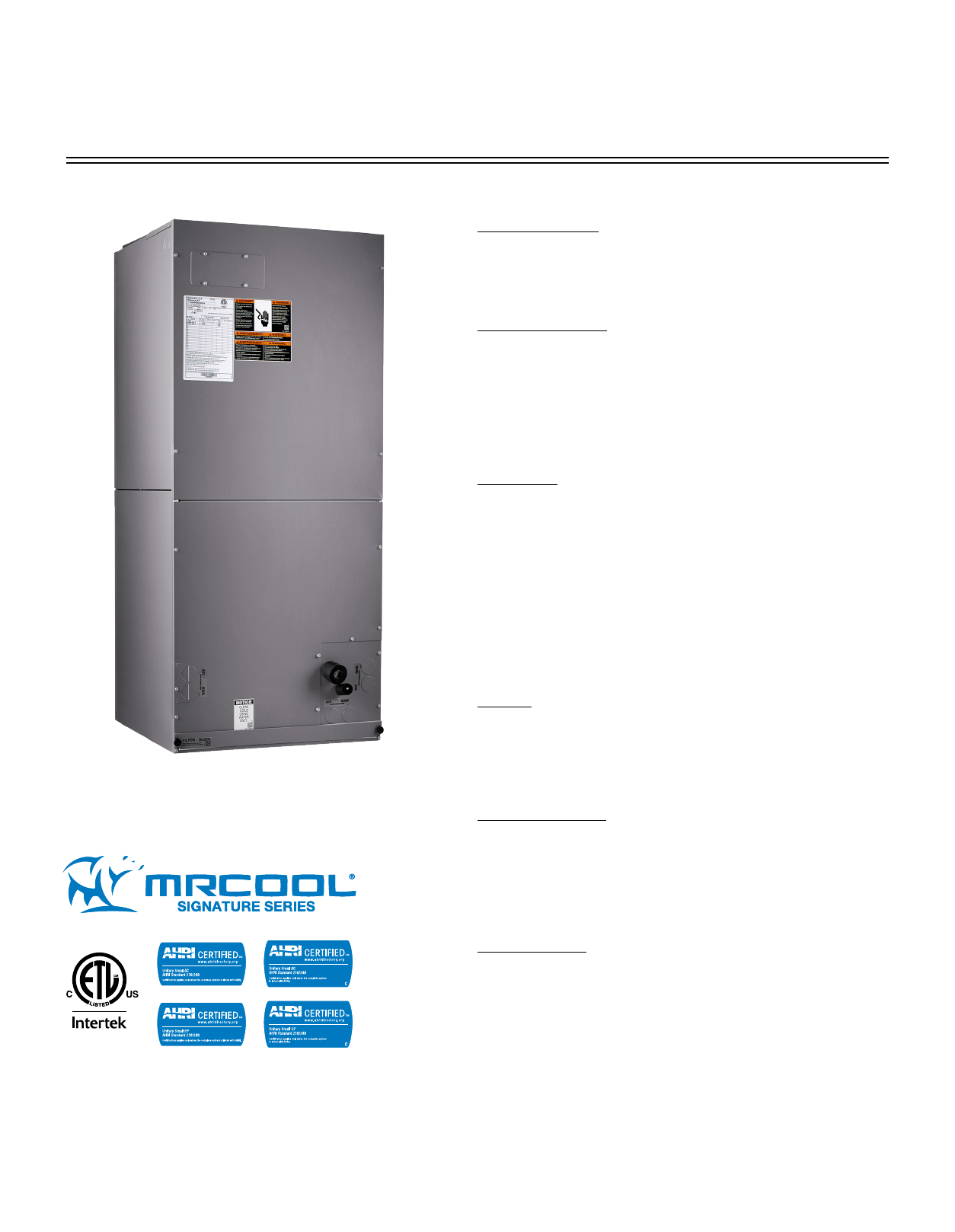

MAHM*TA

PRODUCT SPECIFICATIONS

ENHANCED AIR HANDLER

APPLICATION

• 2 - 5 ton systems

• Sequenced for demand management

• External access to heater circuit breakers

INSTALLATION

• One piece design

• Smaller proﬁle for closet applications

• Multi-position = Upﬂow/ Horizontal Left/ Horizontal Right/ Counter

Flow (with kit)

• Approved for installation in manufactured housing and mobile

homes

CABINET

• Foil faced insulation for enhanced indoor air quality

• Double hemmed technology for increased structural rigidity

• Improved gasketing on doors to reduce air leakage

• Filter rack with thumb screws for easy access and removal

• Polymer plugs on drain locations for easy installation

• Baked polyester paint ﬁnished over galvanized steel for maximum

durability

• High strength/heat resistant/corrosion resistance SMC drain pans

• Antimicrobial treated drain pan to resist mold and mildew growth

• Meets 2 % or less air leakage

COILS

• Coolguard™ total corrosion protection technology designed coil

• Enhanced tube-and-ﬁn coil design featuring MHT™ Technology

• Lanced ﬁns for maximum heat transfer

• Factory tested for leakproof construction

COMPONENTS

• Eﬃcient Constant Torque blower motors

• Standard transformer and blower relay

• Field installed 2.5, 5, 7.5, 10, 12.5, 15, and 20 kW electric heat kits with

ease of assembly quick wire connectors

• Built-in indoor time delay for increased eﬃciency and comfort

WARRANTY

10-year limited warranty on all parts, extended warranty available.

Page 1

Summary of content (6 pages)

PAGE 1
MAHM*TA PRODUCT SPECIFICATIONS ENHANCED AIR HANDLER APPLICATION • 2 - 5 ton systems • Sequenced for demand management • External access to heater circuit breakers INSTALLATION • One piece design • Smaller proﬁle for closet applications • Multi-position = Upﬂow/ Horizontal Left/ Horizontal Right/ Counter Flow (with kit) • Approved for installation in manufactured housing and mobile homes CABINET • • • • • • Foil faced insulation for enhanced indoor air quality Double hemmed technology for increased str
PAGE 2
ENHANCED AIR HANDLER MAHM*ETA MODEL NUMBER GUIDE M AH M 024 E T A COMPANY M= MR COOL PRODUCT TYPE 2ND GENERATION AH = AIR HANDLER AIR FLOW METERING DEVICE O = ORIFICE T = TXV C = CAPILLARY P = PISTON MOTOR C = PSC E= ECM BTU 24, 30, 36, 42, 48, 60 PHYSICAL Model Volts/Hz/Phase Max. Elec.
PAGE 3
ENHANCED AIR HANDLER MAHM*ETA ACCESSORIES DESCRIPTION Down-ﬂow Kit WHERE USED KIT NUMBER 24, 30 MSHDK1830 36, 42, 48, 60 MSHDK3660 ELECTRIC HEAT Electric Heat Kits with Circuit Breaker 5 kW MHK05H 30A 18, 24, 30, 36, 42, 48, 60 7.5 kW 10 kW MHK07H 45A 18, 24, 30, 36, 42, 48, 60 MHK10H 60A 24, 30, 36, 42, 48, 60 15 kW MHK15H 60A + 25A 30, 36, 42, 48, 60 20 kW MHK20H 60A + 50A 48, 60 * Circuit breaker must match rated “Max C/B Size”; replace breaker as necessary. mrcool.
PAGE 4
ENHANCED AIR HANDLER MAHM*ETA ELECTRICAL Heating Capacity (240V) Model MAHM24ETA MAHM30ETA MAHM36ETA MAHM42ETA MAHM48ETA MAHM60ETA Nominal Heater SizekW kW Btuh Min. Circuit Ampacity Blower Amps 208V 1 240V 2 1 Max. Circuit Breaker Size 208V 2 1 240V 2 1 0 0 0 5.1 5.1 15 15 5 4.8 16400 27 30 30 30 7.5 7.5 25600 39 44 40 45 10 9.6 32700 48 55 50 60 0 0 0 5.1 5.1 15 15 5 4.8 16400 27 30 30 30 7.5 7.5 25600 39 44 40 45 4.1 4.
PAGE 5
ENHANCED AIR HANDLER MAHM*ETA BLOWER Model MAHM24ETA Motor Size (hp) 1/2 Blower Size (in.) 10 x 8 Speed Tap 1/2 10 x 8 1/2 10 x 8 3/4 12 x 10 1 12 x 10 1 12 x 10 0.4 0.
PAGE 6
ENHANCED AIR HANDLER MAHM*ETA DIMENSIONS (IN.
