50

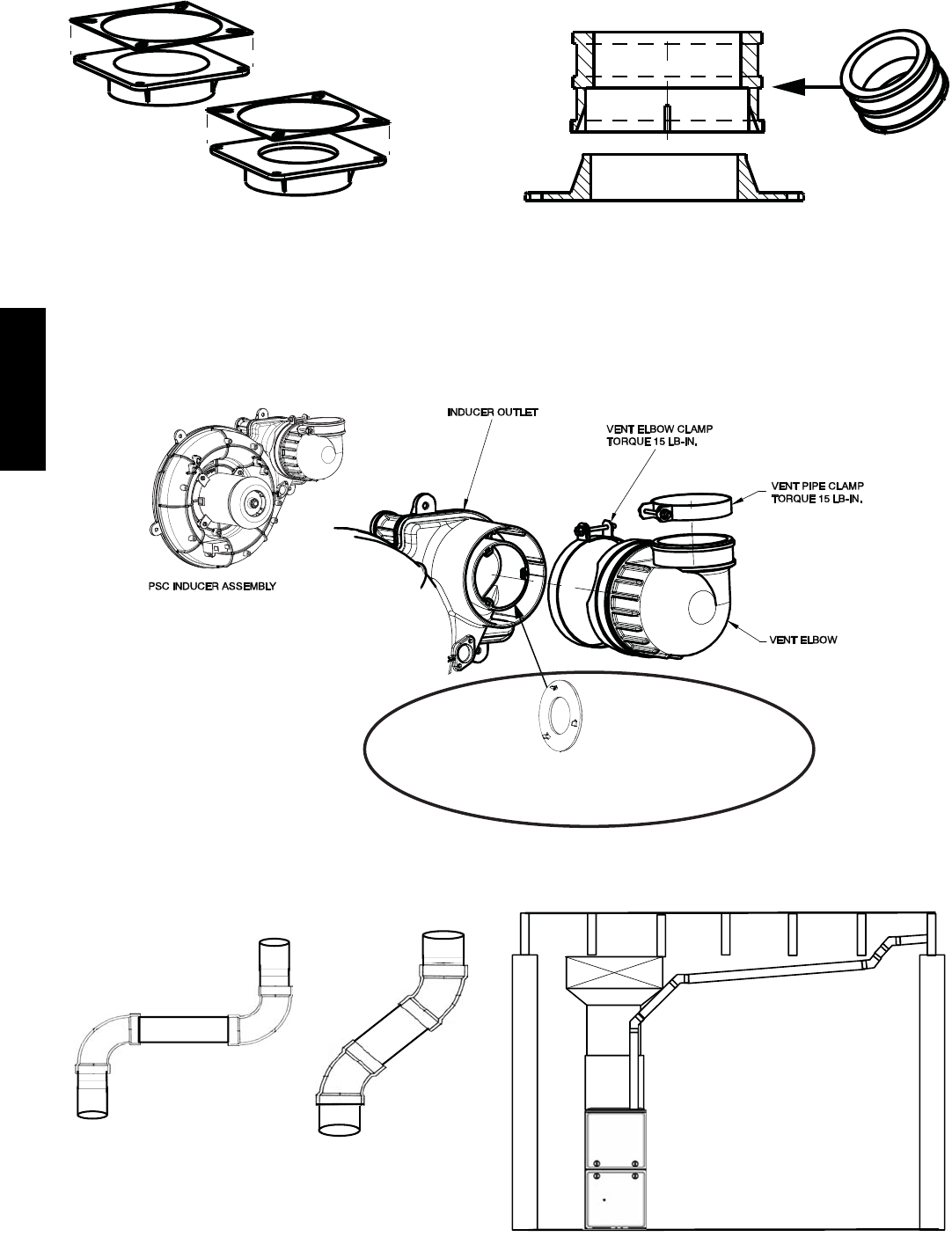

Attach gaskets to vent pipe and

combustion air adapters.

Vent Coupling and Adapter

A13074

Fig. 38 -- Vent Coupling and Adapter with Gaskets

TABS ON THE INDUCER OUTLET RESTRICTOR SNAP

INTO THE SLOTS AT THE OUTLET OF THE INDUCER

FOR USAGE:

SEE MAXIMUM EQUIVALENT VENT LENGTH TABLE

(10FT. (3.1 M) OF VENT OR LESS ONLY)

A170006

Fig. 39 -- Inducer Vent Elbow

Avoid short horizontal osets with 90

deg. Elbows. Short osets can be

dicult to slope and may trap con-

densate.

Use 45 deg. Elbows where

possible, to ensure conden-

sate drainage.

Slope vent pipe back to the

furnace at least ¼” per foot

A14546

Fig. 40 -- Near Furnace Vent Connections

PG95SAS
