Introductions
2-8 2-9

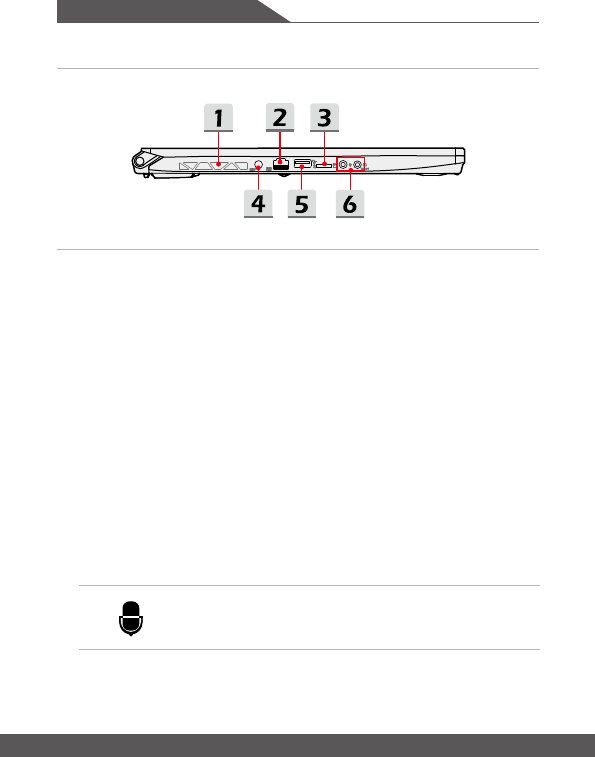

Left Side View
1. Ventilator
The ventilator is designed to cool the system. DO NOT block the ventilator for air
circulation.
2. RJ-45 Connector
The Ethernet connector, with optionally supported transmitting rate of 10/100/1000
megabits per second, is used to connect a LAN cable for network connection.
3. Card Reader
The built-in card reader supports various types of memory cards. Check the
Specifications for details.
4. Power Connector
This connector is to connect the AC/DC adapter and supply power for the notebook.
5. USB 3.1 Gen 2 Port
USB 3.1 Gen 2, the SuperSpeed USB 10Gbps, delivers the higher interface speeds
for connecting various devices, such as storage devices, hard drives, or video
cameras, and offers more advantages over high-speed data transferring.
6. Audio Port Connectors
Make high quality sound blaster with stereo system.
Microphone
Used for an external microphone.
