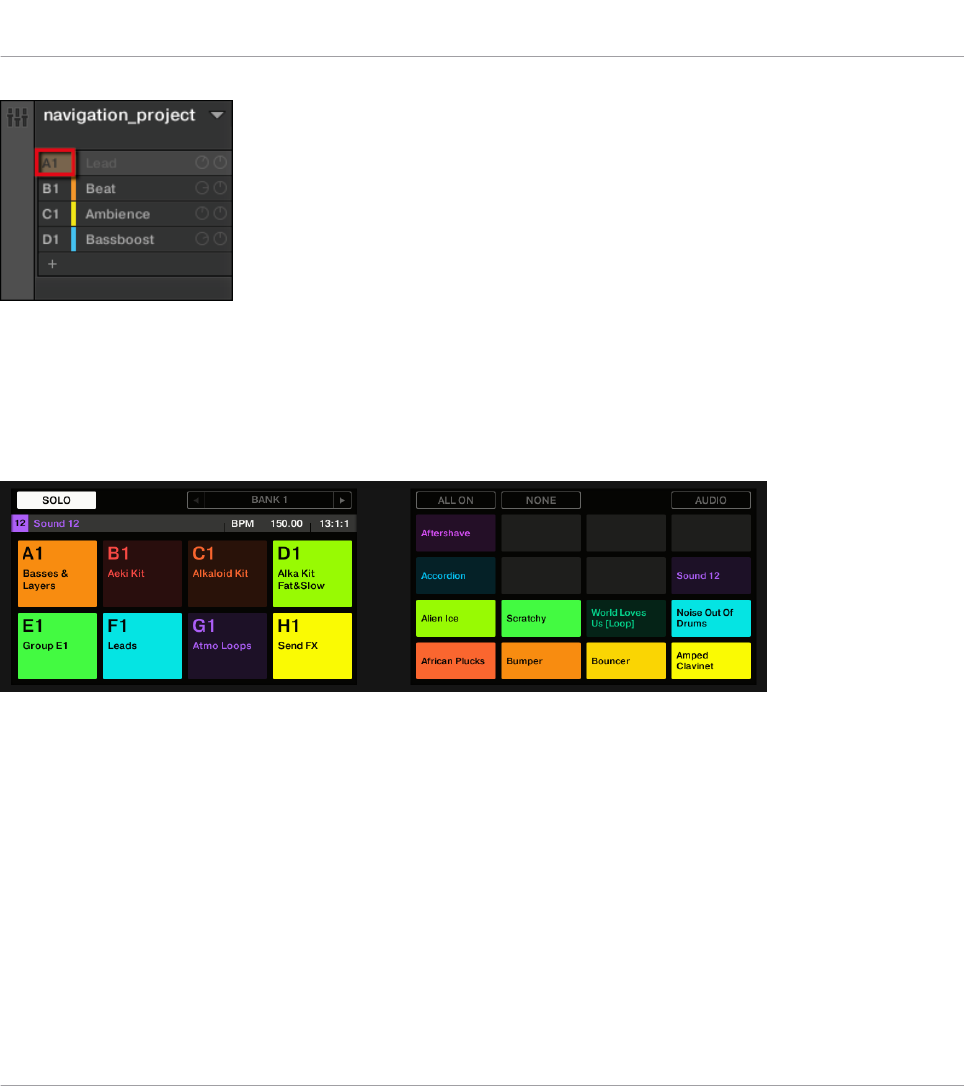

Muting a Group.
►
To unmute the Group, click the Group index again.
5.2.2.1 Mute and Solo on Your Controller
To enter solo mode on your controller:
The Solo mode on the controller.
1. Press and hold SOLO to enter Solo mode. You can also press SOLO + Button 1 to pin this
mode and make it permanent.
2. Solo Sounds by pressing their pads, and solo Groups of the current Group bank by press-
ing their Group buttons. Press Button 3 and 4 to switch to the previous/next Group bank,
respectively.
To enter mute mode on your controller:
Playing on Your Controller
Playing Tools
MASCHINE STUDIO - Manual - 193
