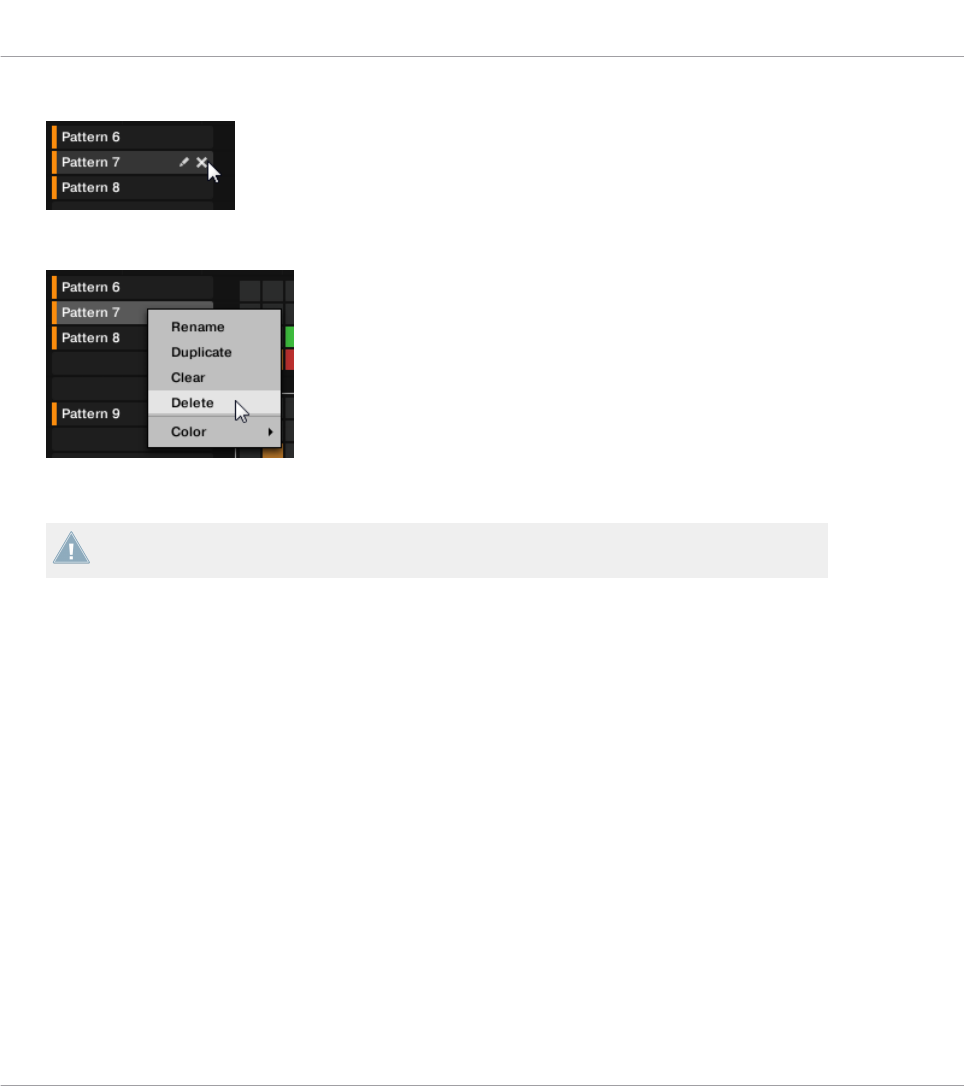

3. On the right of the Pattern slot, click the little cross icon:
You can also right-click ([Ctrl]-click on Mac OS X) the Pattern slot or the corresponding
cell in the pad grid and select Delete from the context menu:
→
The Pattern is deleted.
If the Pattern was referenced by Clips in the Arranger, these Clips will be removed as well!
7.7.4.1 Deleting Patterns on Your Controller
To delete a Pattern on your controller:
1. Press and hold PATTERN to enter Pattern mode.
2. Press Button 7 and 8 to select the desired Pattern bank.
3. Press the pad corresponding to the Pattern you want to delete.
4. Press Button 6 (DELETE).
→
The Pattern is deleted.
Alternate Method
1. Press and hold PATTERN to enter Pattern mode.
2. Press Button 7 and 8 to select the desired Pattern bank.
3. Press ERASE + the pad corresponding to the Pattern you want to delete.
→
The Pattern is deleted.
