In this mode the desk’s input strips (1) represent all Groups of your Project, while the output
strip at the far right (2) represents the Master/Cue channel. At the top of the Mixer you see the
headers of all your Groups and of the Master/Cue channel (3). The focused channel is highligh-
ted.

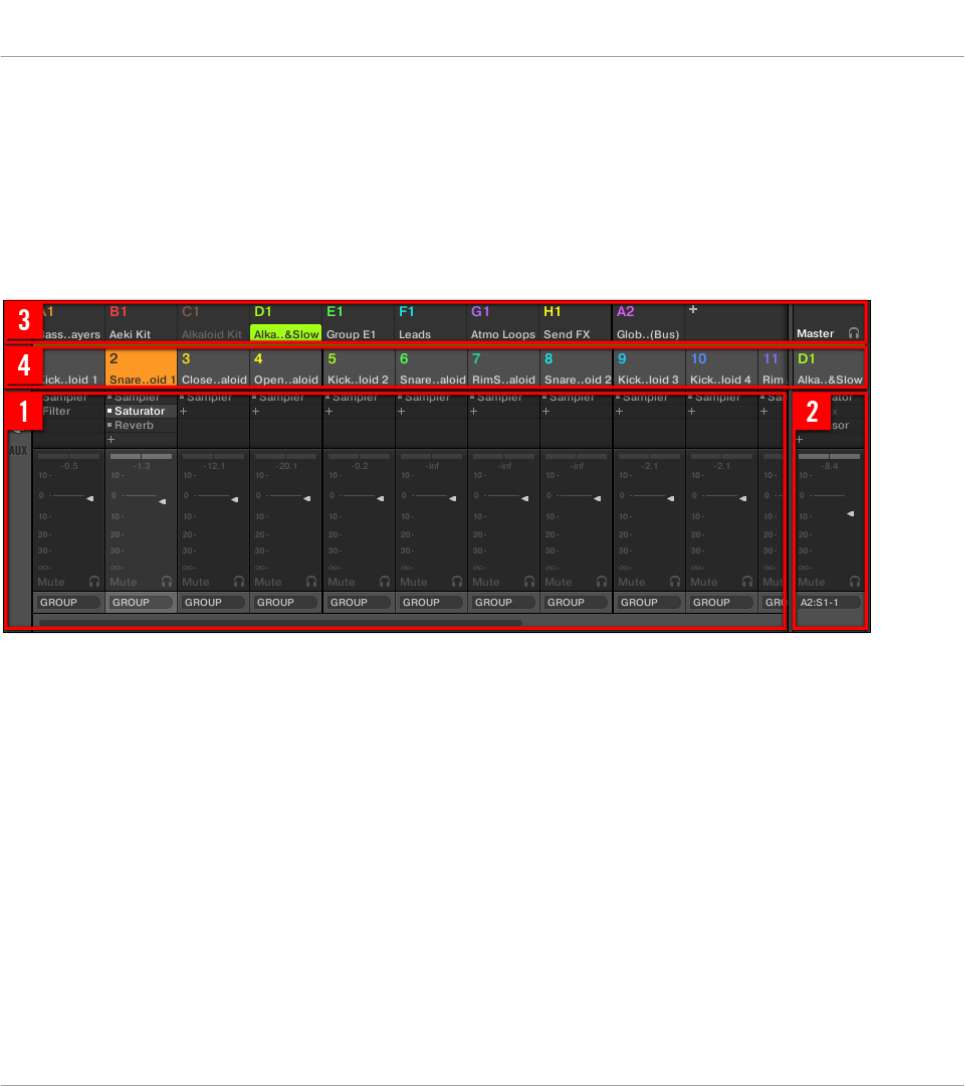

Mixer Displaying the Sound Level
The Mixer can alternatively display the Sounds slots of a particular Group:
In this mode the desk’s input strips (1) represent all Sounds of the focused Group, while the
output strip at the far right (2) represents that focused Group. At the top of the Mixer you see
two rows:
▪ The first row (3) contains the headers of all your Groups and of the Master/Cue channel.
The header of the focused Group (or of the Master/Cue at the far right) is highlighted.
▪ The second row (4) contains the headers of the Sound slots in the focused Group. The
header of the focused Sound slot (or of the parent Group at the far right) is highlighted.
Switching the Mixer between Group and Sound Level
At any time you can switch between the display modes:
Controlling Your Mix
The Mixer
MASCHINE STUDIO - Manual - 401
