Navigating Parameter Pages

In some situations, the selected Plug-in or Channel properties provide more parameters than

the display(s) of your controller and the Parameter area in the software can show at once. Ex-

amples of this are the parameters for the Groups’ or Sounds’ Output properties and those for

the Sampler Plug-in. In these cases, the parameters are divided into several Parameter pages

that you can easily navigate with the hardware and software.

In the software the names of the available pages are displayed at the top of the Parameter

area. The name of the page currently displayed is highlighted.

►

Click the desired page name at the top of the Parameter area to show the corresponding

Parameter page.

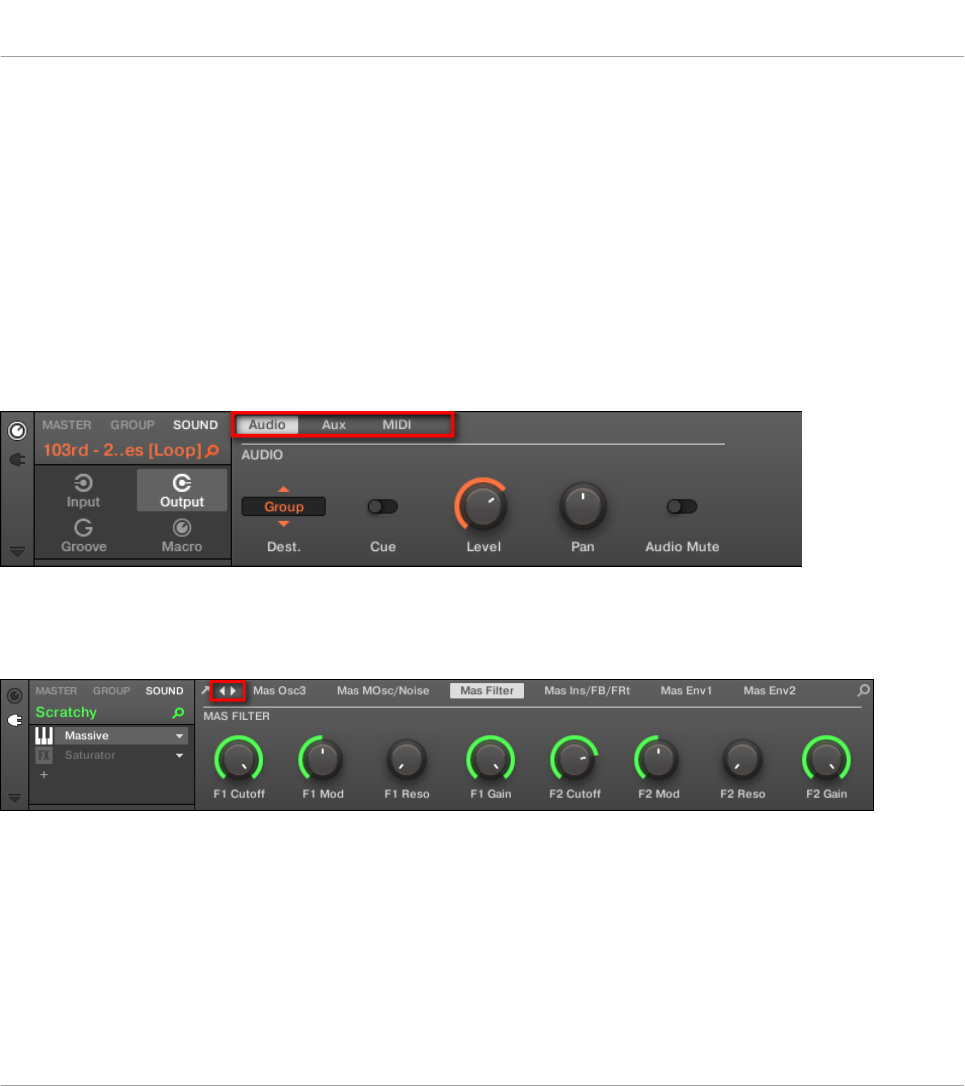

The Parameter pages of the Sound’s Output properties: Audio (currently displayed), Aux, and MIDI.

If all page names cannot be displayed at once at the top of the Parameter area, two small ar-

rows are displayed on the left to click through the pages:

►

Click the left or right arrow to access additional pages.

Adjusting the Parameters

In the Parameter area, each parameter includes a control element and a label. Following types

of control elements are available:

Basic Concepts

Common Operations

MASCHINE STUDIO - Manual - 42
